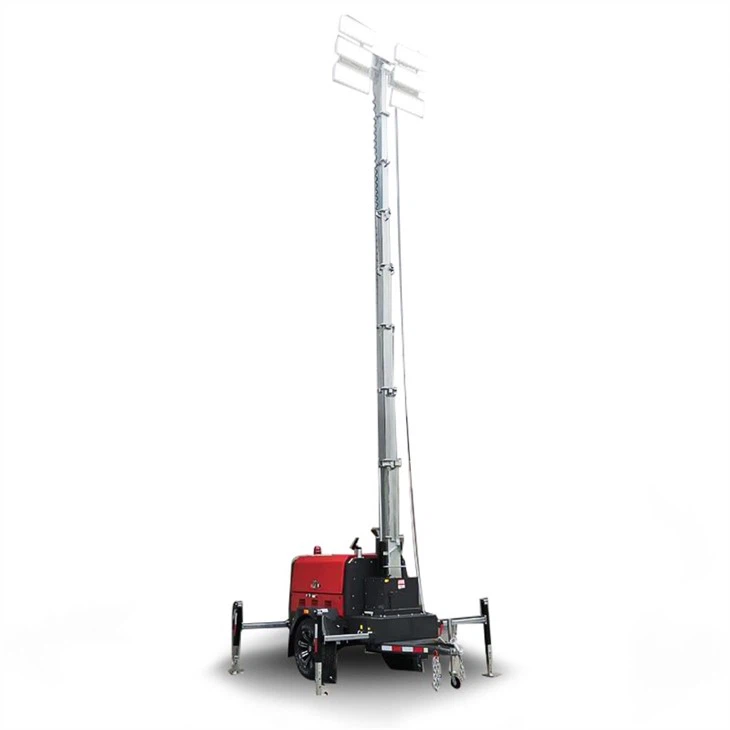

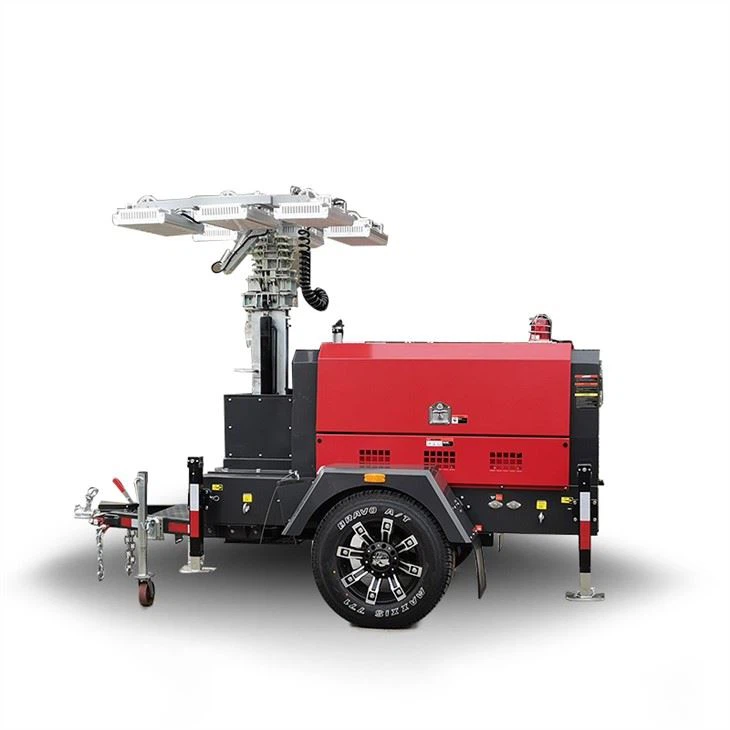

Product Name: Light Tower With 20KW Perkins Genset
General Info:
50Hz,3Ph,AC230/400V
Engine: Perkins 404D-22TG,20kW/25kVA
Alternator: mecc alte LT3N-160/4,IP21,Burshless
Lamp: 4 × 350W LED,IP65,210000Lm
Socket: 2 × 16A,AC230V
Controller: DeepSea DSE6020
Rotation: Electric,360° Horizontal,90° Vertical
Mast: Steel Q235,Square Telescopic type,9 m,9 Sections,
Hydraulic Lifting,360 Rotation,100kg Load,130kph Windproof
Trailer: EU Standard,Ball Hitch,Single Axle,Manual Outrigger
Consumption: 1L/h
Running Time: 100 hours
Data sheet:
| Base System: | Picture: | |||||||||
| Name: | Diesel Light Tower |  | ||||||||
| Model: | BGL-25000P | |||||||||
| Material: | Steel Q235 | |||||||||
| Powder: | Outdoor Type | |||||||||
| Dimension: | Length×Width×Height | |||||||||
| Transport: | 2600×1700×2300 (mm) | |||||||||
| 8.5×5.6×7.5 (ft) | ||||||||||
| Operate: | 3700×2700×9250 (mm) | |||||||||
| 12.1×8.9×30.5 (ft) | ||||||||||
| Weight: | 1650kg / 3638lb | |||||||||
| Rated Power: | 20kW/25kVA | |||||||||
| Work Temperature: | -30℃~50℃ / -22℉~122℉ | |||||||||
| Engine System: | Alternator System: | |||||||||
| Engine: | Perkins | Alternator: | STAMFORD | |||||||
| 404D-22TG | Brushless | |||||||||
| Water-cooled | EBS(PMG) | |||||||||
| Displacement: | 2.216L | Insullation Class: | Class H | |||||||
| Cyinder No.: | 4 | Protection Class: | IP23 | |||||||
| Frequency: | 50Hz | Voltage: | 230/400V | |||||||
| RPM: | 1500 | Voltage Control: | AVR | |||||||
| Phase: | Three | Decibel Level: | 65dB at 7m | |||||||
| Consumption: | 1L/h / 0.26gal/h | |||||||||
| Fuel Tank: | 100L / 26.4gal | |||||||||
| Light System: | Control System: | |||||||||
| LED Light: | 4 × 350W | Genset Controller: | DeepSea / ComAp | |||||||
| LED flood light | DSE6020 / MRS10 | |||||||||
| Outdoor Type | Detection & Protection: | Frequency | ||||||||
| Protection Class: | IP65 | Speed | ||||||||
| Lumens: | 210000Lm | Voltage | ||||||||
| Beam angle: | 20° 40° 60° 90° 110° | Oil Pressure | ||||||||
| Voltage: | AC230V | Water Temperature | ||||||||
| Running Time: | 100 hours | Timer | ||||||||
| Socket: | 2 × 16A | Whole Machine: | Power Switch | |||||||
| Emergency Stop | ||||||||||
| Mast Up-down | ||||||||||
| Each Light on-off | ||||||||||
| Mast System: | Trailer System: | |||||||||
| Body: | Steel Q235 | Standard: | US / AU / EU | |||||||
| Hot Dip Galvanized | Tow Hitch: | 50mm / 2'' Ball Type | ||||||||
| Fastener: | Stainless steel 304 | Trailer Light: | 7 Pin | |||||||
| Wire Rope: | Stainless steel 316 | Jockey Wheel: | 200mm / 8'' | |||||||
| 8mm | Axle: | Single | ||||||||
| Type: | Square | Suspension | ||||||||
| Telescopic | Bump Brake | |||||||||
| Height： | 9m / 30ft | Tire: | 2 × 215/75R15 | |||||||
| Section: | 9 | Wheel Chock: | 2 | |||||||
| Rotation: | Horizontal 360° Electric | Forklift Hole: | 2 | |||||||
| Vertical 90° Electric | Outrigger: | 4 × Manual | ||||||||
| Spring Cable: | Power Supply | Galvanized | ||||||||
| Lifting Method: | Hydraulic | Fire Extinguisher: | 1 | |||||||
| Recommended Loading: | 5kg ~ 100kg / 11lb ~ 220lb | Warranty: | 1 year | |||||||
| Windproof: | 130km/h / 91mph | |||||||||
| Accessories: | ||||||||||
| Operation Manual | Parts Manual | |||||||||
| Controller Manual | Allen Wrench | |||||||||
| Hex Wrench | ||||||||||
