HiSOLO Solar Surveillance Trailer
video

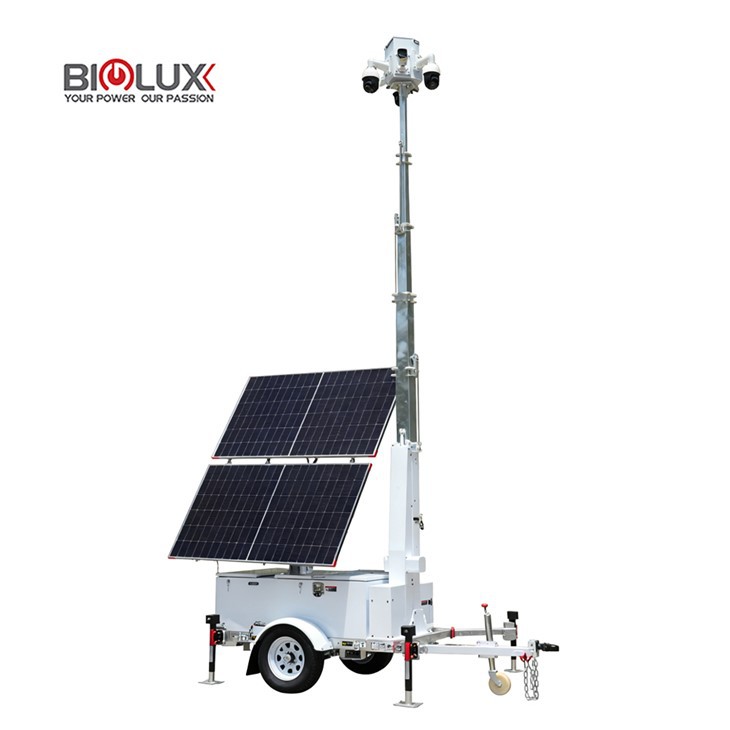

HiSOLO Solar Surveillance Trailer

HiSOLO Solar Surveillance Trailer

Mobile solar trailer with cameras for security monitoring.
BIGLUX Solar CCTV Trailer – cutting-edge off-grid surveillance for 24/7 remote security. Solar-powered, no grid needed.

Key Features
✔ 2×600W dual-panel solar with 350° rotation for max efficiency
✔ Large-capacity battery for continuous operation
✔ Tamper-proof internal wiring
✔ Mobile design – quick deploy for sites/events
✔ All-weather durable build

Applications
Ideal for construction, traffic, events, perimeter security – eco-friendly, cost-effective anywhere.

banner1



Video Description

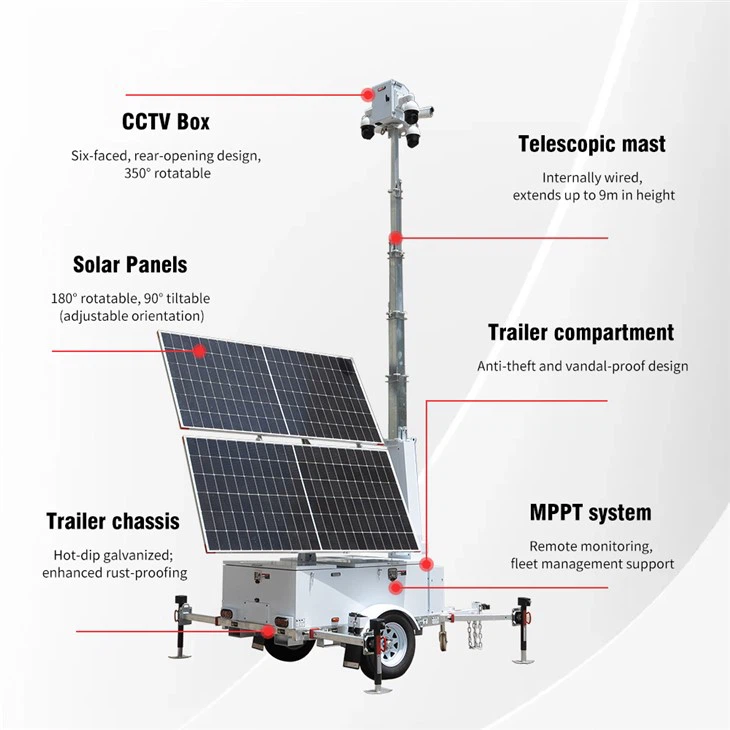

Products Details



solar panels

Solar Panels



The solar panels support 180° full rotation and 30–60° electric tilt, with a power rating of up to 1200W. These designs allow the panels to adapt to the sun's movement for better energy capture.



They offer three main benefits: ✔ flexible adjustment to align with sunlight changes, ✔ maximized sun exposure for efficient energy generation, and ✔ time-saving deployment to speed up on-site setup.

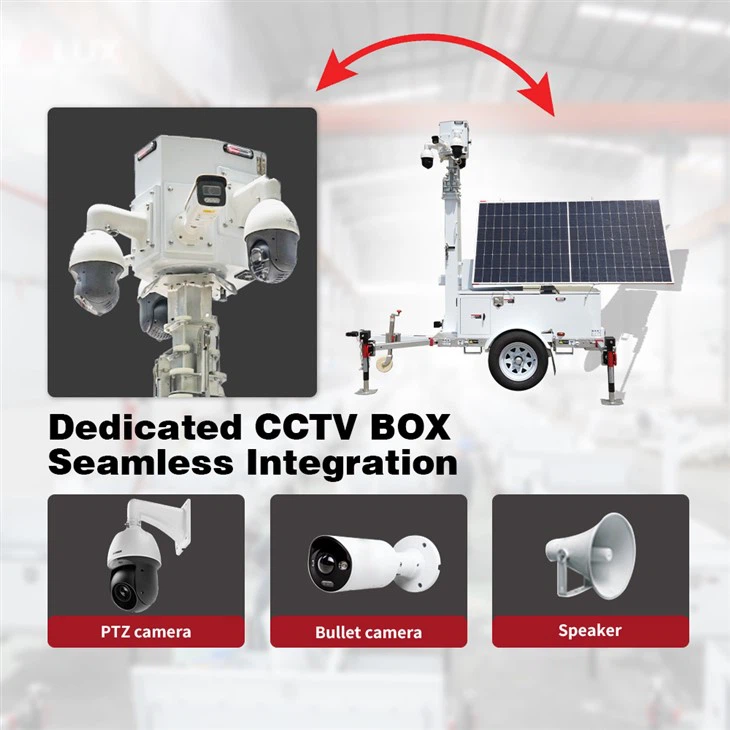

CCTV Box



The CCTV Box has a six-sided structure, removable mounting plate, 360° rotatable design, rear-opened access, internal cooling fan, and 4 strobe lights. These designs optimize its adaptability and functionality for surveillance needs.



It offers two main benefits: faster on-site deployment (streamlining setup workflows) and easy installation & maintenance (simplifying camera mounting/upkeep via the removable plate and rear access).

cctv box
mast

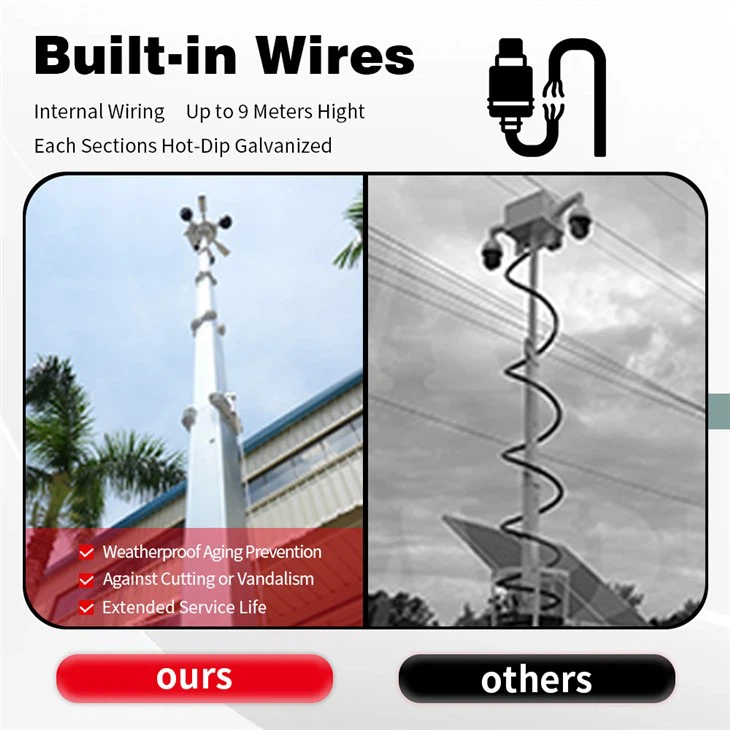

Built - in Wires



The telescopic mast comes with built-in wires (internal wiring), supports up to 9 meters in height, and has each section treated with hot-dip galvanization. These structural designs lay a solid foundation for its durability and functionality.



It delivers three critical benefits: ✔ weatherproof aging prevention, ✔ resistance against cutting or vandalism, and ✔ extended service life-all enabled by its galvanized sections and internal wiring protection.

Hot - Dip Galvanized



The solar surveillance tower's key parts use hot-dip galvanization, which is 3x thicker than electroplating. This design ensures high corrosion resistance against outdoor wear and rust.



It offers three key benefits: ✔ zero maintenance needed, ✔ extended service life, and ✔ all-weather performance-adapting to harsh conditions like humidity, salt spray, and extreme temperatures.

hot-dip galvanized



waterproof

Waterproof



The solar tower has waterproof performance (IP65 waterproof equivalent), along with enhanced joint sealing and blind hole fasteners-these designs reinforce its water-resistant structure for outdoor use.



It offers three core benefits: ✔ 100% moisture protection to block water intrusion, ✔ an all-weather sealed cabin for consistent internal dryness, and ✔ the ability to keep running in downpours, ensuring stable operation in wet conditions.

Oversized Trunk



The mobile solar trailer comes with an oversized trunk (extra large trunk) that boasts 8 square ft of capacity, offering sufficient storage space for on-site essentials.



It provides two practical benefits: ✔ holds tools and cameras to support daily operational needs, and ✔ has reserved expansion space to accommodate potential future storage requirements.

trunk



Products Specifications



Product HiSOLO Mobile Solar Surveillance Trailer Tower
Models BL2P-G7MHSS0B BL2P-L7MHSS0B BL2P-G9EHSS0P BL2P-L9EHSS0P
Solar Panel Type Monocrystalline Silicon Type, Dual Facial, 180° Manual Rotating, 30°-60° Electric tilting
Solar Panel Wattage 2*450W 2*600W
MPPT Controller 50A MPPT (With Remote Battery Monitoring) 150/45A MPPT (With Remote Battery Monitoring)
Battery GEL, 9600Wh, DC 24V LFP, 8038Wh, DC 24V GEL, 12000Wh, DC 24V LFP, 14336Wh, DC 24V
Battery AC Charger
1.5kW, AC110V/230V
CCTV Box
350° Rotatable, 6-sided, back-opened, included 8-Port POE Switch. CCTV mounting box for surveilance system
Optional Accessories Cameras, 4G Router, NVR, Loud Speaker
Cables Buit-in composite cable: Network Cable+Power Cable
Telescopic Mast 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring
Trailer Type US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings
Outrigger 4pcs Manual Outriggers, Foldable,Y Shape
Working Temperature -20°C-55℃
Solar Charging Time 9 Hours (Theoretical) 10 Hours (Theoretical)
Battery Backup Time 72 Hours Under 90W Load 72 Hours Under 133W Load
Extended Dimensions
3522*3246*7232mm
4037*3246*9350mm
Retracted Dimension
3522*1630*2880mm
4037*1630*3100mm
Gross Weight 1000KG 1100KG
Container Loading 20GP:6 units, 40HQ: 14 Units
Application Scenarios Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.

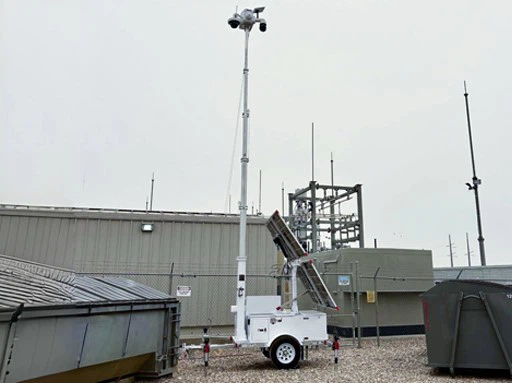

Customer Cases

case 5



case 6



case 40



case 7
case 30
case 2







Packaging & Logistics

packaging1
packaging2
packaging3
packaging4

Packaging Details

* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.

 * Bulk Shipping: 6 units can be loaded into a 20GP container. 14 units fit perfectly into a 40HQ container.



Logistics Highlights

We handle every step with precision-from using forklifts to load the well-packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.



Company Profile



10Years of experience
in Mobile Power Solutions

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.



These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.



As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

BIGLUX

10+
Industry Experience
10K+
Factory land occupation
500+
Global Projects
200+
Monthly Capacity
1
2
5
6


Certificate Of Honor




1ISO

ISO

CE-BIGLUX 1

CE

DOT

DOT

4CR

CR

5WARRANTY

Certificate name





Customer Visit




customer visit - 2

customer visit - 1

customer visit - 4



customer visit - 3
customer visit - 5

customer visit - 7


FAQ



Can I customize the LOGO and colors on your solar trailer?

+

-

Yes, Color and LOGO can be customized.

Does the solar trailer include a CCTV system?

+

-

No, most clients prefer buying a bare trailer and installing cameras locally. our CCTV box is equipped with POE for easy connection, with DC 24V/48V & AC 220V/110V options, it ensures you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you need.

Do you provide shipping services?

+

-

Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.

What's the production lead time?

+

-

Standard sample is generally shipped within 2 weeks, batch orders are generally about 1 month. Please kindly consult our sales team for specifics.

How many cameras can the solar trailer hold?

+

-

Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.

Is there a lithium battery option?

+

-

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

+

-

2-year standard warranty. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
