HiSKID-II Solar CCTV Camera Tower
video
HiSKID-II Solar CCTV Camera Tower

HiSKID-II Solar CCTV Camera Tower

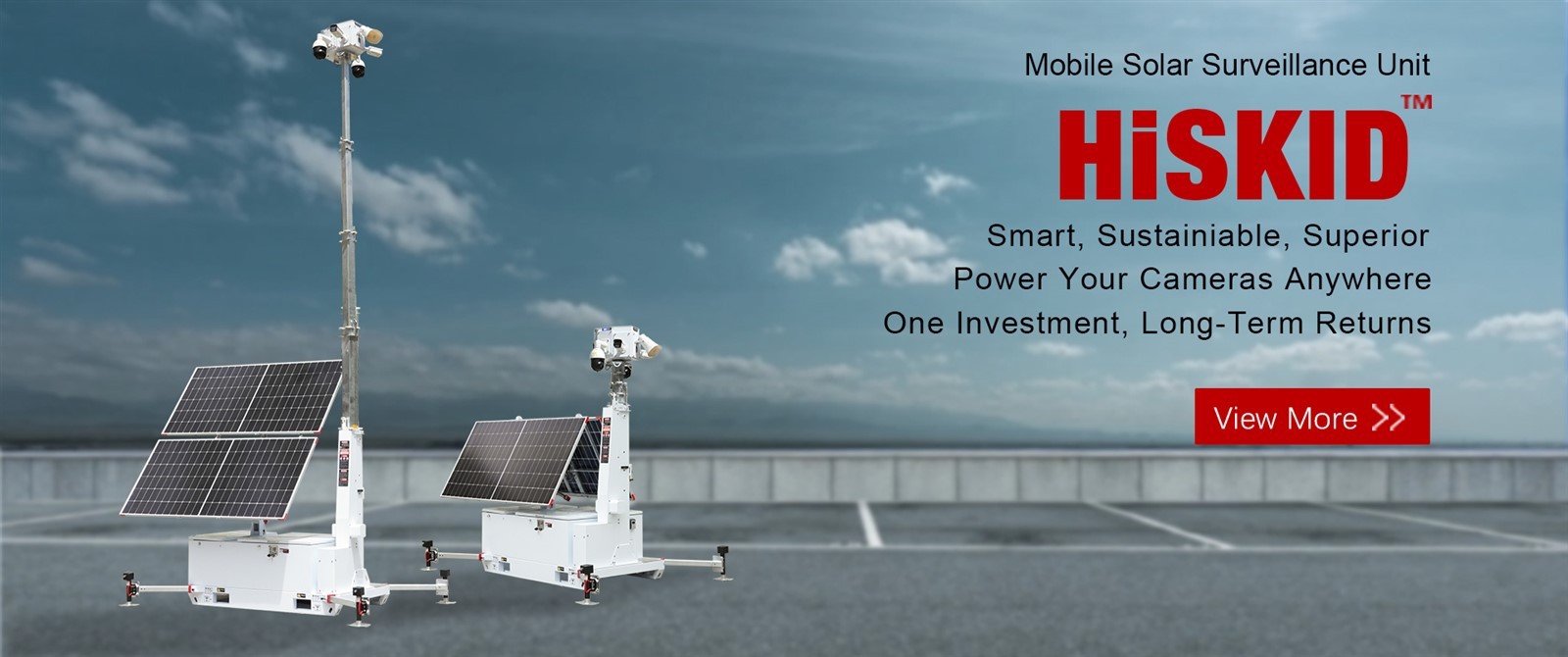

HiSKID Solar Power CCTV Tower with skid base

Combines skid base, solar system, telescopic tower & CCTV for off-grid security monitoring. Skid-mounted design allows easy relocation, ideal for remote areas without power infrastructure.

Key Features
Solar-powered for 24/7 off-grid operation
Skid base enables quick deployment & relocation
Integrates CCTV surveillance

banner



Video Description





Products Details



solar panels

Solar Panels



The solar panels boast three core capabilities: 180° full rotation (for all-directional positioning), 30-60° electric tilting (for precise angle tuning), and up to 1200W power rating (for robust energy output).



It delivers three key advantages: ✔ Flexible Adjustment (enables easy alignment with changing sun paths), ✔ Maximized Sun Exposure (enhances energy capture throughout the day), and ✔ Time-Saving Deployment (simplifies setup and positioning processes)

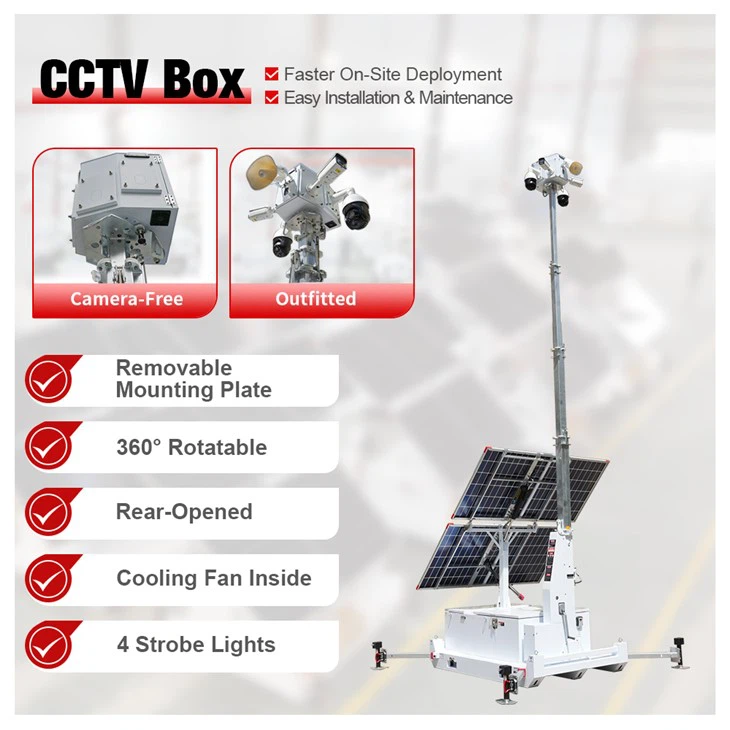

CCTV Box



The CCTV Box has a six-sided structure, removable mounting plate, 360° rotatable design, rear-opened access, internal cooling fan, and 4 strobe lights. These designs optimize its adaptability and functionality for surveillance needs.



It offers two main benefits: faster on-site deployment (streamlining setup workflows) and easy installation & maintenance (simplifying camera mounting/upkeep via the removable plate and rear access).

cctv
mast

Built - in Wires



The telescopic mast comes with built-in wires (internal wiring), supports up to 9 meters height, and has each section treated with hot-dip galvanization. These structural designs lay a solid foundation for its durability and functionality.



It delivers three critical benefits: ✔ weatherproof aging prevention, ✔ resistance against cutting or vandalism, and ✔ extended service life-all enabled by its galvanized sections and internal wiring protection.

Hot - Dip Galvanized



The solar surveillance tower's key parts use hot-dip galvanization, which is 3x thicker than electroplating. This design ensures high corrosion resistance against outdoor wear and rust.



It offers three key benefits: ✔ zero maintenance needed, ✔ extended service life, and ✔ all-weather performance-adapting to harsh conditions like humidity, salt spray, and extreme temperatures.

hot-dip galvanized



waterproof

Waterproof



The solar tower has waterproof performance (IP65 waterproof equivalent), along with enhanced joint sealing and blind hole fasteners-these designs reinforce its water-resistant structure for outdoor use.



It offers three core benefits: ✔ 100% moisture protection to block water intrusion, ✔ an all-weather sealed cabin for consistent internal dryness, and ✔ the ability to keep running in downpours, ensuring stable operation in wet conditions.

Oversized Trunk



The mobile solar trailer comes with an oversized trunk (extra large trunk) that boasts 8 square ft of capacity, offering sufficient storage space for on-site essentials.



It provides two practical benefits: ✔ holds tools and cameras to support daily operational needs, and ✔ has reserved expansion space to accommodate potential future storage requirements.

trunk
Forklift Base

Forklift Base



The forklift base is equipped with large fork holes, 4 adjustable jacks, and 4 reinforced lifting rings-these structural designs lay the foundation for easy handling and terrain adaptability.



It offers two practical benefits: ✔ fork/lift for easy movement (facilitated by large fork holes and reinforced lifting rings) and ✔ flexible adjustment suits varied terrains (enabled by the 4 adjustable jacks).





Products Specifications



Product HiSKID-II Solar Surveillance Tower
Models BL2P-G7MHDS0B BL2P-L7MHDS0B BL2P-G9EHDS0P BL2P-L9EHDS0P
Solar Panel Type Monocrystaline Slicon Type, Dual Facial, 180° Manual Rotating, 30°-60° Electric Tilting
Solar Panel Wattage 2*450W 2*600W
Controller 50A MPPT (With Remote Battery Monitoring) 150/45A MPPT (With Remote Battery Monitoring)
Battery GEL, 9600Wh, DC 24V LFP, 8038Wh, DC 24V GEL, 12000Wh, DC 24V LFP, 14336Wh, DC 24V
Battery AC Charger
1.5kW, AC110V/230V
CCTV BOX
350° Rotatable, 6-sided, back-opened, included 8-Port POE switch, and blue&white strobe light, for surveilance system
Optional Accessories
Cameras, NVR, 4G Router, Loud Speaker
Cables Buit-in composite cable: Network Cable+Power Cable
Telescopic Mast 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring
Trailer Type US/EU/AU Standard, Singel Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings
Outrigger 4pcs Manual Outriggers, Foldable,Y Shape
Working Temperature -20°C-55℃
Solar Charging Time
9 Hours (Estimated) 10 Hours (Estimated)
Battery Backup Time
72 Hours for 90W 72 Hours for 133W
Extended Dimensions
3522*3246*7232mm
4037*3246*9350mm
Retracted Dimensions
3522*1630*2880mm
4037*1630*3100mm
Gross Weight 1000KG 1100KG
Container Loading 20GP:6 units, 40HQ: 14 Units
Application Scenarios Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.



Application Scenarios

Construction Site



Mining Site



Oil Field



Parking Lot
Road Construction
Outdoor Activities







Packaging & Logistics

packaging-1
packaging-2
packaging-3
packaging-4

Packaging Details

* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.

 * Bulk Shipping: 6 units can be loaded into a 20GP container. 14 units fit perfectly into a 40HQ container.



Logistics Highlights

We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.



Company Profile



10Years of experience
in Mobile Power Solutions

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.



These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.



As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

BIGLUX

10+
Industry Experience
10K+
Factory land occupation
500+
Global Projects
200+
Monthly Capacity
1
2
5
6


Certificate Of Honor




1ISO

ISO

CE-BIGLUX 1

CE

DOT

DOT

4CR

CR

5WARRANTY

Certificate name





Customer Visit




customer visit - 2

customer visit - 1

customer visit-3



customer visit-2

customer visit-8



customer visit - 7



FAQ



Can I customize the LOGO and colors on your HiSKID solar trailer?

+

-

Yes, Color and LOGO can be customized.

Does the solar trailer include a CCTV system?

+

-

No, most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box equip POE for easy connection, with DC 24V/48V & AC 220V/110V options, ensure you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you needed.

Do you provide shipping services?

+

-

Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.

What's the production lead time?

+

-

Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.

How many cameras can the HiSKID trailer hold?

+

-

Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.

Is there a lithium battery option?

+

-

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

+

-

2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
