Looking For A Mobile, High-Tech Security Solution?

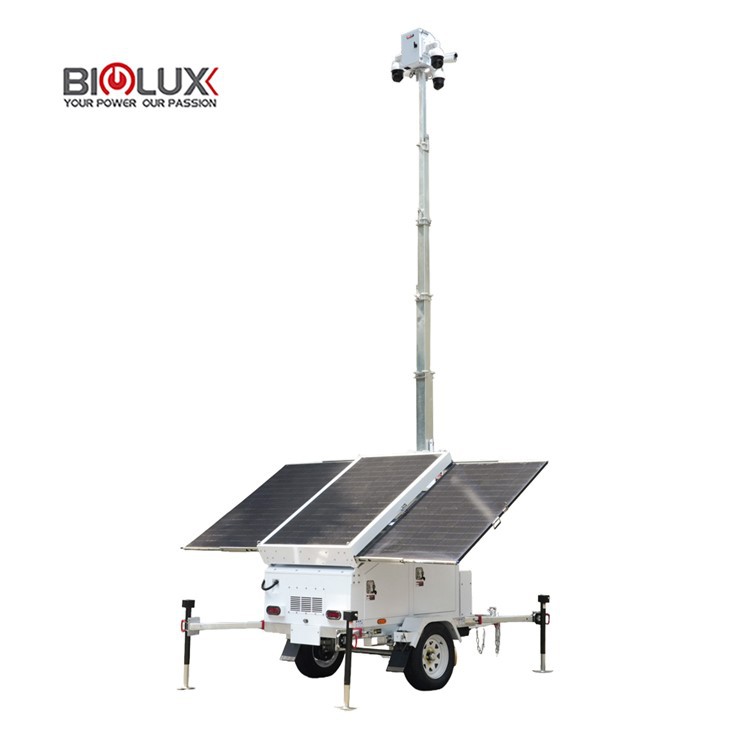

When traditional wired security systems fall short in remote or temporary locations, you need a system that powers and protects itself. The HiSTAR-III Mobile Solar CCTV Tower is the heavy-duty autonomous model from BIGLUX, built for 24/7 uninterrupted off-grid security monitoring in remote construction sites, mining areas, emergency rescue, and large-scale outdoor events.
Engineered to seamlessly integrate with industry-leading surveillance equipment like Hikvision and Dahua, this solar trailer transforms any vulnerable off-grid site into a fully monitored safe zone. Combining high-efficiency bifacial solar power, industrial-grade battery storage, and an auto-start backup generator, this all-in-one mobile surveillance trailer ensures nonstop operation and peace of mind, even during long rainy or cloudy days. Protect your valuable assets with the ultimate self-sustaining security powerhouse.
Video Description
Products Details

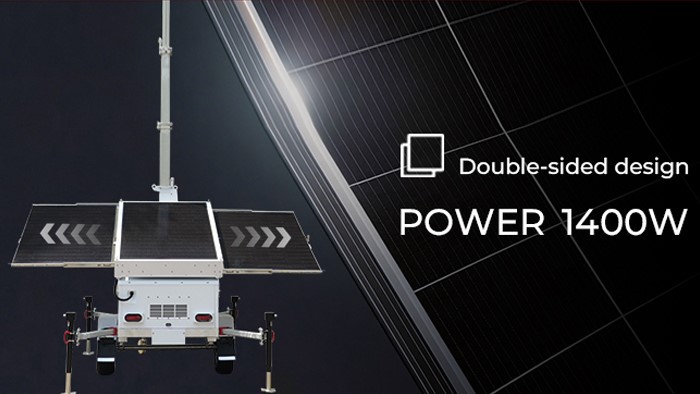

Double-Sided High-Power Solar System
The solar CCTV trailer adopts high-power double-sided solar panels with a peak output of 1400W. With a slide-out compartment, it enables fast deployment and storage. This design reduces transport size and cost, and delivers stronger power generation.

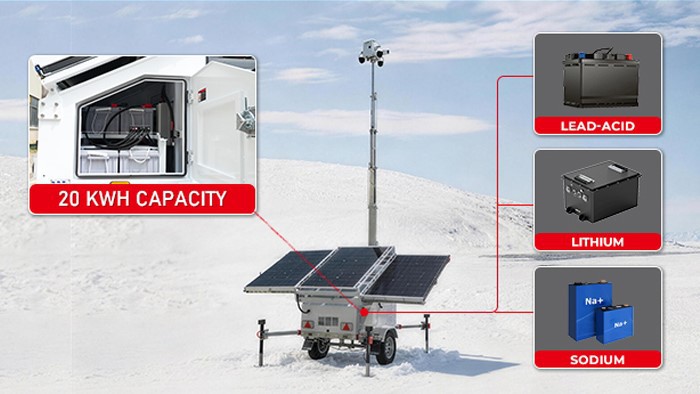

Independent High-Capacity Battery Compartment
The independent battery compartment supports up to 20kWh capacity. It is compatible with GEL (lead-acid), lithium, and low-temperature sodium batteries. It adapts to various needs and ensures stable power even in low-sunlight conditions.

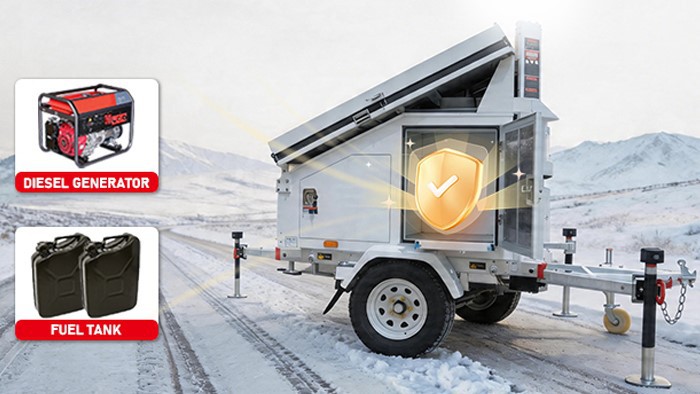

Intelligent Dual-Backup Diesel Generator
The system integrates a diesel generator and a large fuel tank. It automatically starts and stops intelligently, providing dual power protection. As the ultimate backup, it guarantees uninterrupted operation even in extreme environments.
30ft Telescopic Mast with Internal Cabling
The 30ft electric telescopic mast provides a wide monitoring view with full coverage. Internal cabling protects against aging and vandalism. This greatly improves safety while reducing long-term maintenance costs and risks.

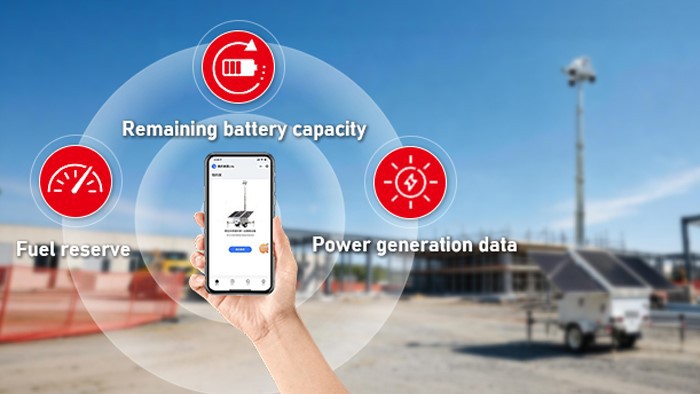

MPPT Cloud-Based Intelligent Monitoring
Equipped with an advanced MPPT system, it supports remote real-time monitoring of power generation, battery capacity, fuel reserve, and more. Full data visibility makes operation simpler, management more efficient, and deployment more reliable.
180° Rotatable Plug-and-Play CCTV Box
The top CCTV box supports 180° rotation and works with mainstream cameras, such as PTZ and bullet cameras, as well as Starlink. Plug-and-play for easy installation, it quickly builds an all-weather security system in any application scenario.
Easy Maintenance
Easy Maintenance: Equipped with three openable outer doors, user-friendly electrical cabinet doors, a 180° rotating rear-opening monitoring box, and built-in 8-port POE power supply interface for plug-and-play support.
Products Specifications
| Product | HiSTAR-III Mobile Solar Surveillance Trailer Tower | |||
| Models | BL3P-G7MHRS1B | BL3P-L7MHRS1B | BL3P-G9EHRS1P | BL3P-L9EHRS1P |
| Solar Panel Type |
25°-53° Electrical
|
|||
| Solar Panel Wattage | 3×450W, Bifacial | |||
| Controller | 60A MPPT with remote battery monitoring | 45A MPPT with remote battery monitoring | ||
| Battery | GEL, 14400WH | LFP, 14336WH | GEL, 14400WH | LFP, 14336WH |
|
System Voltage
|
DC 24V
|
|||
| Battery AC Charger | 2.5kW AC 110V/230V | |||
|
CCTV BOX
|
350° Rotatable, 6-sided, back-opened, included 8-Port POE switch, and blue&white strobe light, for surveilance system | |||
| Cables | Buit-in composite cable: Network Cable+Power Cable | |||
| Telescopic Mast | 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | ||
| Trailer Type | US/EU/AU Standard, Signel Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings | |||
| Included Accessories | 8-Port POE Switch | |||
|
Back-up Generator
|
3KW Power Rating, 50L Fuel Tank, with Auto-Start System
|
|||
| Working Temperature | -20°C-55℃ | |||
| Solar Charging Time | 9 Hours (Estimated) | |||
| Battery Backup Time | 72 Hours Under 160W Load | |||
| Optional Devices | Cameras, NVR, 4G Router,Loud Speaker | |||
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |||

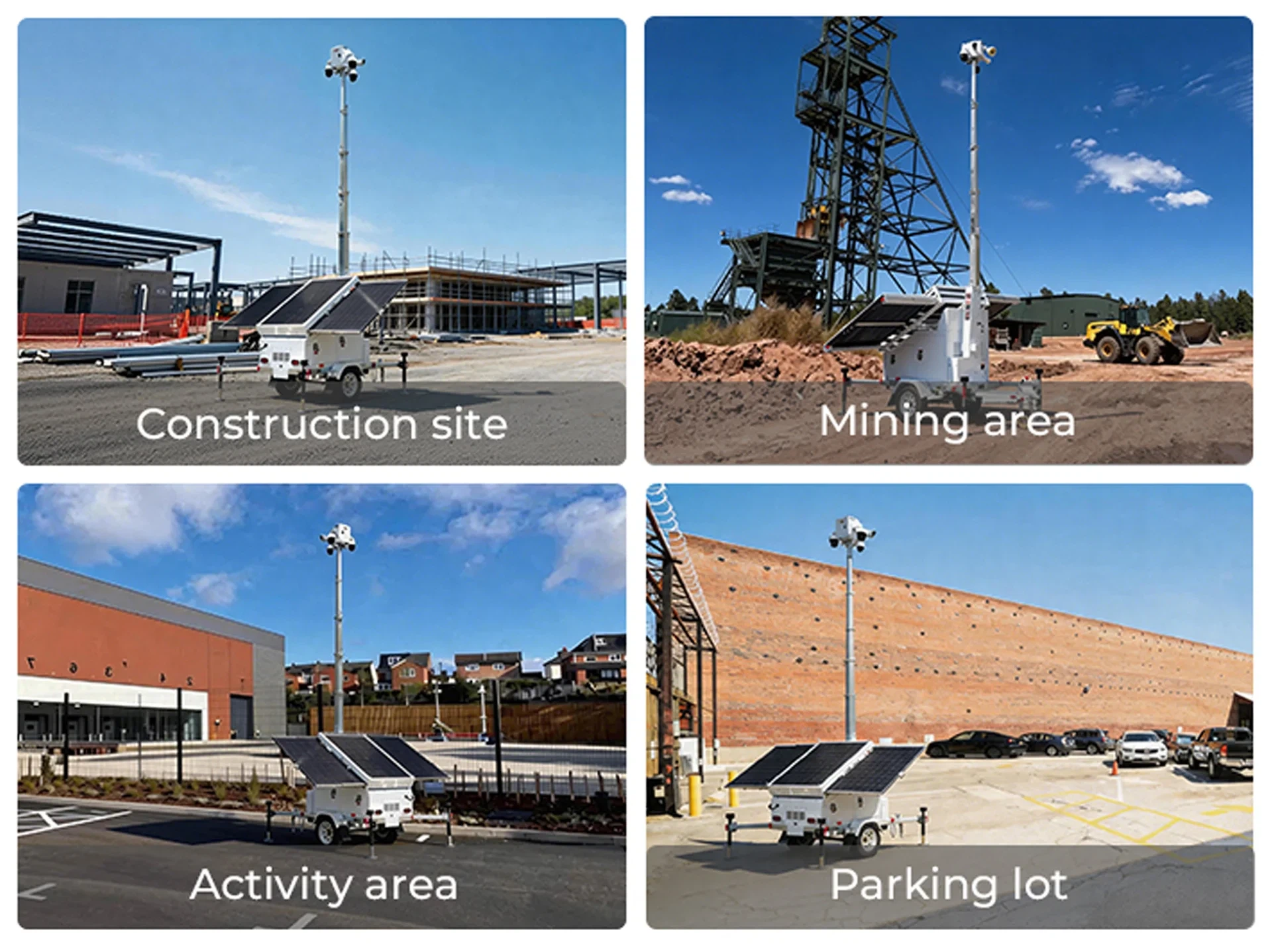

Customer Case
- Construction Site Security: Real-time monitoring for materials, machinery, and workers; ideal for off-grid long-term projects.
- Mining & Oil Fields: 24/7 continuous surveillance in remote, high-risk areas without infrastructure.
- Emergency & Disaster Rescue: Rapid deployment for natural disasters, accidents, and temporary command centers.
- Large Events & Public Security: Crowd management, traffic monitoring, and temporary event security.
- Remote Infrastructure & Logistics: Yard, warehouse, commercial parking lot, and unmanned area monitoring.
Why Choose BIGLUX HiSTAR-III?
Equipped with solar panels, a large battery bank, and a 3KW auto-start diesel generator to ensure nonstop off-grid operation.
The internal wiring design inside the hot-dip galvanized mast protects against cutting, severe weather, and wire aging.
The rotatable CCTV box seamlessly integrates with major brands like Hikvision and Dahua for easy, plug-and-play installation.
The 3×450W pull-out bifacial solar panels capture sunlight from both sides for maximum energy yield.
As a leading manufacturer based in Shenzhen, China, we provide reliable technical support, remote guidance, and warranty service.
Packaging & Logistics
Packaging Details
* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.
* Bulk Shipping: 3 units can be loaded into a 20GP container. 7 units fit perfectly into a 40HQ container.

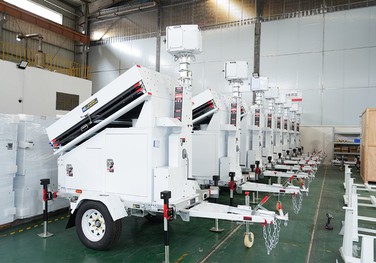

Logistics Highlights
We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.
Company Profile
in Mobile Power Solutions
BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.
These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.
As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.
Certificate Of Honor
ISO
CE
DOT
CR
Certificate name
Customer Visit
FAQ
Are you a manufacturer?
+
-
Yes, BIGLUX is a professional manufacturer based in Shenzhen, China, specializing in mobile solar trailers and off-grid solutions.
Does the tower include cameras?
+
-
Most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box features a universal design, ensuring you can easily plug and play with industry-leading brands like Hikvision and Dahua. We also offer camera and NVR pre-installation services if needed.
What is the warranty of the solar trailer?
+
-
We provide a standard 2-year warranty on the machines. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
What's the production lead time?
+
-
Standard sample is generally shipped within 4 weeks, batch orders are generally about 6 weeks. Please kindly consult our sales team for specifics.
How many cameras can the HiSTAR solar trailer hold?
+
-
Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.
Is there a lithium battery option?
+
-
Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.
Do you inspect the finished products?
+
-
Yes. Each step of the production process will be carried out and inspected by our QC department until shipping to ensure premium quality.
