HiSOLO Solar Light Tower
video
HiSOLO Solar Light Tower

HiSOLO Solar Light Tower

Solar trailer with LED lights for illumination in construction site – solar-powered LED illumination for construction sites.

Key Specs
✔ 2×600W dual-panel solar (350° rotational & vertical adjustment)
✔ 4×100W high-output LED lights
✔ Dual-panel design for max solar efficiency

Why It Works
Mobile, grid-free setup with all-weather durability, perfect for nighttime construction and site security.

banner



Video Description





Products Details



solar panels

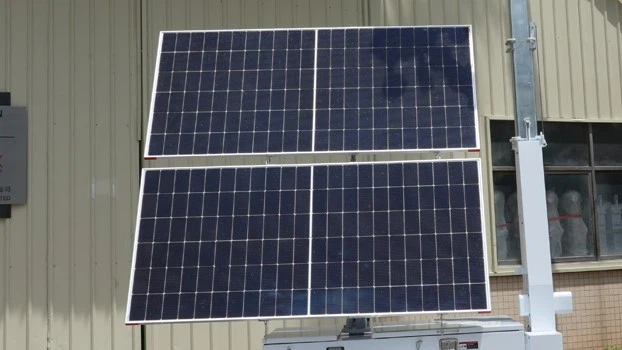

Solar Panels



The solar panels support 180° full rotation and 30–60° electric tilt, with a power rating of up to 1200W. This design can flexibly adjust according to the direction of sunlight to achieve optimal energy collection.



They deliver four key benefits: ✔ flexible adjustment to adapt to sun movement, ✔ maximized sun exposure for efficient energy generation, ✔ time-saving deployment for quick setup, and ✔ 0 fuel, self-sufficient operation (relying solely on solar energy, no external fuel needed).

LED Lights



The LED lights on the solar light tower support 360° full rotation and 0–90° tiltable adjustment, available in configurations of up to 4×150W LED lights. They also provide up to 24 hours of continuous lighting for extended outdoor use.



These features bring two core benefits: ✔ flexible adjustment to fit diverse lighting needs (e.g., construction sites, parking lots) and ✔ stable light source for consistent, long-duration illumination that meets operational requirements.

led lights
control panel

Control Panel



The control panel of the solar light tower includes three key functions: timed switch (for scheduled lighting on/off), brightness control (to adjust light intensity), and battery capacity display (to monitor power status in real time).



It offers three user-centric benefits: ✔ simple operation (intuitive functions reduce learning costs), ✔ user-friendly design (easy to navigate even for first-time users), and ✔ zero failure rate (reliable performance suited for solar light tower scenarios).

Built - in Wires



The telescopic mast comes with built-in wires (internal wiring), supports up to 9 meters height, and has each section treated with hot-dip galvanization. These structural designs lay a solid foundation for its durability and functionality.



It delivers three critical benefits: ✔ weatherproof aging prevention, ✔ resistance against cutting or vandalism, and ✔ extended service life-all enabled by its galvanized sections and internal wiring protection.

mast



hot-dip galvanized

Hot - Dip Galvanized



The solar lighting tower's key parts use hot-dip galvanization, which is 3x thicker than electroplating. This design ensures high corrosion resistance against outdoor wear and rust.



It offers three key benefits: ✔ zero maintenance needed, ✔ extended service life, and ✔ all-weather performance-adapting to harsh conditions like humidity, salt spray, and extreme temperatures.

Dust - Proof



The trailer features: dust-proof performance, paired with a separate air inlet/outlet, sealed housing, and a high-power cooling fan-these components work together to balance dust resistance and heat dissipation.



It delivers two core benefits: ✔ ventilation & dust-proof (the separate air inlet/outlet and cooling fan ensure airflow while blocking dust), and ✔ isolate external environment (the sealed housing keeps out external dust and debris).

Dust-Proof



Products Specifications



Product HiSOLO Mobile Solar Light Trailer Tower
Models BL2P-G7MHSL0400 BL2P-L7MHSL0400 BL2P-G9EHSL0600 BL2P-L9EHSL0600
Solar Panel Type Monocrystalline Silicon Type, Dual Facial, 180° Manual Rotating, 30°-60° Electric tilting
Solar Panel Wattage 2*450W 2*600W
Controller 50A MPPT (With Remote Battery Monitoring) 45A MPPT (With Remote Battery Monitoring)
LED Light 4*100W 4*150W
Light Type LED 150 lm/W (Luminous Efficacy), Outdoor floodlight, lP65
Total Luminous Flux
60,000 lm
90,000 lm
Smart Functions
Timer, Light-Sensing, Dimming
Timer, Light-Sensing, Dimming, Manual/Automatic Adjustable Knob
Light Rotation & Tilting
Manual
Electric
Lighting Time
16 hours at full brightness
Solar Charging Time
9 hours (Estimated)
10 hours (Estimated)
Battery GEL, 9600Wh, DC 24V LFP, 8038Wh, DC 24V GEL, 12000Wh, DC24V LFP, 14336Wh, DC24V
Battery AC Charger 1.5kW, AC110V/230V
Telescopic Mast 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring
Trailer Type US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings
Outrigger 4pcs Manual Outriggers, Foldable,Y Shape
Working Temperature -20°C-55℃
Extended Dimensions
3522*3246*7262mm
4037*3246*9860mm
Retracted Dimensions
3522*1630*2910mm
4037*1630*3610mm
Gross Weight 1020KG 1140KG
Container Loading 20GP: 6 units, 40HQ: 12 Units 20GP: 5 units, 40HQ: 12 Units
Application Scenarios Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.



Product Comparison



Light Tower: Solar-Powered vs. Diesel-Powered





1

Zero fuel expense

No refueling needed

2

Maintenance - free

No parts replacement required

3

One - touch operation

Low malfunction rate, and silent running

4

LED lights

Instant activation, and stable light output

5

Generates fuel costs

Needs frequent refueling

6

Demands routine maintenance

Regular parts replacement

7

Complicated to operate

High failure rate, and loud noise

8

Halide lamps

Preheating required, and glare & uneven lighting



Application Scenarios

Construction Site



Mining Site



Oil Field



Parking Lot
Road Construction
Outdoor Activities







Packaging & Logistics

packaging1
packaging2
packaging3
packaging4

Packaging Details

* Sample Shipment: 1 solar light tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and light fixtures.

 * Bulk Shipping: 6 units can be loaded into a 20GP container. 12 units fit perfectly into a 40HQ container.



Logistics Highlights

We handle every step with precision-from using forklifts to load the well - packed solar lighting towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.



Company Profile



10Years of experience
in Mobile Power Solutions

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.



These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.



As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

BIGLUX

10+
Industry Experience
10K+
Factory land occupation
500+
Global Projects
200+
Monthly Capacity
trailers
2
light trailers
light trailer


Certificate Of Honor




1ISO

ISO

CE-BIGLUX 1

CE

DOT

DOT

4CR

CR

5WARRANTY

Certificate name





Customer Visit




customer visit - 2

customer visit - 1

customer visit-3



customer visit - 3

customer visit-1



customer visit - 7



FAQ



Can I customize the LOGO and colors on your solar trailer?

+

-

Yes, Color and LOGO can be customized.

Is the tilting and rotation of the LED light manual?

+

-

Yes, it is manual, but it can also be upgraded to electric for more convenient use.

How long can the light tower illuminate?

+

-

The specific lighting hours depends on the configuration of the LED power and battery capacity. For example, with a 400W LED light and a 12kWh battery, the maximum lighting time can reach 24 hours.

What's the production lead time?

+

-

Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.

What additional functions does your light tower offer?

+

-

Our light tower also supports real - time battery capacity monitoring, timer - controlled light switching, and a dimming function to adjust light brightness.

Is there a lithium battery option?

+

-

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

+

-

2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
