A 600W single-panel solar surveillance trailer is a compact, rapidly deployable, off-grid security solution for small-to-medium sites where grid power is unavailable or impractical.
It integrates one 600W solar panel, battery storage, a telescopic mast, cameras, and wireless communication-all mounted on a towable trailer.
1. Core System Configuration
- Solar Panel: 1 × 600W high‑efficiency monocrystalline or bifacial panel (30°–60° tilt, 0°–360° rotation).
- Battery Bank: 2.5–5kWh lithium‑iron phosphate (LiFePO4) or AGM batteries (3–7 days of autonomy).
- Controller: MPPT (Maximum Power Point Tracking) charge controller (20–40A) for efficient charging.
- Mast: 5–9m telescopic (manual/electric) with 360° camera coverage.
- Surveillance: 1–2 PTZ or bullet cameras (10–40W each), 4G/5G/Wi‑Fi, motion detection, and remote monitoring.
- Trailer: Lightweight galvanized chassis, outriggers, and highway‑ready tires.
2. Key Applications
-
Small Construction Sites: Monitoring progress, theft prevention, and safety compliance in narrow work zones.
-
Temporary Events: Fairs, markets, concerts, and sports-rapid setup/teardown with no wiring.
-
Remote Lots & Facilities: Small parking lots, utility substations, and rural property perimeters.
-
Infrastructure Monitoring: Bridges, pipelines, and telecom towers in off‑grid areas.
-
Emergency Response: Disaster sites, fire perimeters, and temporary command posts.
-
Mining & Oil/Gas: Small well pads, access roads, and equipment yards.
3. Performance & Sizing
-
Daily Energy Output: ~2.4–3kWh (based on 4–5 peak sun hours).
-
Typical Load: 1 × 20W PTZ camera + 4G router (~5W) = ~600Wh/day; 600W system supports this with 4–5x surplus for charging batteries.
-
Autonomy: 3–7 days of continuous operation without sun (depends on battery capacity).
4. Advantages
-
Rapid Deployment: Tow to site, deploy outriggers, raise mast-operational in <30 minutes.
-
Off‑Grid Independence: No utility bills, no trenching, no grid reliance.
-
Compact Footprint: Single 600W panel reduces size/weight vs. multi‑panel systems-ideal for tight spaces.
-
24/7 Operation: Solar charges batteries during the day; batteries power cameras at night.
-
Remote Management: Live view, PTZ control, and alerts via 4G/5G from any internet‑connected device.
5. Limitations & Considerations
-
Scalability: 600W is for small loads only (1–2 cameras). For 3+ cameras or high‑wattage IR illuminators, upgrade to 2 × 600W (1200W) system.
-
Weather Dependence: Performance drops in extended cloudy/rainy periods-size battery for local conditions.
-
Wind Load: Ensure panel/mast is rated for local wind speeds (add wind sensors for auto‑stow in high winds).
6. Why Choose a 600W Single‑Panel Trailer?
-
It's the most cost‑effective, compact, and easy‑to‑use solar surveillance solution for small‑scale, temporary, or remote security needs. It balances power, portability, and affordability without the complexity of larger multi‑panel systems.
-
Need a custom configuration for your site (e.g., battery size, mast height, camera type)? I can help you tailor a 600W solar surveillance trailer to your specific requirements.
Click to learn more information

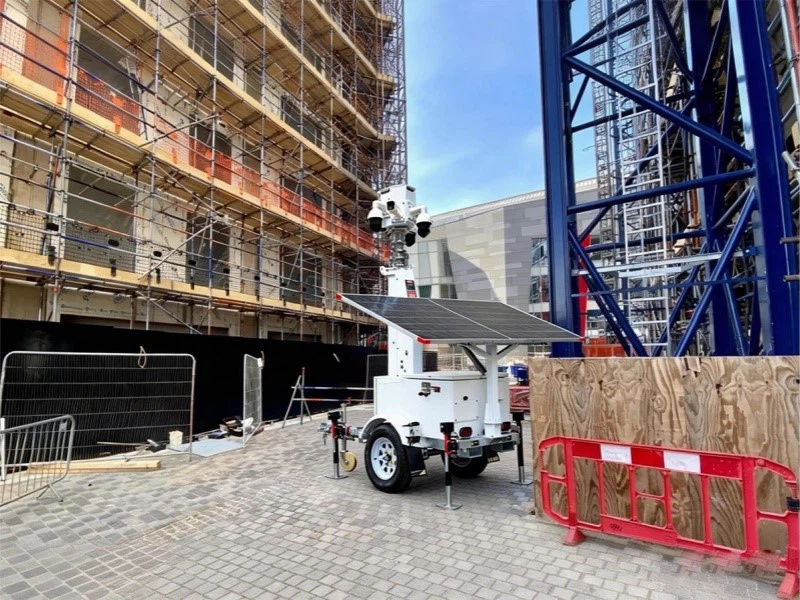

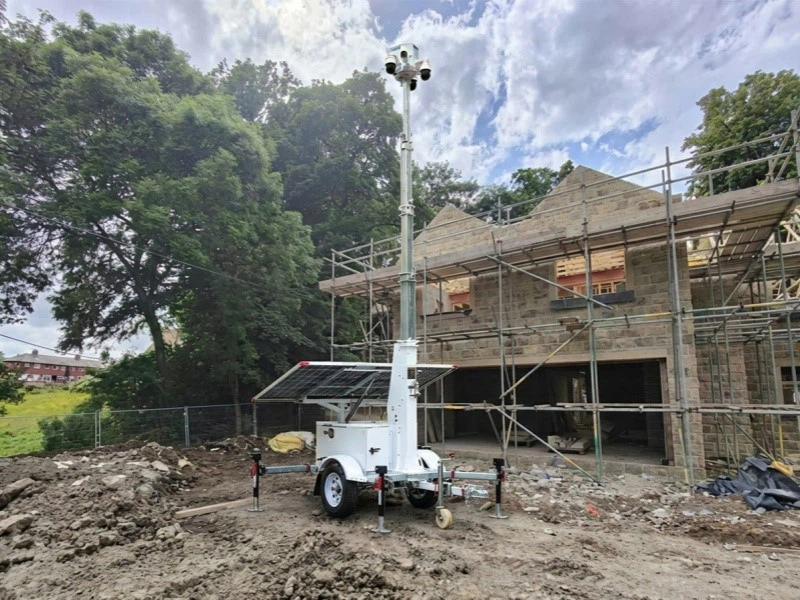

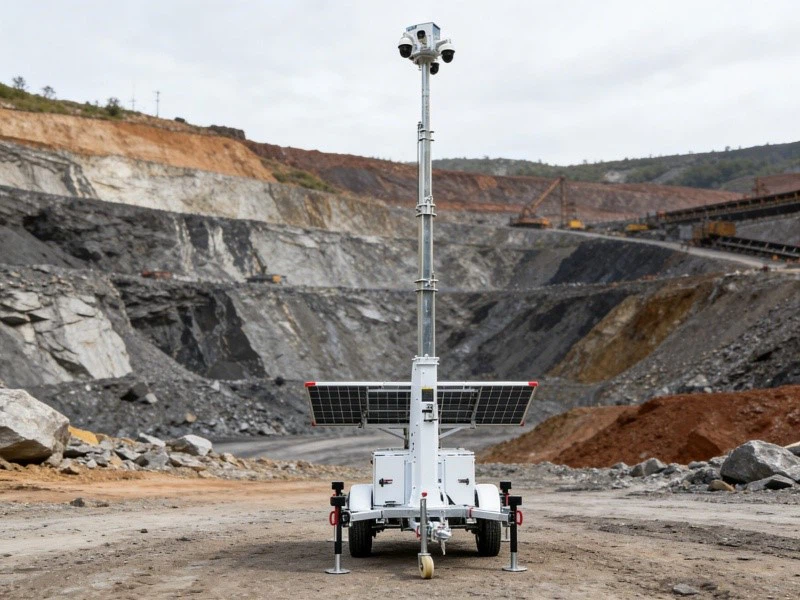

The recommended model HiSITE solar surveillance trailer
| Name | HiSITE CCTV Trailer |
| Model | BL1P-G7MHIS0B |
| Solar Panel | 1 × 600W, Dual-facial, with 120° rotated angle adjusting and vertical angle adjusting to make full use of solar energy. |
| GEL Battery | 6000W·h |
| Rotatable 6-sides mounting box | 4*white&blue strobe lights |
| MPPT Controller | 30A MPPT 95% Efficiency |
| Cable | net cable+power cable with waterproof connectors, Build inside mast. |
| Mast | 6.5 meters, Manual Winch Lifting |
| Trailer | US/EU/AU Standard, 4*Manual Outrigger, 4*forklift holes |
| Charging Time | 8.4 hours |
| Running Time | 70 hours for 80W |
| System Voltage | DC24V |
| Container loading | 8units for 20' GPcontainer, 16units for 40' HQ container |
| Dimension(L×W×H) | 2384*1800*3000mm (Folding size) 2384*1800*7000mm (Operating size) |
BIGLUX INNOVATION LTD
Founded in Aug 3 th, 2017
Over 100 Employees.
Factory area over 30,000sqm.
Enough production capacity for large order.
Focus on mobile solar trailer solution for multiple applications.
BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years, Our products mainly include mobile solar power tower fully featured with lighting tower, CCTV security trailer, telecom tower and power charging trailer.
Q&A
Q: Can I customize the LOGO and colors on your trailer?
A: Yes, Color and LOGO can be customized.
Q: Does the solar trailer include a CCTV system?
A: No, most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box equip POE for easy connection, with DC 24V/48V& AC 220V/110V options, ensure you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you need.
Q: Do you provide shipping services?
A: Yes. For North America, we can provide door-to-door (DDP) service.For the Middle East/Europe/others, we generally provide factory-to-port(CIF) service.
Q: What' s the production lead time?
A: Standard sample is generally shipped within 2 weeks, batch orders isgenerally about 1 month. Please kindly consult our sales team for specifics.
Would you like try some samples?
PS: I will be happy to send the "Proposal" and "Pricing" Furthermore.
Please feel free to contact us now.
