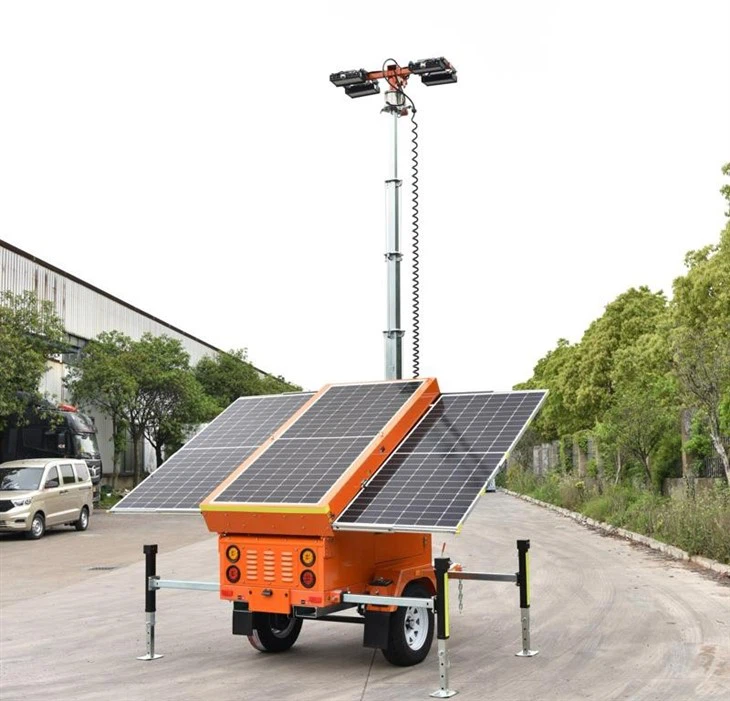

High Brightness LED Light Tower Powered by mobile solar system can be used and relocated for Mine, oil, etc
The configuration of the led light towers and match solar sysgtem could be customized according to your applications.
Dialux simulation is available for the project if needed.
Example configurations for the High Brightness LED Light Tower for Mine:
| Brand Name | BIGLUX |
| Model Number | BL3P-G7MHL400 |
| Application | Industrial, construction, commercial |
| Solar Panel Type | Monocrystalline Silicon |
| Battery Type | Lead-Acid |
| Controller Type | MPPT |
| Solar Panel | 3pcs 435w |
| Battery | 6pcs 150Ah, DC12V, 10800WH |
| Controller | 60A MPPT, 95% Efficiency |
| Backup Generator | 3KW Gas, with hybrid system and charger |
| Inverter | Optional, eg: 3KW |
| Output socket | Optional, eg: 2*110V/230V |
| Mast | 6.5 meter telescopic mast, manual lifting |
| Mounting Box | Prepared, easy for camera connection |
| Spring Cables | 2 cat6 + 2 power wires |
| Cameras | Optional, eg: HIKVISION dome and bullet cameras |
| LED Light | 4*100W led light, other wattage available |
| Charging time | 6.9 hours with good sunshine |
| Trailer | US AU and EU standard with single axle, 4 outriggers, Ball hitch, 15 inch tyres |
The light efficiency is 160lm/W;
Running time with full charged batteries for the 400W lights is 21.6 hours.
The led lights could be 90 degree tilted and 350 degree rotated for different directions.
Different colors of High Brightness LED Light Tower for Mine available, such as white, orange, red, blue, yellow, etc.
Other wattage version such as 4* 150W, 6*150W, 6*300W, etc available, with bigger telescopic mast and trailer.
The solar system is drawer type with pulling in and out, easy for transportation and protection.
The GEL batteries and Lithium batteries available.
MPPT could be different brands for your choice.
Biglux makes the mobile solar light tower trailers in a procedure:
Design with drawing, laser cutting, bending, soldering, finishing, power coating, assembly, etc.
If more details about the High Brightness LED Light Tower for Mine, please contact Biglux
