Product description:

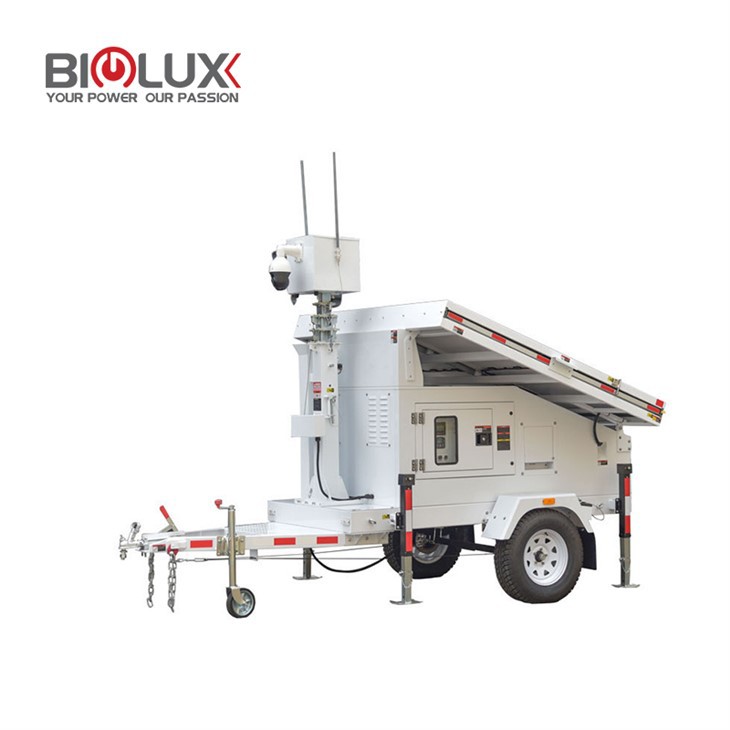

Biglux hybrid off grid solar cctv tower for security with 3kw gasoline genset,hybrid controller,sheet metal and guide rails and charger.The hybrid system on the controller panel,when customer press AUTO,the generator will start charging itself when the battery is low.The generator is placed on the slider and can be removed by pulling it out, making it easy to maintain and disassemble.
Product specifications:
Solar Panel: 3 × 460W,Mono
GEL Battery: 6 × 200Ah,DC12V,14400W·h
Gasoline Genset: 3kW/3kVA,AC220V/110V,EPA
Battery Charger: 2.5kW/2.5kVA,AC220V/110V
Lamp: 2*100w,3000lms
with CCTV mounting box, PoE Switch, DC24V-12V
Spring Cable: 2 × Cat6 + 2 × Supply
Controller: 60A MPPT,95% Efficiency,Hybrid
Mast: Steel Q235,Square Telescopic type,6.5 m,5 Sections,Manual Winch Lifting,70kg Load,117kph Windproof
Trailer:US/EU/AU Standard,Ball Hitch, Single Axle,Manual Outrigger
Charging Time: 8.8 hours by Solar,7.4 hours by Genset
Running Time: 20 Days for 120W
Led lights details, 2*100w led lights,30000lms
The balance meter and mudgurad details.
The basic principle for Biglux hybrid off grid solar cctv tower for security as followings:
1. The controller (hybrid module) is connected to the battery voltage port of the solar controller.
2. Once the battery voltage falls below the set value, then the unit controller will automatically start the generator.
3. The output of the generator is already connected to the battery charger, which is connected to the battery pack.
4. The alternating current from the generator will be converted to direct current through the battery charger and flushed into the battery pack.
Customers can choose 3kw gasoline genset or 5kw diesel genset according to their needs, for more details about Biglux hybrid off grid solar cctv tower for security,plesae get in touch with us. We look forward to hearing from you.
