High definition surveillance cctv cameras together with mobile solar cctv trailer off grid solar system for security monitoring
High definition surveillance mobile solar cctv trailer specification：
Base System
| Brand: | BIGLUX |
| Name: | Solar CCTV Trailer |
| Model: | BL2P-G7MHS |
| Material: | Steel Q235 |
| Powder: | Outdoor Type |
| Transport: | 1900×1500×1100 (mm) |
| Operate: | 2900×2500×7000 (mm) |
| Weight: | 1000kg |
| System Voltage: | DC24V |
| Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
| Solar Panel: | 2 × 435W/2 × 460W，Monocrystalline Silicon |
| Voltage: | DC42V |
Battery System
| GEL: | 4 × 150Ah/4 × 200Ah，Free-main，Deep-cycle |
| Voltage: | DC12V |
| Series & Parallel: | 2 in series, then parallel |
| Power Capacity: | 9600W·h |
CCTV System
| Box: | Square type |
| Device: | POE Switch |
Control System
| Solar Controller: | MPPT, 40A |
| Efficiency: | 95%+ |
| Detection & Protection: | Short-Circuit,Overload,High Voltage,High Temperature |
Mast System
| Body: | Steel Q235 |
| Type: | Square Telescopic type |
| Height： | 6.5m |
| Section: | 5 |
| Spring Cable: | 2*CAT6+2*2.5mm²+6*1.5mm² power cable |
| Lifting Method: | Manual Winch |
| Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
| Windproof: | 117km/h / 73mph |
Trailer System
| Standard: | US / AU / EU |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Outrigger: | 4 × Manual Galvanized |
| Axle: | Single Suspension |

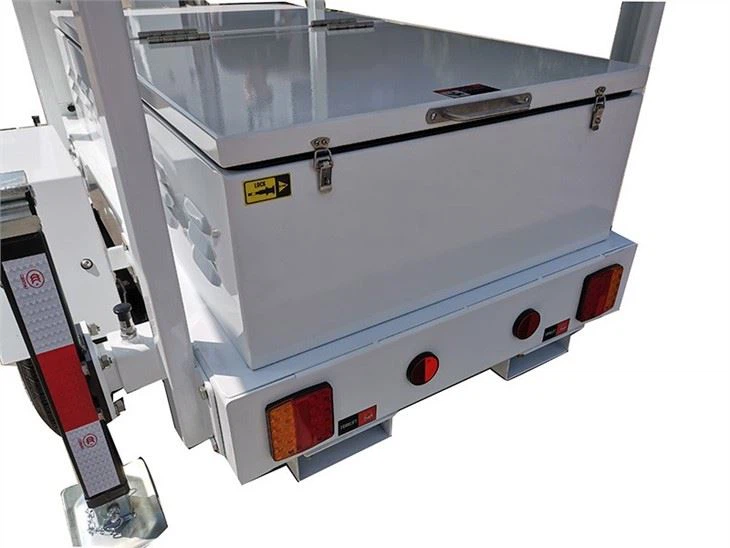

High definition surveillance mobile solar cctv trailer photo for reference.
