Off grid hipower mobile power station solar generator, it's the perfect choice for construction site trailers, telecom sites and many other commercial applications where reliable power is a must.

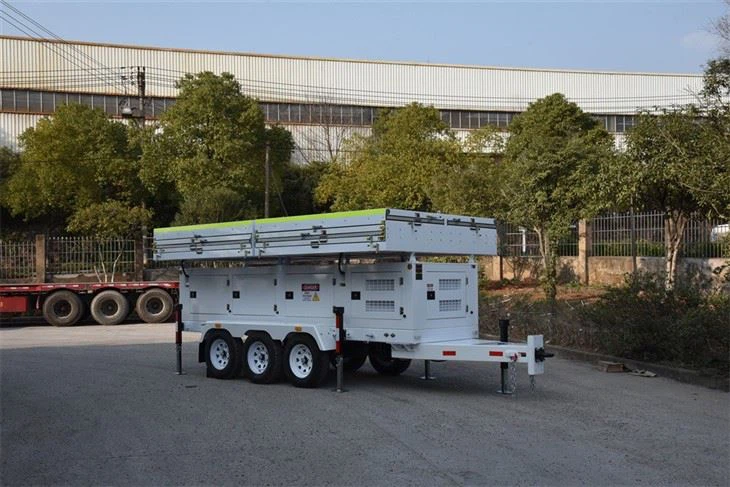

Portable Solar Generator Mobile Solar Trailer Specification:
Solar System
| Solar panel: | 435W |
| Quantity: | 16 |
| Type: | Monocrystalline silicon |
| Dimension: | 2094x1038*35mm |
| Sytem voltage: | DC48V |
Battery Sytem
| Battey capacity: | 32 × 200Ah |
| Type of battery： | Gel-battery |
| Voltage of battery: | DC12V |
| Connection: | In series to be DC48V |
| Operating temperature: | -20~45 degree centigrade |
Control System
|
Solar Controller:
|
MPPT，2*80A
|
|
Efficiency:
|
95%+
|
|
Detection & Protection:
|
Short-Circuit，Overload，High Voltage，High Temperature
|
|
Timer:
|
Dusk & Dawn
|
|
Whole Machine:
|
Battery Isolator，Device on-off
|
|
Brake:
|
Electric brake
|
|
Coupling:
|
6000kg 70mm Ring type
|
|
Wheel chock:
|
2 pcs
|
|
Reflective strip:
|
White with Red
|
|
Tail light:
|
DC12V
|
|
Axle:
|
3 x Single 2000kg
|
|
Tyre:
|
6 x 215/75R15 LT
|
|
Suspension:
|
Spring Type
|
|
Stabilizer leg:
|
4 x manual
|
|
Stabilizer leg location:
|
two in front ,two at behind
|
|
level gauge:
|
4 pcs
|
|
Manual Jack:
|
Expanded 2.7m
|
|
Safety design:
|
lockable
|
|
Canopy materials:
|
cold-rolled sheet
|
|
Thickness:
|
2mm
|
|
Color:
|
White
|
|
Performance:
|
Waterproof
|
|
Standard:
|
Powder coating
|
|
Product name:
|
Mobile Solar Generator
|
|
Transport dimensions:
|
5700×2230×2100(mm)
|
|
Expanded dimensions:
|
8600×6300×2350(mm)
|
|
Weight:
|
4800kg
|
BIGLUX hipower solar power station with 6960W solar panels can be used for mining, with such a large power support, the trailer can run for 25.6 hours. Also with inverter inside, it can charge for laptop and other electronic equipment. We focus on details for product produce process, the manufacture of BIGLUX solar power station is of high standards. Such as the surface treatment process, requiring no dust. And we used high quality material to each component. This can help clients improve their competitiveness in the market, bringing wider market application.
Controller panel
Customer can operate the controller panel,it is very easy to operate it. And customer can review the battery status through the window.
MPPT controller panel with sockets, we have different voltage system 110v and 220v to meet different customer's requirements.
The charger sockets also have different standards according to customers needs.
Color can be customized,our default color is white, we can paint other colors according to customer's requirements.
Batteries details, our gel batteries quality is very good and stable, they can be used for 3-4 years without any broken, afterthat, customers can buy them from the local market very easily.
BIGLUX develops and implements specific & innovative mobile solar energy solutions for different industry applications. By adopting the latest SOLAR ,LED lighting, digital camera technology and smart controlling system, we can supply the best energy saving solar lighting tower, solar surveillance trailer for parking lot, construction site, military, mining, sports, events and emergency applications.
Our design philosophy is simple: “safe, rugged, reliable.” And we think it shows. Our solar trailers are easy to tow and set up, while providing a durable, attractive solution to the off-grid power need.
All of our generators deliver pure sine wave current more consistently than your utility. As a bonus, they operate independently of the grid, relying on a huge energy bank to provide power in bad weather.
Since our solar trailers are not anchored to the ground, they should not require permits or inspections, nor should they increase your property taxes. We produce these parts to order. If there's something you don't see, don't hesitate to ask us for a quote.
Whether it's powering a worksite office trailer, running a long-range lidar system, or powering your home when the grid goes down, you don't have to settle for relying on increasingly expensive energy, loud, and smelly generators. We have many years of experience working in cell photovoltaics and are passionate about alternative energy sources. Contact us now and let us find a mobile solar generator that will meet your needs and budget.
Headquartered in Shenzhen, China, BIGLUX is an innovation driven and qualiy oriented company.
