Place of Origin: |
China (Mainland) |
Brand Name: |
BIGLUX |
Model Number: |
BL-M60-290/295/300 |
|
Material: |
Monocrystalline Silicon |
Size: |
1640*992*40mm |
Number of Cells: |
60(6*10)pcs |
|
Max. Power: |
295W |
Name: |

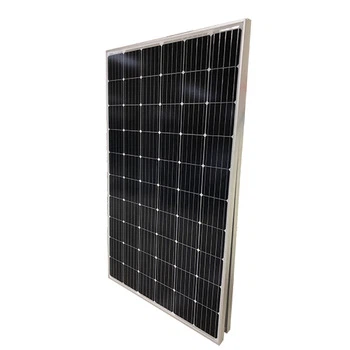

Mono 295w solar panel |
Certificate: |
IEC/ETL/TUV/CE/ISO9001/14001 |
|
Backing Color: |
White, Black, Transparent |
Frame: |
Anodized aluminium alloy |
Front Cover: |
3.2mm high transimissiion,low Iron tempered glass |
|
Junction Box: |
Ip 67Rated/Past connector/MC4 |
OEM: |
Acceptable |
Frame Color: |
Silvery, Black |
|
Warranty: |
25 years |
Weight: |
23kg |
Supply Ability
Supply Ability: 1000000 Watt/Watts per Week
Packaging & Delivery
Packaging Details : In well protected carton or wooden box with pallets.
25pcs per pallet, 380pcs fill into 20GP, 820pcs fill into 40HQ
Port : Shanghai or shenzhen
Lead Time : 15 days after receiving the deposit
|
The component models |
BL-M60-290 | BL-M60-295 | ||
|
The test conditions |
STC |
NOCT |
STC |
NOCT |
|
Maximum power(Pmax/W) |
290 |
211.1 |
295 |
214.8 |
|
Power tolerance (W) |
0~+5W |
0~+5W |
0~+5W |
0~+5W |
|
Open circuit voltage (Voc/V) |
39.2 |
36.09 |
39.3 |
36.4 |
|
Short circuit current (Isc/A) |
9.57 |
7.862 |
9.63 |
7.887 |
|
Peak power voltage(Vmp/V) |
31.9 |
28.41 |
32.3 |
28.6 |
|
Peak power current (Imp/A) |
9.09 |
7.431 |
9.13 |
7.514 |
|
Component conversion efficiency (%) |
17.83% |
/ |
18.13% |
/ |
|
STC (standard test environment) : |
irradiance 1000 w / ㎡, environment temperature 25 ℃, the AM1.5 spectrum |
|||
|
NOCT (cell nominal working temperature conditions) : |
irradiance 800 w / ㎡, environment temperature 20 ℃, the AM1.5 spectrum | |||
| Working Parameters | Temperature coefficient and load capacity | ||||||
| Maximum system voltage | DC1000V | Short circuit current temperature coefficient（Isc/A） | +0.06%/℃ | ||||
| Working temperature(℃) | -40℃~+85℃ | The open circuit voltage temperature coefficient (Voc/V) | -0.30%/℃ | ||||
| Maximum fuse rated current(A) | 15 | Peak power temperature coefficient（Pmax/W） | -0.39%/℃ | ||||
| Nominal battery operating temperature(℃) | 45℃±2℃ | Maximum static load front（Pa） | 5400 | ||||
| Application level | Class A | Maximum static load back（Pa） | 2400 | ||||
Pv module i-v curve
Best solar panel price 300w 295w 290w solar panel system home
Current-voltage curve
Power-voltage curve
Current-power-voltage curve
| Detailed&Production | ||||
 |
Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) |
|||
|
Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID |
 |
|||
 |
Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection |
|||
|
Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life |
 |
Packing & Delivery
| By sea | Delivery from Shanghai or Ningbo seaport | |||
| By air | Departure from Shanghai Pudong Airport | |||
| By express | By TNT/DHL | |||
|
Payment Term & Delivery Time |
||||
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |
| FOB | ||||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | |||
| CIF | ||||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||
| West Union | Amount lower than 5000usd | |||
| Delivery Time | 7~10days after receiving payment for one containe | |||
Project
Our Company
Service 100 international sales, English,Spain,France Language . we support all time all language service.
|
World Partner More than 20 famous international famous company partner in the world , solar city,Solar world ,Q-Cell ,Tesla ...
|
Capacity Full automatic production line ,all machine import from Germany . now capacity 500MW per year
|
