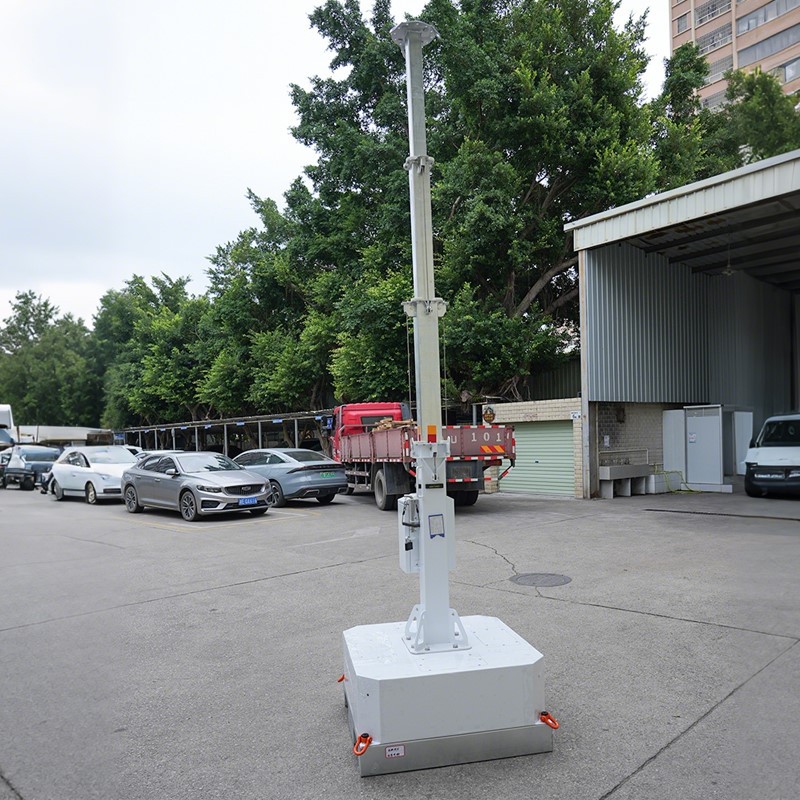

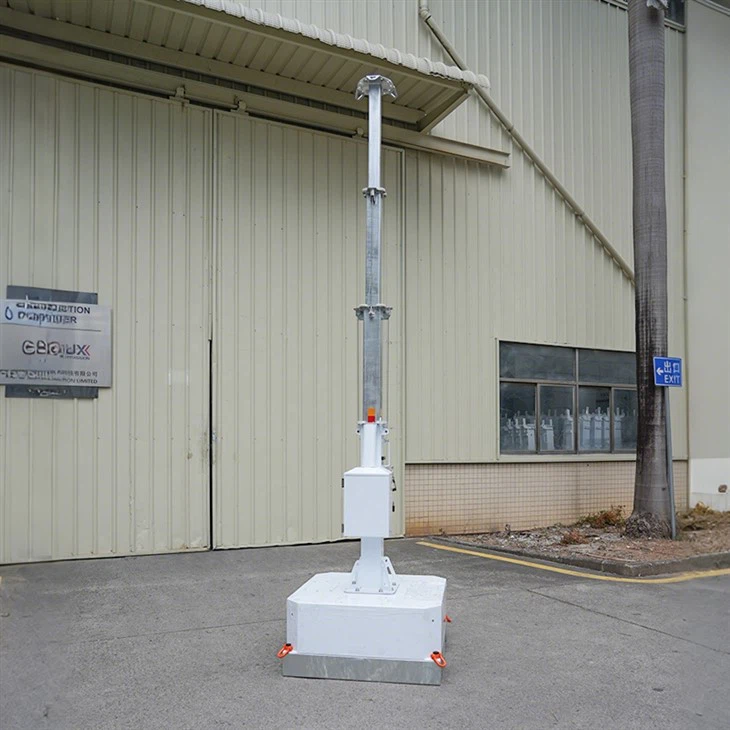

When your application just required a simple monitoring camera, Biglux Mobile Telescopic Mast Pole with HIKVISION Solar Camera is a good choice and can be used for multiple applications.
It is galvanized steel, study enough, and stable enough with total weight over than 250kg itself. It can be relocated easily with the forklift or the crane.
There is an extra space for sands pouring to make it is more stable.
The data of HIKVISION Solar Camera on Mobile Telescopic Pole
|
Model |
DS-2XS6A87G1-LS/C36S80 DS-2XS6A47G1-LS/C36S80 |
DS-2XS2T47G1-LD(H)/4G/C18S40 |
|
Camera |
4/8 MP ColorVu |
4 MP ColorVu |
|
Battery |
360 WH (Modular Battery 90 WH *4) |
180 WH (Modular Battery 90 WH *2) |
|
Solar panel |
80 W |
40 W |
|
Working temperature |
-20 - 55℃ |
-20 - 55℃ |
|
Interface |
1/1 Auadio；1/1 Alarm；DC12V out (12W) |
N/A |
|
Default mode |
Proactive mode |
Proactive mode |
|
Intelligent Functions (Events) |
AcuSense (performance mode), motion detection (performance / proactive mode) |
N/A |
|
Performance mode |
5 days |
2.5 days |
|
Proactive mode |
8 days |
4.5 days |
|
Standby mode |
80 days |
24 days |
|
Performance mode |
4 days |
3 days |
|
Proactive mode |
2 days |
2.5 days |
|
Standby mode |
1.5 days |
1.5 days |
The data for the telescopic mast:
Durable base with 4 forklift holes
The base size is 1*1*0.4 meter with doors on it
3 section 3-meter telescopic mast
4 section 4-meter telescopic mast
5 section 6.5-meter telescopic mast

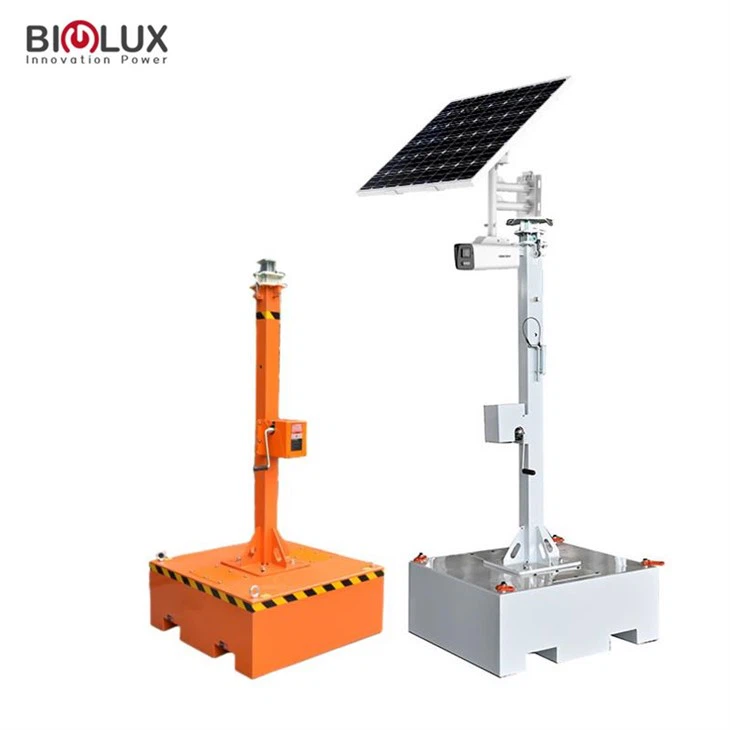

Different color available of HIKVISION Solar Camera Mobile Telescopic Pole
Some camera information for your reference
Solar Panel:
80 W panel; fully charging within 1.5-4 days.
Battery and Smart Power Management:
360 WH (Modular Battery 90 WH *4), built-in rechargeable battery;
automatic recharging and power saving;
Up to 7-day continuous power supply in proactive mode in cloudy/rainy days;
Data Transmission:
Built-in 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) module;
ISAPI; ISUP.
Camera:
4MP/8 MP @ 12.5/15fps
With ColorVu and AcuSense technology
2.8/4 mm lens; 30-meter supplement light.
120 dB true WDR
-20 – 55°C working temperature:
Built-in heater for the battery will start working when the temperature falls below 0℃ to ensure proper function of the system.
Photovoltaic energy industry news for your reference:
According to a study released recently by Brazil's electricity regulator (Aneel), the cumulative installed capacity of distributed PV systems in Brazil has exceeded 20 GW as of April 20, 2023. as of the end of March this year, the country had surpassed the 19 GW mark.
The report notes that today there are more than 1.8 million distributed PV systems connected to Brazil's 5,526 power grids, providing electricity to 2.4 million consumers. And of the total installed capacity of 20.444GW of distributed renewable energy, 20.186GW is installed in PV systems.
The states of São Paulo (2.741GW), Minas Gerais (2.653GW), Rio Grande do Sul (2.131GW), Paraná (1.901GW) and Santa Catarina (1.392GW) are the leading states in Brazil in terms of installed PV system capacity.
The majority of distributed PV systems in Brazil are installed on consumer sites, with a total installed capacity of more than 15.6 GW for the 1.5 million distributed PV systems installed, and the second highest number of remote self-consumption PV systems, with a total installed capacity of 4.4 GW for the 225,000 remote self-consumption PV systems installed, compared to only 109MW.
Residential rooftop PV systems installed in Brazil account for more than half of the installed capacity of distributed PV systems, with a cumulative total of 1.476 million residential rooftop PV systems installed with an installed capacity of 102GW.
New energy sources, such as the photovoltaic industry, are becoming increasingly popular, and Biglux offers renewable energy products that are designed with convenience and multiple use in mind.
The mobile telescopic mast with the base can also install your own device, for example, led solar street light.
If more details, please feel free to contact us.
