Rotate 360°LED light with mobile solar trailer
BIGLUX Solar light trailer provide more power for longer running times and longer autonomous operations. Common applications include mining, construction and large properties with extensive acreage.
Data Sheet
| Model | HL46003L-6.5M-1006 |
| Weight | 1150kg / 2535lb |
| System Voltage | DC24V |
| Work Temperature | -35℃~60℃ / -31℉~140℉ |
Solar System
| Solar Panel | 3 × 460W Monocrystalline Silicon |
Battery System
| GEL | 6 × 200Ah Free-main Deep-cycle |
| Voltage | DC12V |
| Series & Parallel | 2 in series, then parallel |
| Power Capacity | 14400W·h |
Light System
| LED | 4 × 100W Outdoor LED flood light |
| CRI | 3000K |
| Protection Class | IP66 |
| Fixture Efficiency | 150Lm/W |
| Beam angle | 60° X 90°, 80°，110° optional |
Control System
| Solar Controller | MPPT |
| Efficiency | 95%+ |
Mast System
| Body | Steel Q235 Galvanized |
| Type | Square Telescopic |
| Height | 6.5m / 21ft |
| Section | 5 |
| Rotation | Vertical 90° Electric |
| Spring Cable | Power Supply |
| Lifting Method | Manual Winch Lifting |
| Recommended Loading | 5kg ~ 70kg / 11lb ~ 154lb |
| Windproof | 117km/h / 73mph |
Trailer System
| Standard | US / AU / EU |
| Tow Hitch | 50mm / 2'' Ball Type |
| Trailer Light | 7 Pin |
| Warranty | 2 years |

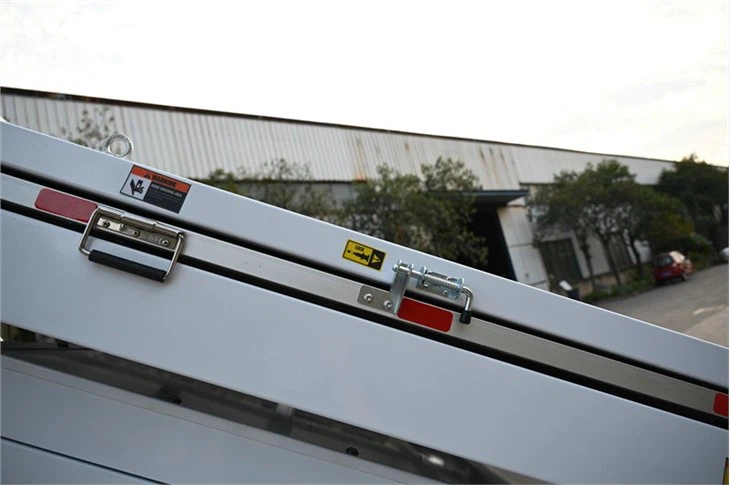

Rotate 360°LED light with mobile solar trailer photos for your reference.
Features
- Six high output LED lights
- A retractable 30-foot tower
- Deploy with manual crank winch
- Rotate the LED LIGHT 360°
- Year-round independent operation
- Automatic and manual operation modes
- Battery powered, solar charged
- Maintenance-free GEL battery
- Adjustable tilt solar panels
BIGLUX mobile solar light trailer are a series of rugged, mobile outdoor lighting and power systems. These portable solar light trailer have a retractable mast and the light can be raised, lowered, rotated or tilted to point the light where it is needed. They have autonomous solar wings to generate clean, free renewable energy, which is then stored in a large suite of on-board maintenance-free batteries to power LED floodlights.
The light trailer is fully adjustable from 8 to 23 feet in height. The lights can be tilted up/down and rotated separately, and the mast can be rotated.
The solar light trailer offers high-intensity, bright white LED lighting. Each model offers an independent solar off-grid system with a high quality solar array; High lumen LED floodlight; And long-life, deep-cycle GEL batteries.
We feature shatter resistant solid state components that are rated IP66 or greater. Our LED lights run up to 5x longer between changes than metal halide lights.
Lights can be timer-controlled. Our systems are installed in an industrial quality portable trailer that can be easily towed to the destination.
BIGLUX solar light towers have been built to suit various industries and provide a broad range of solutions from solar street lamps, metro and mine specification lighting solutions. They provide renewable, low emission, low noise and safe solutions, at a low running cost.
