FIFA World Cup Qatar 2022, is the 22nd FIFA World Cup. It will be held in Qatar and the Middle East for the first time and only the second time in Asia. In addition, the Qatar World Cup is the first to be held in the Northern Hemisphere winter and the first to be hosted by a country that has never played in a World Cup.

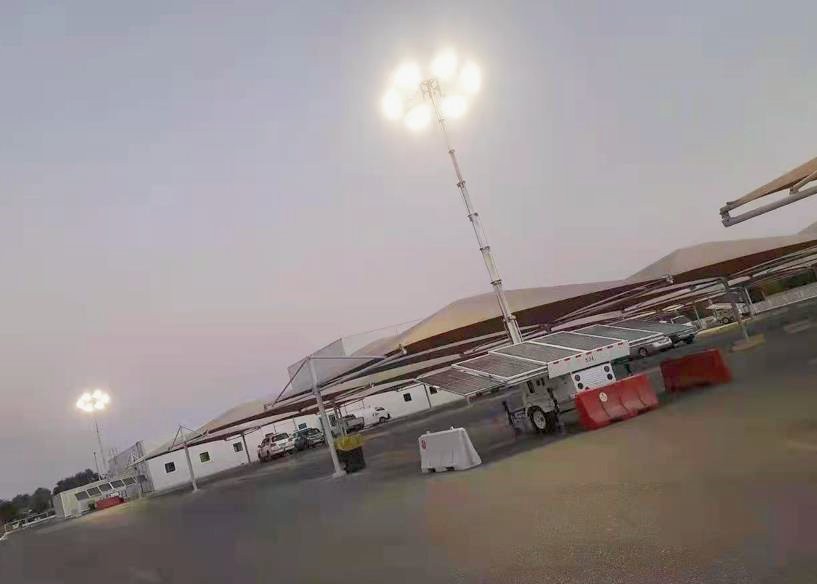

You will find there are many solar light tower trailers in the parking lot of Khalifa International Stadium.
They are Biglux mobile Solar Light Trailers.
Configurations of one type of Qatar World Cup Solar Light Trailer:
| Name: | Solar Light Tower |
| Model: | HL4606G-9H-2006 |
| Powder: | Outdoor Type |
| Transport: | 2600×2275×2400 (mm) |
| Operate: | 3800×6475×9250 (mm) |
| Weight: | 2100kg / 4630lb |
| System Voltage: | DC48V |
| Solar Panel: | 6 × 460W，Monocrystalline Silicon |
| System Voltage: | DC46V |
| Battery: | 8 × 200AH 12VDC |
| Series & Parallel: | 4 in series, then parallel |
| LED: | 6 × 200W outdoor |
| Lumens: | 180000Lm |
| Beam angle: | 20° 40° 60° 90° 110° |
| Solar Controller: | MPPT |
| Efficiency: | 95%+ |
| Body: | Steel Q235 with powder |
| Mast Height： | 9 section 9m galvanized telescopic mast |
| Rotation and tilt: | Horizontal 360° Vertical 90° Electric |
| Spring Cable: | Power Supply wires |
| Lifting Method: | Hydraulic |
| Recommended Loading: | 5kg ~ 100kg / 11lb ~ 220lb |
| Trailer Standard: | US / AU / EU |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Axle: | Single Suspension Bump Brake |
| Outrigger: | 4 × Manual Galvanized |

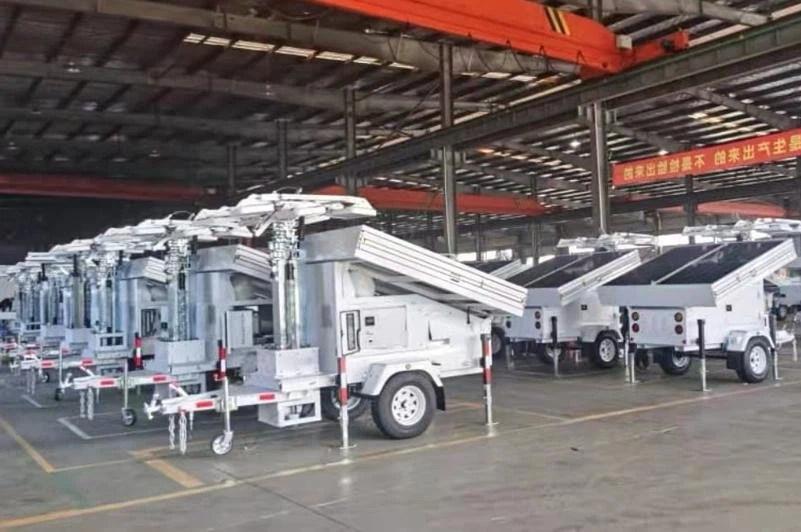

Doing assembly in work shop
Alkassa 800MW photovoltaic power plant adopts 1500V inverter solution of solar power supply. After grid-connection, it becomes the first full-capacity grid-connection photovoltaic power plant in Qatar and the third largest single photovoltaic power plant in the world.
The power station will generate about 1.8 billion kilowatts of green electricity per year, reducing about 900,000 tons of carbon emissions, and supply clean electricity to the 2022 Qatar World Cup stadiums, helping the kingdom of Qatar fulfill its ambitious promise of the world's first "carbon neutral" World Cup.
The project is made up of products provided by several Chinese companies to complete the construction of the integrated solution. During the construction of the project, faced with the pressure of repeated epidemics and harsh construction conditions, we worked together to provide professional project management and refined grid connection service support, and successfully connected the project to the grid at full capacity two months before the start of the World Cup.
Photovoltaic industry of our country realizes the leap-forward development, and the competitive advantage of the industrial chain is highlighted. Among renewable energy sources, photovoltaic power generation has become one of the fastest growing emerging industries in the world with its advantages of safety, reliability, no pollution, high energy quality and short construction cycle. Our country with rich natural resources superiority and advanced backbone enterprises support, blending "photovoltaic + buildings", "photovoltaic + transportation" and "photovoltaic + agriculture and rural areas" scenarios, brings more opportunities for the development of photovoltaic industry.
Biglux is one of those companies. We provide 616pcs mobile Solar Light Tower trailers in FIFA World Cup Qatar 2022. More questions, please feel free to contact us.
