Datasheet
Specification | ||
Output voltage | V | DC24V |

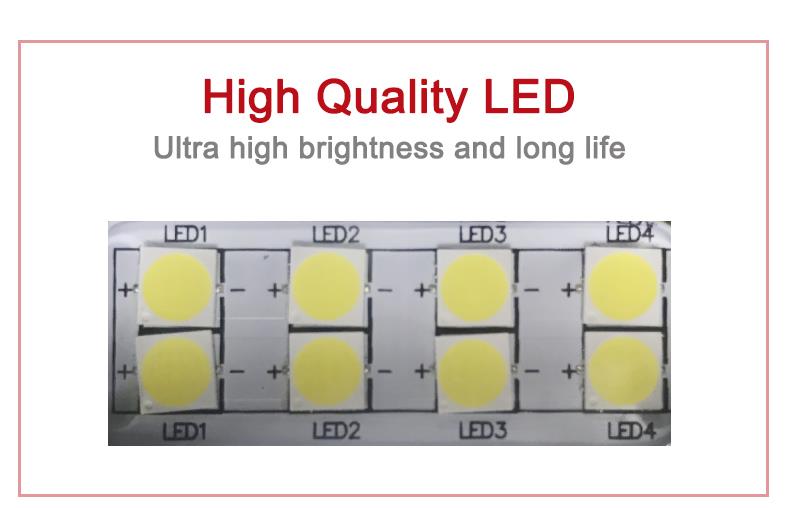

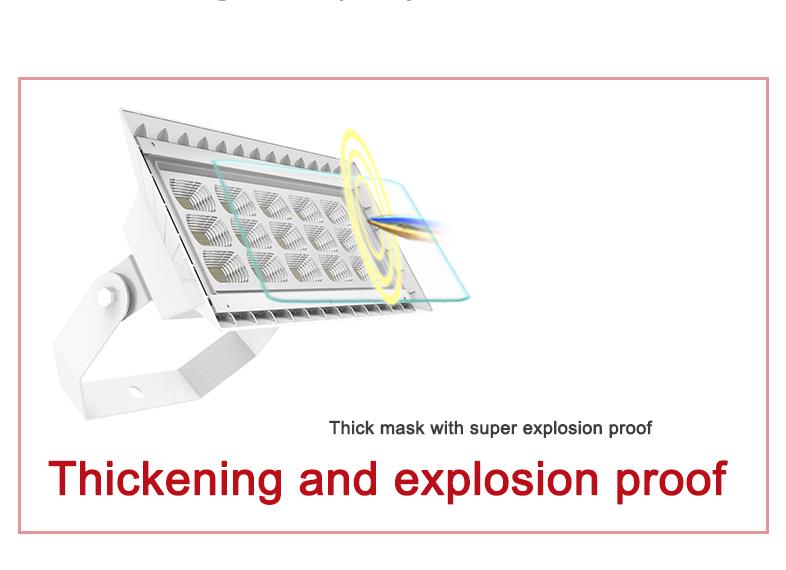

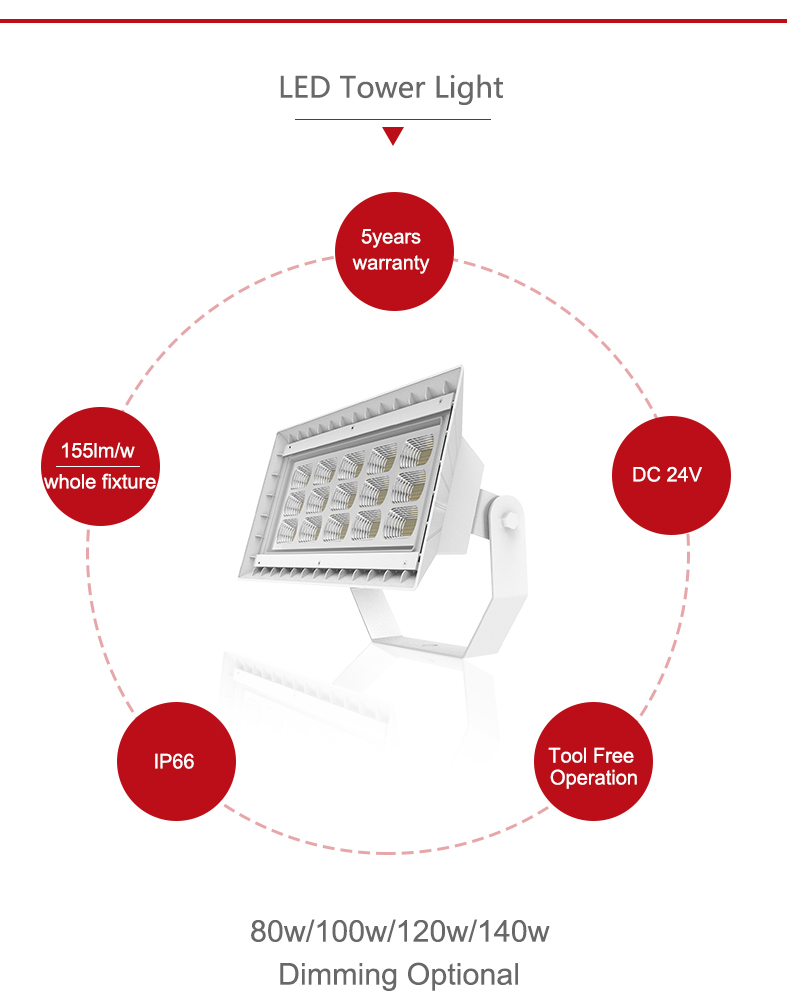

Power of lamp | W | 4*100W (LED,120lumens per watt) |
Mast Height | M | 7 |
Telescoping Mast | By Aluminum, be round | 4 stages lift mast, Mechanical, 360°rotation |
Range of exposures | M | 180 |
Working time | Hour | 12 |
Charging time | Hour | 10 |
Tail light | V | 12V, LTL0801ARW, Australia standard |
Tow | KG | 2000KG, CO2000Z, Australia standard |
Charge controller | A | 30A, 24V, MPPT solar controller |
Winch | LB | Hand winch, 2500LBS |
Tire diameter | mm | 690mm, ST215/70R15C |

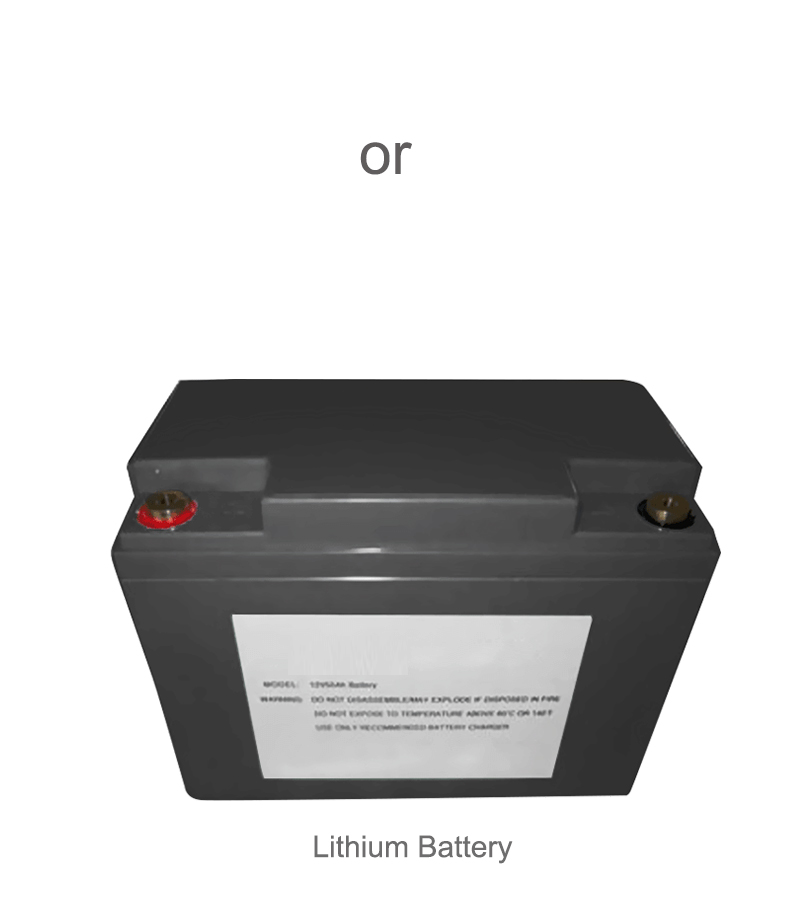

Battery power | AH | 4*120AH/12V |
Dimensions | length×width×height | 2650×1500×1950 mm |
weight | complete appliance | 950kg |
Solar Panel | W | 2*300W Monocrystalline |
Packing | Wooden Box, 5 sets/40ft container | |
Warranty/Life | 1.Whole system: 1 years warranty | |
Product Details
Services
Why choose us?

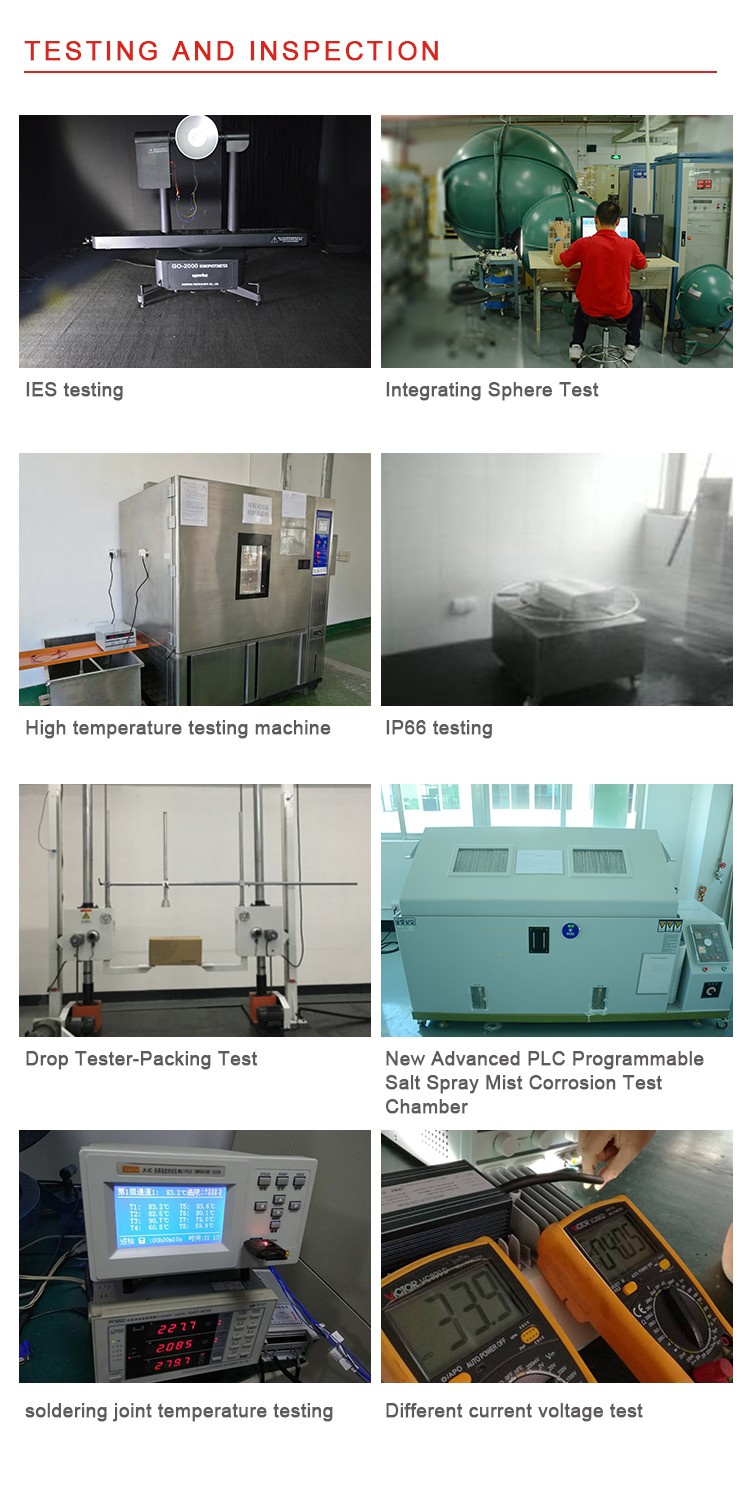

A. Quality Assurance ( ISO9001 Quality Management System)
Quality Check 3 Steps
Raw Material Quality Control
Half Finished LED lights Quality Checks While In Producing Process
Production Finished Quality Checks Before Shipments
100% qualified without defects before shipment.
B. 5 Years Warranty
We guarantee 5 years warranty for whole system for 5 years, during this period, if there is any quality problems (do not caused by vandalism), repair or replacement will be provided freely, and responsible for a life-long repairing.
C. Parts Replacing process
Taking photos of the LED lights performance, send to BIGLUX quality dept.
Fill in the quality information form.
Get the replacement acceptance from BIGLUX.
D. Lead Time
Samples: 5~7 days
Bulk Orders: 15~25 days
