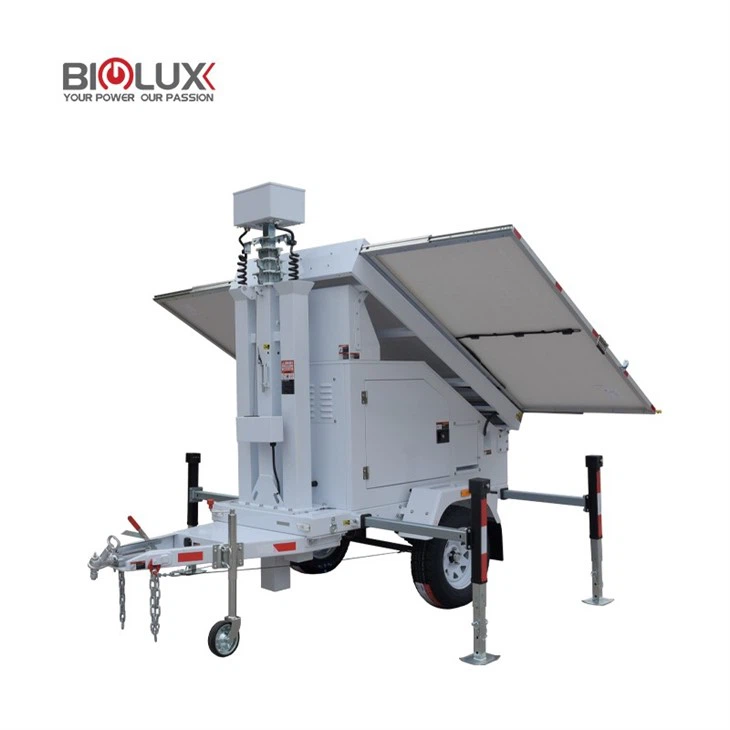

Three Solar Panel Mobile Solar Surveillance Trailer

The cornerstone of the BIGLUX Mobile Surveillance Trailer's independence is its triple-tier solar energy system, composed of three industry-leading 435W Mono-Crystalline solar panels. These high-yield solar modules relentlessly harvest the sun's boundless energy, channeling it to a formidable fleet of six 150Ah GEL batteries, equating to an awe-inspiring storage capacity of 10800W·h. This sustainable power source fuels a lightning-fast charging cycle of just 6.9 hours, ensuring continuous, off-the-grid operation across remote landscapes and uncharted territories.

Atop the trailer sits a fortified CCTV mounting box, enriched with a pair of potent white and blue strobe lights. These strategic illuminators not only facilitate the capture of crystal-clear footage day and night but also serve as a powerful deterrent against potential threats. The CCTV system operates within a DC24V system voltage framework, and within the housing of the mounting box, users can leverage a variety of voltages (12V, 24V, 48V) along with an 8-port POE switch, thereby streamlining camera connections and optimizing network traffic.

Underpinning the structural integrity of the trailer is a robust, square-shaped telescopic mast, expertly forged from tough-as-nails Steel Q235. This mast unfurls gracefully over five retractable segments, ascending to a commanding height of 6.5 meters. The inclusion of a manual winch lifting system enables users to raise or lower the mast with ease, supporting weights up to 70kg while remaining steadfast in winds gusting up to 117kph. This results in a total elevation of approximately 7 meters from the trailer's base to the top of the CCTV mounting box, providing an unobstructed and far-reaching vantage point.

Designed to comply with the most stringent international norms set forth by the US, EU, and AU markets, the BIGLUX Mobile Surveillance Trailer is equipped with a ball hitch for effortless towing on a single axle. Further solidifying its stability during setup, the trailer features manually activated outriggers. Enhancing visibility and safety both on the move and stationary are two high-intensity strobe lights affixed to either side of the trailer body.

The heart of the trailer's energy management system is a hyper-efficient 60A MPPT controller, boasting an unmatched 95% efficiency rate. This intelligent device optimally converts and distributes solar power, and is partnered with a 1.5KW battery charger and a 15A input socket, thereby guaranteeing a prompt recharge and a failsafe backup power supply when required.

Clad in a resilient layer of outdoor anti-corrosive powder coating, the BIGLUX Mobile Surveillance Trailer is constructed to endure the harshest environmental conditions. Demonstrating exceptional stamina, the trailer sustains a continuous run time of three full days when operating at a 120W load, embodying the perfect marriage of energy conservation and operational endurance.
