Solar Trailer With Thermal Camera Professional Protection Made Simple Affordable & Project thermal solutions, for Perimeter
Protection.

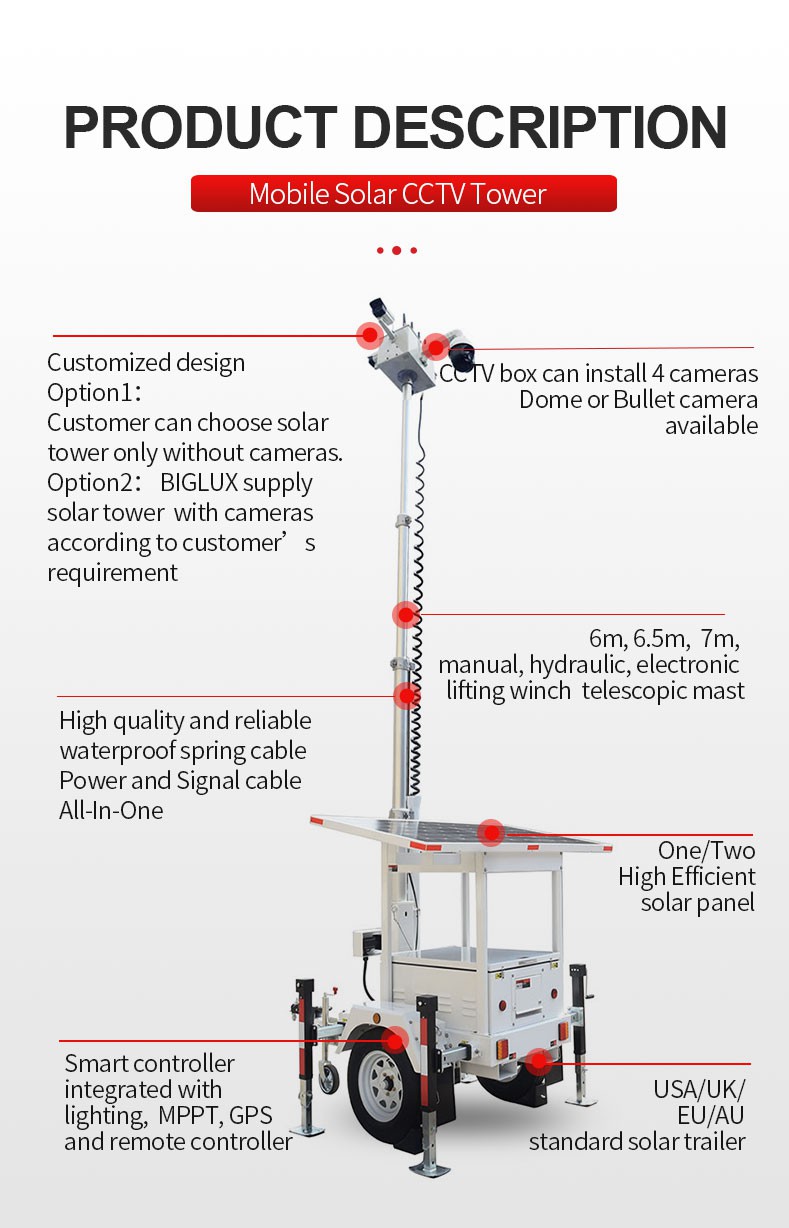

Solar Trailer With Thermal Camera:
What is thermal camera ?
- Any object with a temperature above absolute zero (-273℃) can emit a detectable amount of thermal radiation. The higher an object’s temperature, the more infrared radiation is emitted.
- While invisible to human eyes, this kind of radiation can only be detected by thermal cameras which will produce images (thermo-grams) using temperature differences.
Why we use thermal cameras ?
Thermal cameras can see through :
- Total darkness
- Smoke / haze / smog
- Backlighting / shadows / reflections / headlights / blooming
- Rain / snow / fog
What is Heatpro Camera?
HeatPro series thermal cameras make the invisible IR “visible” , so they can “see” targets in any light or weather
conditions.
Suitable for SMB scenarios of perimeter prevention and fire detection with high accuracy in 24 horas, even in complicate
environment, each camera have longer VCA distance than traditional optical camera.
VCA 2.0 is an intelligent, video content analysis technology, based on deep learning algorithms, which detects targets
and classifies them into human or vehicle and filters out others.
How to calculate the battery life?
WH / W = H
Take the left system for example: Battery life in cloudy/rainy days = 360 WH / (4 W + 5 W) ≈40H
With time reduced by 70% , the set up is far easier.
No need to Calibrate manually with one person configuring and another person walking in front of the camera.
Presence detector HM-TD1018-1/QR
Multiple function detector
• Built-in radar for fall detection
• People number exception alert
• Exit without return detection
• Out of bed/room detection
• People overstay detection
• Audio exception
• Dual way talk
Privacy protection
• Thermal image only. Perfect to protect privacy
• GDPR risk-free
Wide coverage
Wide coverage
• Thermal FOV: 90x65°(H*V)
• Radar FOV: -45~45°, -45~45°(H*V)
Interface
• Standard SIP for two way talk
• ISAPI for 3rd party integration
• Compatible with HCP and Hik-connect for basic function
• PoE; DC12V
Function
01 Audio Exception Alarms when screaming is detected. The care center will be notified if abnormal audio is detected.
02 People number exception Alarm when people number meets the predefined value. When unexpected person breaks in, or overstays, it will alert the care center.
03 Two way talk Standard SIP protocol for two way talk When care center receive alarms, nurse can start two way talk to have a quick check with the elderly.
04 Privacy protection Thermal image only, GDPR risk free Support privacy mask.
05 Fall detection Built-in fall detector radar. When people fall down and can not get up within predefined time, an alarm will be triggered.
06 Out of Bed/Room Alarms when elderly people get out of bed/room Rule can be set during the night to alert the care center as a pre-warning.
07 Leave without return Alarm when elderly people leaves and can’t return in time.
08 People overstay detection Alarm when people stay in the drawn area for over long time.
Thermal & ColorVu Camera
DS-2TD2608-1/QA
DS-2TD2608-2/QA
|
Thermal & Optical lens
|
Thermal: 96 × 72 resolution, 12 μm
Optical: 4MP 2688 x 1520 resolution
|
|
24/7 vivid colorful images
|
Warm light supplement, less light pollution
White Light Range: Up to 30m
|
|
Affordable
|
These camera series can be widely applied to villas, communities, parks…
|
|
Real-time notification
|
Strobe light and audio warning
Built-in speaker
Perimeter protection: accurate detection and vehicle &
human classification
|
DS-2TD4228(T)/S2
|
Models for selection
|
Resolution: 256×192 Lens: 7mm/10mm
Temperature Range: -20~550℃, max (±2℃，±2%)
Pixel Pitch: 12μm
|
|
Speed dome upgrade
|
2MP 4MP Optical PTZ Resolution 36X Zoom Ratio, Hi-PoE 100m IR distance
|
|
Reliable Design
|
IP66 standard TVS 6Kv lightning Protection, surge protection
|
DS-2TD4238/S2
|
Models for selection
|
Resolution: 384×288 Lens: 4mm/7mm/10mm/25mm
Temperature Range:-20~150℃, ± 8°C Pixel Pitch: 17μm 12μm
|
|
Speed dome upgrade
|
2MP 4MP Optical PTZ Resolution 36X Zoom Ratio, Hi-PoE 100m IR distance
|
|
Reliable Design
|
IP66 standard TVS 6Kv lightning Protection, surge protection
|
DS-2TD45x8/W
|
Models for selection
|
Resolution: 384×288/640×512 Lens:25mm/35mm Temperature Range:-20~150℃, ± 8°C
|
|
Speed Dome
|
4MP Optical PTZ Resolution 25X Optical zoom ratio (4.8-mm120mm) Full-screen VCA by default 100m IR distance
|
|
Data transmission
|
Built-in 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) module and available connect to WIFI ISAPI; ISUP Up to 256GB SD Card
|
|
Customized Design for Vehicle
|
Built in GPS for locating DC8-36V voltage tolerant power supply IP66 standard TVS 6Kv lightning and surge protection E-MARK, EN45545 certificated
|
DS-2TD46x8(67T)/W
|
Models for selection
|
Resolution: 384×288/640×512 Lens:25mm/35mm 46x8:-20~150℃, ± 8°C 4667T:-20~550℃, max (±2℃，±2%)
|
|
Speed Dome
|
4MP Optical PTZ Resolution 25X Optical zoom ratio (4.8-mm120mm) Full-screen VCA by default 100m IR distance
|
|
Data transmission
|
Built-in 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) module and available connect to WIFI ISAPI; ISUP Up to 256GB SD Card
|
|
Portable Design for Vehicle
|
Built in GPS for locating Equipped with high suction magnets at the bottom, easy to install Working ＞9h (Recording only) with 10500mAh Lithium
battery Quick charge ＜6h when shutdown IP66 standard E-MARK, EN45545 certificated
|
DS-2TD71x8/W
|
Models for selection
|
DS-2TD71x8/W: 640×512@55mm/75mm 1280×640@55mm/75mm
|
|
360° Panoramic View
|
Frame rate: ½ fps Auto-tracking activated when VCA triggered Scan Lifetime: 30M times
|
|
Reliable Design
|
TBD
|
DS-2TD966A-ZK2FD/W(B)
|
High definition & Long focal length
|
Thermal: 640*512, 15μm& 2MP Optical Thermal lens: 45~450mm 35~750mm 110~1100mm Optical lens: 10-1000mm
|
|
Super Long detection distance
|
Ships 32km detection/28km recognition distance (20x5m) Vehicle 25.7km detection/16.2km recognition distance Human 22km detection/9.8km recognition distance (B): 20km laser ranger finder
|
|
Accurate and fast control
|
High accuracy PTZF control for radar, (0.01°) High accelerated speed: 120 degree/s²
|
|
Rugged design for various scenarios
|
Start-up time≤7.5min; 8000 hours cooler lifetime schedule and usage threshold setting to save lifetime Sphere space: IP 67; Base:IP66 Anti-corrosion painting Deicing heating Defog/defog on Thermal& optical channel
|
DS-2TD9867-50C2F
|
High definition & Long focal length
|
Thermal: 640×512, 17μm pixel pitch, 50mm lens Optical: 2MP, 5.9 mm～135.7 mm, 23X
|
|
Gyro Image Stabilization System
|
Integrated with gyro image stabilization system for stable image High-precision two-axis gyro stabilization technology Stability Accuracy: ≤10mrad (RMS)
|
|
Accurate and fast control
|
Pan: 360° Continuous Rotate, Tilt: -90° to +90° Dual channel auto tracking by schedule
|
|
Rugged design for various scenarios
|
IP66; Spherical design enhances the wind resistance of the turret Shipboard vibration resistant MIL-STD-810G (vibation), IEC60945 (anti-corrosion)
|
Shipborne Thermal Mobile PTZ camera integrates high- precision transmission system and gyro image stabilization system, and are equipped with infrared detection and optical imaging devices, which can quickly search and accurately locate targets in the three-dimensional area of sea, air and shore, and are suitable for shipborne application.
It has a good human-computer interaction interface and a wealth of external control interfaces, which can be seamlessly connected with the carrier control system.
DS-2TD9867-50C2F has a wide range of applications in non- military fields such as electric power inspection, forest fire prevention, environmental detection, maritime search and rescue, and evidence collection.
BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years, Our products mainly include mobile solar power tower fully featured with lighting tower, CCTV security trailer, telecom tower and power charging trailer.
