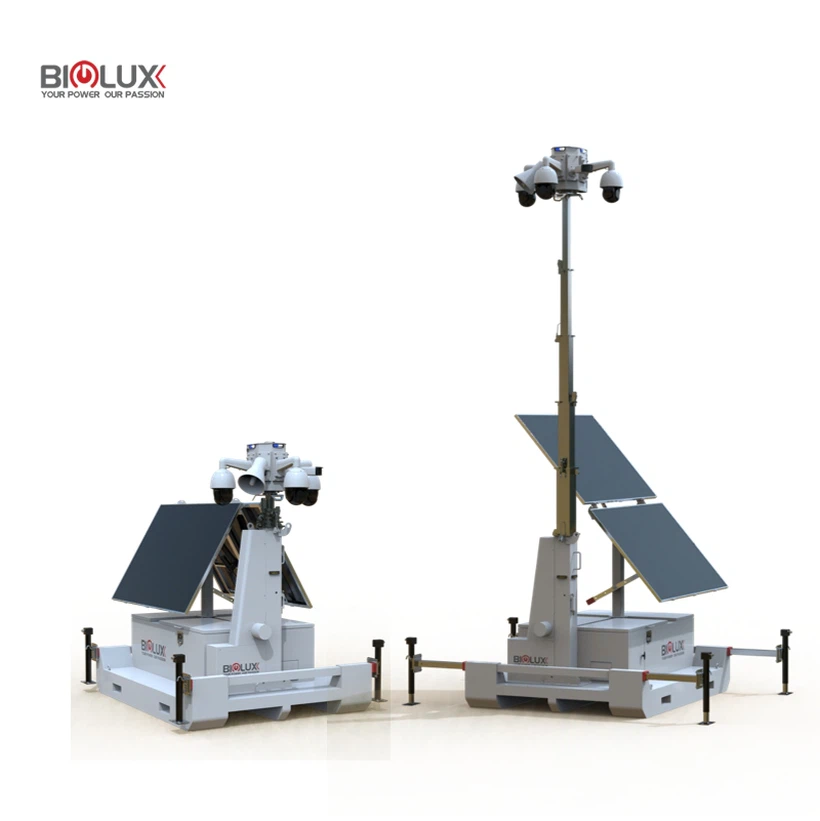

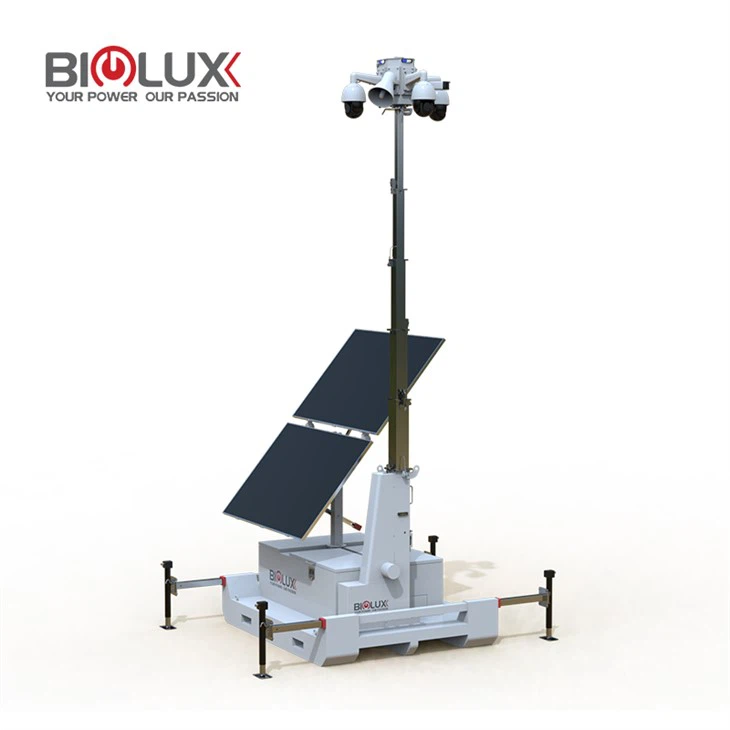

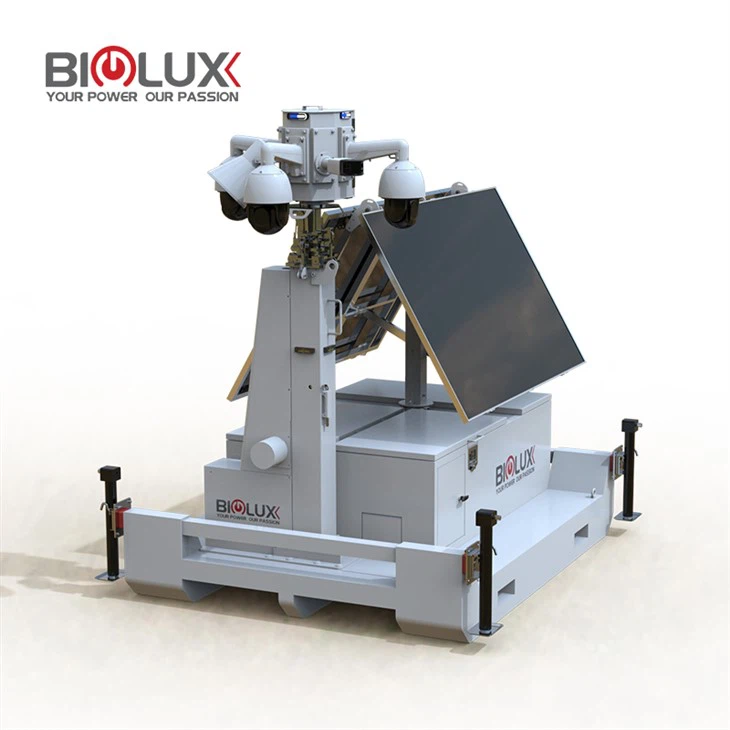

Skid Solar Surveillance Tower
Biglux skid solar surveillance tower is combined with a mobile skid base, a solar system, a tower and CCTV system. With the mobile skid base, the whole tower can be relocated easily.designed for remote monitoring in areas where conventional power and infrastructure are unavailable or impractical to use.
Some Key Features:
Mobile Skid Base:
Skid-mounted for easy transport using forklift or crane because of designed forklift holes and lifting rings.
Durable construction to withstand harsh environmental conditions, hot-dip galvanized and then painting.
Compact and low-maintenance design for long-term deployment.
Heavy base, 4 outriggers, to make the tower very stable.
Solar Power System:
High-capacity solar panels for sustainable energy. And the solar panels can be rotated for deploying the whole tower easily, regardless the direction.
With PV controller, the generated electricity power will be stored in the battery for powering the CCTV system.
GEL/Lithium batteries for your choice.
Extendable Tower:
Hot-dip galvanized Telescopic mast tower with manual or electric lifting, help the equipment on the top to cover a large area. Wind-resistant stability, and fasten wind-proof ropes for you.
The cables are built inside the telescopic mast for better protection.
CCTV System Equipment:
Such as High-definition cameras (thermal, infrared, or optical zoom), 4G/5G router, NVR, speaker, etc for your option.
Usually we use HIKVISION or UNIVIEW cameras, with funcions of remote control: Wireless communication (4G/5G, Wi-Fi, or satellite); Cloud-based or local storage options for footage; Real-time monitoring and control via mobile apps or desktop interfaces.
Mounting Box:
If you will install the camera system locally, don't worry, we prepare the 6-sides waterproof mounting box for you.
There are strobe lights installed and a POE switch matched.
Rotation is optional.
| Brand Name | BIGLUX |
| Model Number | BL2P-SK |
| Application | Industrial, construction, commercial |
| Solar Panel | 2pcs 450W or 600W dual facial Monocrystalline Silicon solar panels |
| Battery | GEL or LFP batteries, 9600Wh or 12000Wh |
| Controller | Epever or Victron brand MPPT controller, high efficiency |
| Mounting Box | 6-sides mounting box |
| Cameras (Optional) | Optional (for example 1-2 Dome camera, PTZ, and 1-2 bullet) |
| LED Light | Optional |
| Mast | 7 meter or 9 meter manual/electric lifting square galvanized steel telescopic mast |
| Base | 4 Forklift holes on the durable base |
The tower can be moved using forklifts or cranes. Some applications prefer the skid type because the end user wants the tower to remain fixed and not be removed after deployment. However, for different applications, this skid type can be mounted on a trailer for relocation if necessary. Alternatively, we can directly provide a trailer type to meet your needs. For more details, please contact us.
