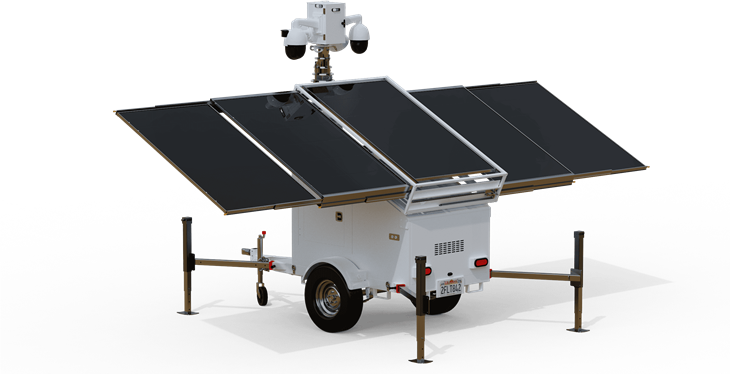

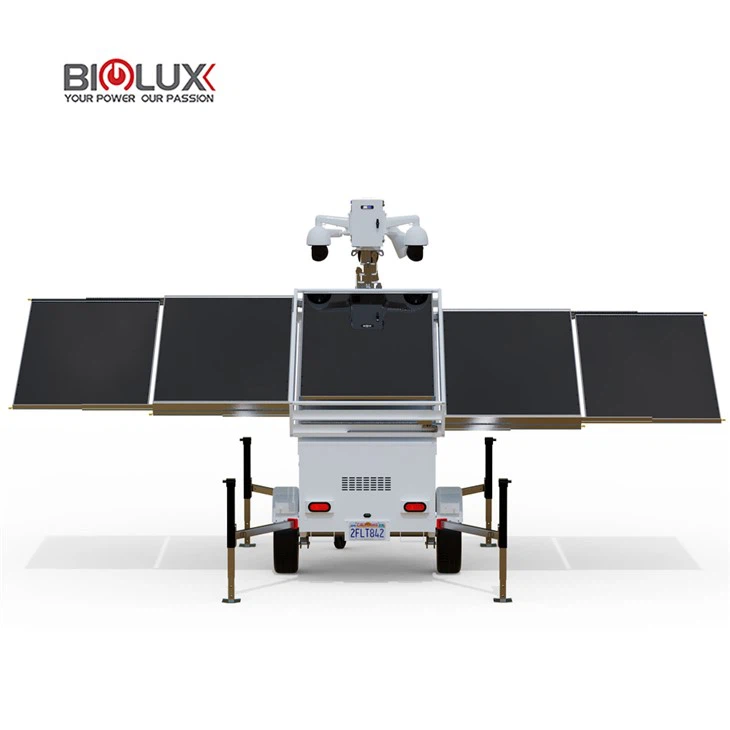

Rapid Deployment Security Trailer 5*450W Solar Panels Mobile Powered CCTV Trailer For Mining Site
| Solar Pane | 5 × 450W solar panels, Double-sided |
| Battery | Lth Battery 19200W·h |
| Cable | net cable+power cable with waterproof connectors, Build inside mast |
| Mast | Steel Q235,Square Telescopic type, 7or 9 meters, Electric Winch Lifting, 70kg Load,Built-In Wire. |
| Trailer: | AU/US/EU Standard, 4*Manual Outrigger, 6*forklift holes, with two strobe lights on each side of trailer. |
| MPPT Controller: | European Brand Victron 45A MPPT |
| System Voltage: | DC48V |
| Container loading: | 3units for 20' GPcontainer, 7units for 40' HQ container |
| generator | Auto-Start Hybrid System with Pull-out Easy Operation Design and 3KW diesel genset |
| Running Time | fully charged batteries can support 110W device working 140 hours (80% DOD) |
Key Advantages
Long Running Time
Charging Time: 7.1 hours with good sunshine theoretically (80% DOD)
Running Time: fully charged batteries can support 110W device working 140 hours (80% DOD)
Multiple Power Supply Way
Auto-Start Hybrid System with 3KW diesel genset.
Solar panels:5*450W
Battery:19200Wh Gel or 20480Wh Lithum
AC Charger: 2.5KW installed charger with plug and socket
Energy Independence – Grid off
100% Solar-Powered to Operate Beyond the Grid. Unlocks security capabilities in remote areas with no existing infrastructure.
Fully Automated, Zero Daily Maintance
Integrated batteries ensure 24/7 operation, day and night. Smart systems enable remote monitoring and control via 4G/5G networks.
Extreme Condition Withstand
Always-On Reliability, Regardless of Weather. Dual safeguards in power and comms ensure your surveillance never stops, even in the toughest conditions.
Portable & Mobility& Deployment Easy
Can be installed and operational within hours. Mounted on trailers or modular platforms for easy relocation as needs change.
High Performance, Lower Cost
No electricity costs or trenching cables required. Low maintenance due to simplified design and durable components.
Environmental Friendly
Clean Energy Operation, Zero Operational Emissions. Leveraging renewable power to actively minimize environmental impact.
Product detail
Removable and Rotatable CCTV Box
The CCTV enclosure is engineered with six-sided construction, a detachable mounting plate, 360° rotation, rear service access, an integrated cooling fan, and four strobe lights. This configuration enhances operational flexibility and performance by enabling rapid on-site deployment through streamlined workflows, while the removable panel and rear access panel collectively simplify both installation and ongoing maintenance procedures.
Hot-Dip Galvanizing Technology
The main components of the solar surveillance tower utilize hot-dip galvanizing, which is three times thicker than electroplating. This design ensures high corrosion resistance against external wear and rust.
Built-in cable Design
With built-in wiring that simplifies setup, a 9-meter reach for optimal visibility, and full hot-dip galvanization that resists rust, this mast is built for tool-free installation and maintenance-free operation in demanding conditions.
