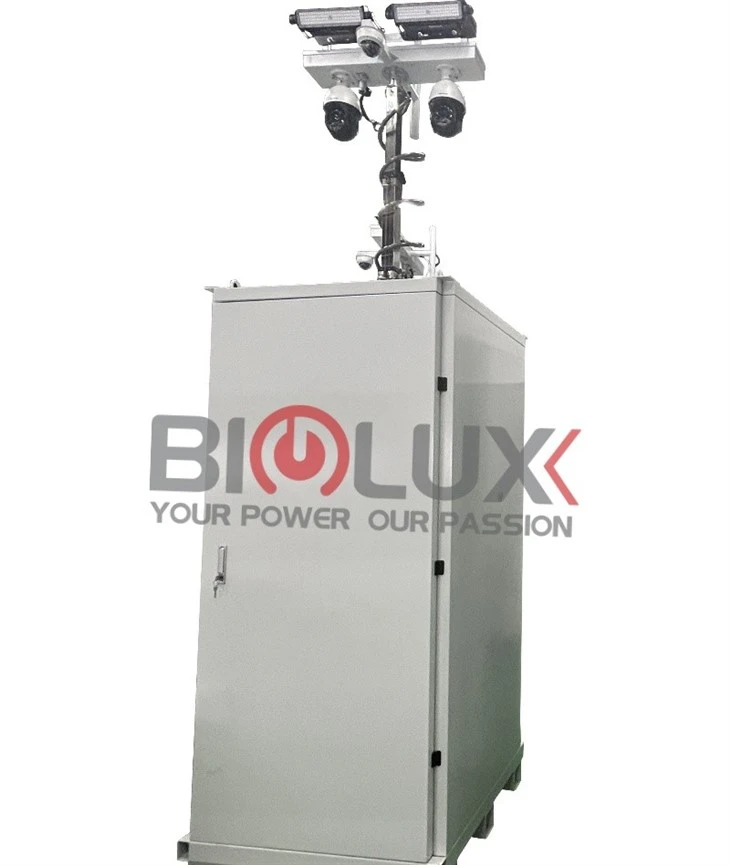

HiCUBE-IIPortable Surveillance Tower (with green LED light)
HiCUBE-II Portable Surveillance Tower comprises a camera system, LED green lights, loudspeakers, a lifting system, a transmission system, and a power management system. All in one integrated design, Easy to operate.2 PTZ cameras 360°rotation and one dome camera achieve all-round monitoring without blind spots. Telescopic mast lifting to 6 meters. LED green light is super bright. With 4G transmission. PTZ camera rotation and LED lights can be controlled online. The system supports regional intrusion alarms. When people come near the tower, it will give an alarm. Built-in battery, support battery power supply, and AC220V / AC110V charging. AI functions such as face recognition, safety helmet detection, and smoking detection can be customized.
active members
years experience
events & challenges
expert instructors
Features :
● Front-end data mobile acquisition device.
● High resolution cameras 1920*1080P, 20x / 30x optical zoom.
● Support intrusion detection, cross-border detection, mobile detection, etc.
● Support intercom. Remote talk.
● High prevention effect due to special green light LED headlights.
●Significant deterrent due to the presence of distinctive green flood lights.
● Back-end storage and control system.
● Integrated video analytics software and alarm platform
● State-of-the-art video compression for real-time image transmission.
● Battery power supply, solve the issue of no electricity at the site.
● Battery easy to take out, easy to charge.
● Battery information displayed on the video. remote control LED green lights on /off.
● Easy to transport with the forklift.
● Manual lifting telescopic mast, extend height up to 6m.
CONFIGURATIONS:
|
Camera parameters |
|
|
Model |
2 HD PTZ cameras + 1 Dome camera |
|
Resolution |
1920×1080P |
|
Frame rate |
25/30 fps |
|
Audio video compression |
H.264/H.265 |
|
Optical zoom |
20x |
|
Rotation Speed |
Pan preset speed |
|
Pan/Tilt range |
Pan: 360°,Tilt: -25°～+90° |
|
Network port |
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) |
|
Audio mode |
External active microphone or linear input, linear output |
|
Network protocol |
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP, UDP, IGMP, ICMP, ARP |
|
Dual stream |
Support |
|
Video parameters |
|
|
Video input |
4 channels network 1080P, Aviation connector |
|
Video output |
1-way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω |
|
Preview function |
1 way ,4 screens splicing preview, support manual/ Event trigger full-screen display function |
|
Video resolution |
Support 1080P,720P,D1,HD1, CIF optional, support up to 4-way 1080P. |
|
Audio input |
4 way, Aviation connector |
|
Audio output |
1 way |
|
Compression format |
G.711, rate 8KB/s |
|
Alarm Output |
2-way switch output linkage sound and light alarm, cut off oil, etc. |
|
Communication interface Communication interface
|
2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc. |
|
2-way 485 interfaces, Expandable PTZ |
|
|
2way CAN bus interface |
|
|
Wireless transmission |
4G wireless transmission function, TDD-LTE, FDD-LTE |
|
Video storage |
Supports large-capacity 2.5-inch hard disk (up to 2T) |
|
Input voltage |
DC:+8V ~ +38V |
