1200W solar panels powered mobile surveillance trailer with high definition cctv cameras and starlink for working site security monitoring
Mobile solar cctv trailer with solar panels specification：
Base System
| Model | BL2P-G9EHSSOP |
| Transport | 4037*1630*3100mm |
| Operate | 4037*3246*9350mm |
| Trailer Weight | 1100KG |
| System Voltage | DC 24V, 48V |
| Protection Level | IP65 |
| Working Temperature | -20℃~55℃ |
Solar System
| Solar Panels | 2 * 600W Monocrystalline Silicon |
| Solar Voltage | DC24V |
| Protection level | IP65 |
| Salt and Ammonia Resistance Certified | |
| Anti-reflective and anti-soiling surface | |
| Reduce power loss from dirt and dust | |
Battery System
| GEL batteries | GEL, 12000Wh, Free-maintenance, Deep-cycle |
| Batteries Voltage | DC12V |
| Series & Parallel | 2 in series, then parallel |
| Power Capacity | 12000WH |
Ventilation System
| Electric Fan | 80W 10'' Auto-start |
| Voltage | DC24V |

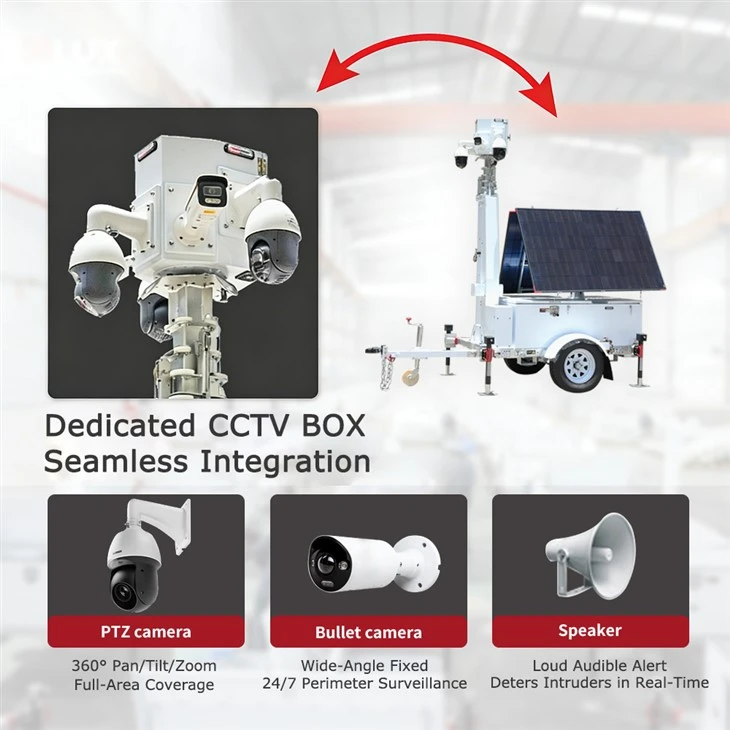

CCTV System
| Box | Square Type |
| Device | PoE Switch Transformer 9V-56V |
Control System
| Controller system | MPPT, 45A |
| Controller Efficiency | 95%+ |
| Controller Detection & Protection | Short-Circuit,Overload,High Voltage,High Temperature |
Mast System
| Mast | Steel Q235,Galvanized |
| Type of the mast | Square Telescopic |
| Height of mast | 9m / 30ft |
| Lifting Method of mast | Electric Winch Lifting |
| Spring Cable of mast | 2 * Cat6 + 2 * Power Supply |
| Recommended Loading of mast | 5kg ~ 100kg / 11lb ~ 220lb |
| Windproof of mast | 117km/h / 91mph |

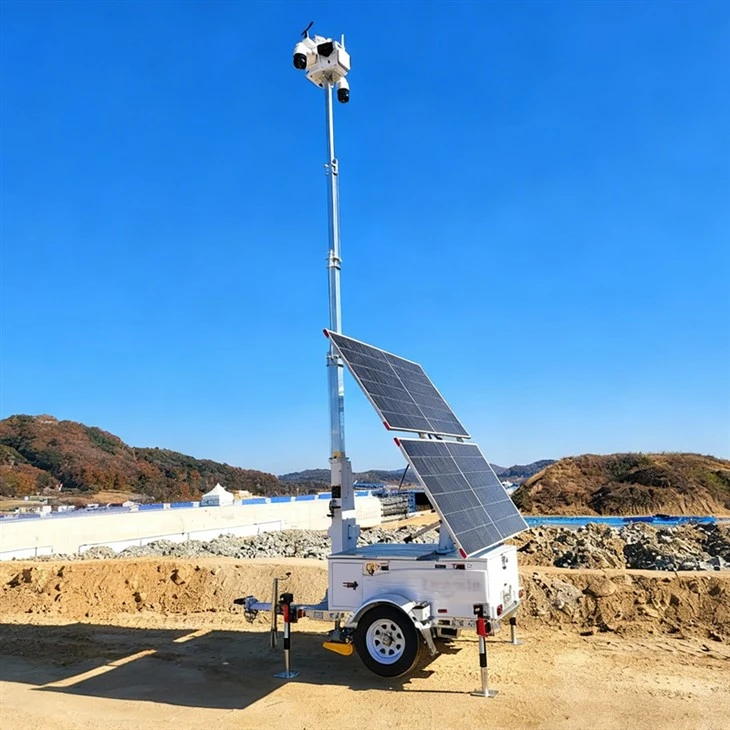

Mobile cctv trailer with solar panels photo for reference.
Marketing News
BIGLUX Offers a True Mobile Surveillance Trailer With Solar Solution
It is common to see solar panels on mobile surveillance trailers. Because it is now popular to use solar energy to charge batteries will reduce the amount of petrol or diesel consumed and lengthen the time between filling up.
However, not all mobile solar surveillance trailers are created same. Different with other mobile solar surveillance trailer equipment products, the BIGLUX mobile solar surveillance trailer continuously optimizes the power benefits of solar energy and is designed to be extremely easy to operate and deploy.
Maximum Power and Efficiency
BIGLUX uses the highest quality 600W solar panels with Bifacial monocrystalline silicon. Solar panels made by longi convert sunlight into usable electricity more efficiently than conventional solar panels, generally performing better in low-light conditions as well as at high temperatures.
Each mobile solar monitoring trailer includes a professional industrial grade MPPT(Maximum Power Point Tracking) solar controller that converts all solar voltage into usable electricity. With a maximum conversion efficiency of 95%, MPPT can maximize the conversion of solar energy into electricity.
Simple operation and deployment of the system
One person can easily deploy the system -- no tools required.
Durable panels are easy to store and protect surfaces when in transit or not in use.
Easy for you to move and deploy quickly, and very stable.
The solar panels are mounted on a frame and secured to the trailer using safety bolts.
Salt and Ammonia Resistance Certified.
Anti-reflective and anti-soiling surface.
Reduce power loss from dirt and dust.
Wherever the trailer goes, so goes your solar monitoring system.
Say goodbye to removing heavy panels before transporting the mobile surveillance trailer to a new place. All BIGLUX solar panels and frames are securely attached to the top of the trailer, along with a telescopic mast that allows you to install different monitoring devices as you need them.
This article is part of an introduction to the Mobile Solar Surveillance Trailer introduce how the BIGLUX Mobile Solar Surveillance Trailer achieves maximum efficiency and reliability of solar panels.
Biglux CCTV solar trailer is designed to meet various needs for survillance, communication, lighitng and power.
Innovation Driven:At BIGLUX, innovation extends far beyond the new technologies it applies in its mobile solar energy solutions. Innovation encompasses many breakthrough thought when managing all aspects of its product design and development processes. Innovation Applied:Through its R & D team comprising engineers from USA as well as technology partnerships with leading materials suppliers, BIGLUX helps its engineers stay at the forefront of the industry by delivering products and solutions that utilize the latest technologies, materials and manufacturing processes.
Innovation Delivered: By utilizing abundant available resources namely raw materials, work force and sub assembly resources from China, BIGLUX is able to provide highly COMPETITIVE pricing compared with products of same class and technology.
►Incident Management
►Disaster Recovery Monitoring
►Business Continuity Management
►Monitoring of Regulatory Enforcement
►Supplementing static guards and patrols
►Event Security and Crowd Monitoring
►Building Sites (Protection of Assets and Site Management)
►Occupational Health and Safety Compliance
If you'd like to know more about mobile solar surveillance trailer, we'd be happy to answer your questions.
Or just view our website directly https://www.bigluxled.com to get right solutions.
Hot Tags: mobile surveillance trailer with solar panels, China, manufacturers, supplier, factory, wholesale, low price, made in China, low carbon, construction site
