Products Details
- Starlink-Compatible & AI-Powered Smart Surveillance: Seamlessly integrates with Starlink for global remote connectivity, enabling real-time data transmission even in off-grid areas without cellular coverage. The built-in 8-Port POE switch supports easy access to AI-enabled cameras (e.g., anomaly detection, motion tracking), turning the trailer into an intelligent security hub that reduces manual monitoring costs.

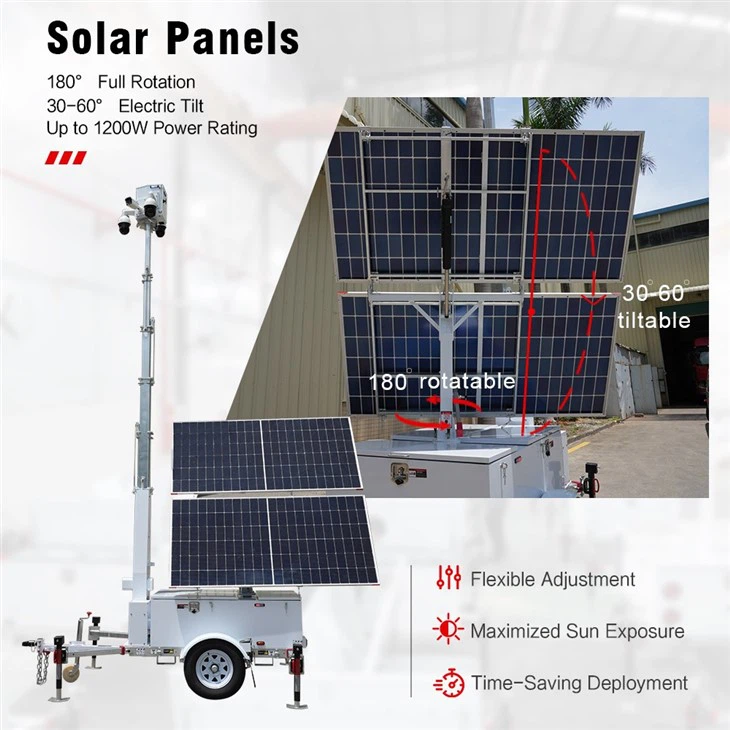

- Renewable Energy Efficiency with Adaptive Solar Harvesting: Equipped with dual-facial monocrystalline solar panels (up to 1200W total) featuring 180° manual rotation and 30°-60° electric tilting, allowing self-adjustment to align with the sun's path for optimal energy capture. Paired with smart MPPT controllers (with remote battery monitoring) and long-life GEL/LFP battery packs, it delivers 72 hours of continuous operation under full load-ideal for 24/7 off-grid security without relying on grid power.
- All-Climate Durability & Low Maintenance Design: Key components (telescopic mast, trailer chassis) adopt hot-dip galvanization (3x thicker than electroplating) for superior corrosion resistance against salt spray, humidity, and extreme temperatures (-20℃ to 55℃). With IP65 waterproof rating, reinforced joint sealing, and tamper-proof internal wiring, the trailer withstands heavy rain, dust storms, and vandalism, requiring minimal maintenance over its extended service life.
- Rapid Deployment & Flexible Mobility: Designed with US/EU/AU standard single-axle trailer chassis, foldable tow bar, and integrated forklift holes/lifting rings, the unit can be transported and set up in minutes-no complex infrastructure required. The 4 foldable Y-shaped outriggers ensure stable placement on uneven terrains (construction sites, mining areas, remote perimeters), making it perfect for temporary or short-term security needs.
- Long-Lasting Power Supply with Dual Battery Options: Offers flexible battery solutions (GEL: 9600Wh/12000Wh; LFP: 8038Wh/14336Wh) to match different usage scenarios. The LFP variant boasts exceptional low-temperature resistance and longer cycle life, while the GEL option provides cost-effective reliability. Both support 72-hour continuous operation under 90W/133W loads, ensuring uninterrupted security even during prolonged cloudy weather.
- Multi-Scenario Adaptability for Industrial & Civil Use: Versatile enough for construction sites, mining/oil fields, parking lots, traffic hubs, residential communities, and emergency response. Its mobile design allows quick relocation between job sites, while the oversized storage trunk (8 sq ft) accommodates tools, spare parts, and expansion accessories-ideal for rental services, temporary event security, and long-term perimeter monitoring.
- Customizable Solutions to Meet Diverse Needs: Supports personalized customization including color/LOGO branding, battery type selection (GEL/LFP), telescopic mast height (7m manual/9m electric), and optional accessories (AI cameras, NVR, 4G router, loudspeaker). The rear-opening, 350° rotatable CCTV box simplifies camera installation and maintenance, adapting to specific security requirements of global clients.
- Cost-Efficient & Eco-Friendly Off-Grid Operation: Eliminates reliance on diesel generators or grid power, reducing carbon emissions and long-term energy costs. The system's energy-saving design (AI-powered load management, high-efficiency solar conversion) and 2-year warranty (covering solar panels, battery, and controller) provide a low-risk, high-return investment for businesses seeking sustainable security solutions.
Products Specifications
| Product | HiSOLO Mobile Solar Surveillance Tower Trailer | |||
| Models | BL2P-G7MHSS0B | BL2P-L7MHSS0B | BL2P-G9EHSS0P | BL2P-L9EHSS0P |
| Solar Panel Type | Monocrystalline Silicon Type, Dual Facial, 180° Manual Rotating, 30°-60° Electric tilting | |||
| Solar Panel Wattage | 2*450W | 2*600W | ||
| MPPT Controller | 50A MPPT (With Remote Battery Monitoring) | 150/45A MPPT (With Remote Battery Monitoring) | ||
| Battery | GEL, 9600Wh, DC 24V | LFP, 8038Wh, DC 24V | GEL, 12000Wh, DC 24V | LFP, 14336Wh, DC 24V |
|
Battery AC Charger
|
1.5kW, AC110V/230V
|
|||
| CCTV Box |
350° Rotatable, 6-sided, back-opened, included 8-Port POE Switch. CCTV mounting box for surveilance system
|
|||
| Optional Accessories | Cameras, 4G Router, NVR, Loud Speaker | |||
| Cables | Buit-in composite cable: Network Cable+Power Cable | |||
| Telescopic Mast | 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | ||
| Trailer Type | US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings | |||
| Outrigger | 4pcs Manual Outriggers, Foldable,Y Shape | |||
| Working Temperature | -20°C-55℃ | |||
| Solar Charging Time | 9 Hours (Theoretical) | 10 Hours (Theoretical) | ||
| Battery Backup Time | 72 Hours Under 90W Load | 72 Hours Under 133W Load | ||
|
Extended Dimensions
|
3522*3246*7232mm
|
4037*3246*9350mm
|
||
| Retracted Dimension |
3522*1630*2880mm
|
4037*1630*3100mm
|
||
| Gross Weight | 1000KG | 1100KG | ||
| Container Loading | 20GP:6 units, 40HQ: 14 Units | |||
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |||
Customer Cases
Company Profile
in Mobile Power Solutions
BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.
These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.
As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.
Certificate Of Honor
ISO
CE
DOT
CR
Certificate name
Customer Visit
FAQ
Can I customize the LOGO and colors on your solar trailer?
+
-
Yes, Color and LOGO can be customized.
Does the solar trailer include a CCTV system?
+
-
No, most clients prefer buying a bare trailer and installing cameras locally. our CCTV box is equipped with POE for easy connection, with DC 24V/48V & AC 220V/110V options, it ensures you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you need.
Do you provide shipping services?
+
-
Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.
What's the production lead time?
+
-
Standard sample is generally shipped within 2 weeks, batch orders are generally about 1 month. Please kindly consult our sales team for specifics.
How many cameras can the solar trailer hold?
+
-
Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.
Is there a lithium battery option?
+
-
Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.
What's the warranty period?
+
-
2-year standard warranty. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
