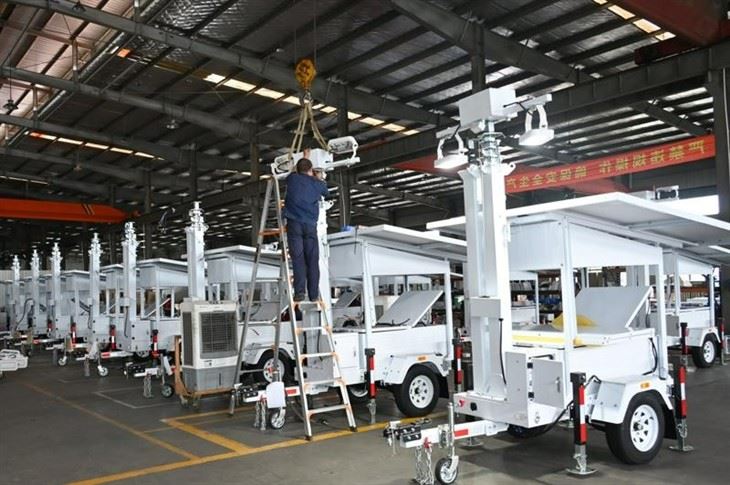

Mobile Solar Thermal and Optical Camera Tower can be widely used for many kinds of security and management. Because of Thermal and Optical Camera Bi-spectrum, you can see Optical Channel and thermal channel images. And eaiser for detecting security information.
4G router and NVR could be included.
Some datas of the Mobile Solar Thermal and Optical Camera Tower for your reference:
Solar Panel: 2 × 435W,Mono-Crystalline
GEL Battery: 4 × 150Ah,DC12V,7200W·h
Spring Cable：2*CAT6 + 1*awg13+1*awg16 cable
Spring Cable：2*CAT6 + 1*awg13+1*awg16 cable
Mast: Steel Q235,Square Telescopic type,6.5 m,5 Sections,
Manual Winch Lifting,70kg Load,117kph Windproof
Trailer: US Standard, Ball Hitch， Single Axle,Manual Outrigger
Charging Time: 8.8 hours
Running Time: 4 Days for 80W
System Voltage: DC24V
container loading plan: 16units for 40HQ, 8units for 20GP
cctv system:
+1* square CCTV mounting box
+ 1*PTZ Thermal cameras（Hikmicrotech,DS-2TD4228-10/W )
+1 NVR (HIKVISION,DS -7604NXI-K1) with 8TB Hard disk
+1 4G Router
+1 POE Switch
You can choose customized configurations and other camera system according to your needs.
As well, the led lights can be mounted together too.
There are different cameras, for example, DS-2TD4228-10/W is for the Mobile Solar Thermal and Optical Camera Tower
Thermal Module:
Image Sensor is Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD < 40 mK (@ 25°C,F# = 1.0)
Focal Length 6.9 mm
IFOV 1.74 mrad
Aperture F1.0
Field of View 24.9° × 18.7° (H × V)
Min. Focusing Distance 1 m (3.3 ft.)
Digital Zoom ×2, ×4
Optical Module:
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0089Lux @ (F1.6, AGC ON), 0 Lux with IR
Field of View 53.0° × 28.0° (H × V)
Focal Length 6.4 mm
Shutter Speed 1 s to 1/100,000 s
White Balance
MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light
Lamp/Natural Light
Day & Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Aperture F1.6
If you have your own camera system, we also can prepare the mounting box and spring cables ready for you to install your own system on the mobile solar trailer.
Some new energy industry news for you:
Mexico "Financier" recently reported that Mexico is the second largest energy market in Latin America, with abundant solar and wind energy resources, if you can more fully and effectively use clean energy, is expected to promote the country's economic output to increase dozens of times, and drive the region to accelerate the development of clean energy.
At present, Mexico's clean energy generation as a whole is rapidly increasing trend. According to the latest data released by Mexico's National Energy Control Center, between 2017 and 2022, Mexico's power generation will grow by 10.3%, mainly due to the development of clean energy. During this period, clean energy generation increased by 48.4%; fossil fuel generation increased by only 1.1%; traditional thermal power plants saw the largest drop in generation, down 52.2%; coal-fired generation fell by 50.5%; gasoline, diesel and other internal combustion energy generation fell by 20.9%.
In April, Mexican President Lopez reiterated at a meeting of leaders of the Major Economies Energy and Climate Forum that Mexico will fulfill its commitment to achieve 35% of its energy consumption from clean energy in 2024. According to the "Mexico Clean Energy Report" released by the U.S. Department of Energy, if Mexico achieves the goal of 35% of its energy from clean energy, it will reduce the cost of electricity production by $1.1 billion, attract $17 billion in investment and create more than 72,000 direct jobs.
The Mexican government is taking various measures to increase the promotion of clean energy development. Among the goals promulgated or measures implemented include: the renovation of hydroelectric power plant turbines; the development of lithium to achieve the goal of 50% of cars to achieve zero emissions by 2030; construction of photovoltaic power plants and wind parks; expansion of power transmission lines; modernization of oil refineries, including the conversion of fuel oil into low-sulfur emission gasoline; the establishment of a daily limit of 2 million barrels of crude oil extraction. The government is also pushing rail projects to make more use of clean electricity, aiming to achieve nearly half of the southeastern Maya train routes run powered by electricity. At the same time, the rehabilitation of the transoceanic railroad in the Isthmus of Tehuantepec will also significantly reduce the use of internal combustion locomotives in passenger and freight transport, helping the development of clean energy.
The Mexican government is also actively pursuing plans to acquire Spanish energy giant Evel de Lola Power's power plants in Mexico, involving 12 combined gas cycle power plants and one renewable energy plant with a total installed capacity of more than 8 million megawatts. The Mexican government said that the acquisition of the power plants will save 30% of the cost compared to building the plants from scratch. Upon completion of the acquisition, Mexico's Federal Electricity Commission will increase its share of the country's electricity market from 39 percent to 55.5 percent. "This will further strengthen Mexico's electricity production and help secure the population's energy supply and energy price stability. More private sector investment in Mexico's renewable energy development under the guidance of the state is welcome." Mexico's Ministry of Finance and Public Credit noted in a statement.
Biglux Mobile Solar Thermal and Optical Camera Tower is using new energy. If more details required welcome to contact Biglux.
