Product description:

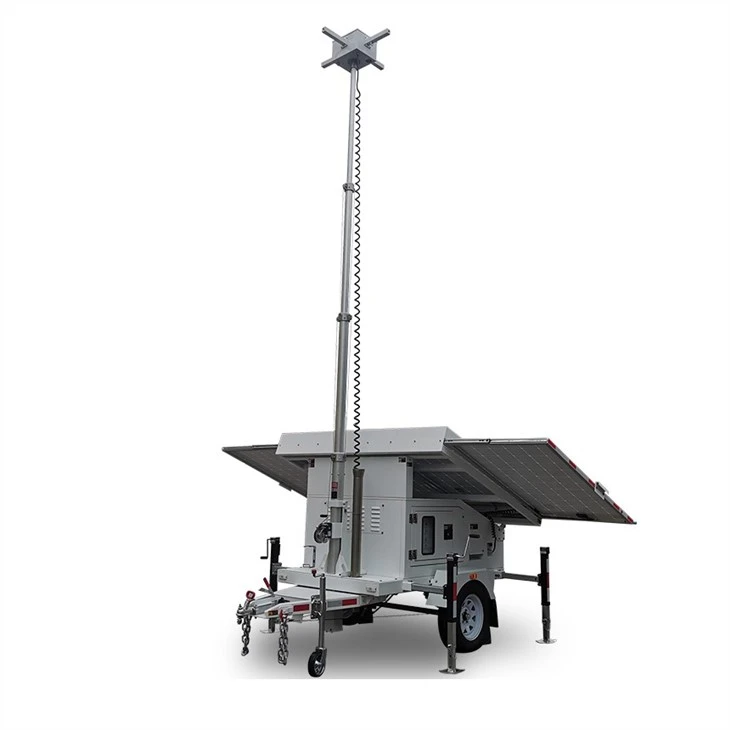

Biglux with over 10 year's experience on mobile solar cctv tower multiple solutions. Our 9m electric lifting winch hybrid mobile cctv tower with 5kw diesel genset is ideal for retail store parking.
Biglux mobile cctv trailer with automatic hybrid system controller,the MPPT add-on module senses that the battery voltage is below the set voltage, and then sends a signal to the unit controller, which automatically starts the generator, which charges the battery through the battery charger.Customer can operate the trailer very easily by using the hybrid system controller, it can save a lot of timing and labor.
Product specification:
Solar Panel: 4 × 460W,Mono
GEL Battery: 8 × 200Ah,DC12V,19200W·h
Diesel Genset: 5kW/5kVA,AC220V/110V,EPA
Battery Charger: 2 × 2.5kW/2.5kVA,AC220V/110V
with CCTV mounting box and PoE Switch
Spring Cable: 2 × Cat6e + 2 × Supply
Controller: 40A MPPT,95% Efficiency,Hybrid
Mast: Steel Q235,Square Telescopic type,9 m,5 Sections,
Electric Winch Lifting,100kg Load,117kph Windproof
Trailer: US Standard,Ball Hitch,Single Axle,Manual Outrigger
Charging Time: 8.8 hours by Solar,4 hours by Genset
Running Time: 15 Days for 160W
System Voltage: DC48V
FAQ:
Can we have spare battery? What's the cost for the replacement battery?
Biglux: We do not recommend to buy more spare, if customer do not use the battery for a long time,it will be broken.Gel batteries are very stable, it can be used for 3-4 years without broken. If customer wants to change it, they can buy the batteries locally. It's very easy.
Sealed lead-acid battery is placed for a long time on the power will be depleted, after all, there is a relative resistance in the current, the resistance will consume power. Therefore, it is not recommended to leave the sealed lead-acid battery for a long time, otherwise there will be no power when it is used at the back.
If want to know about our Biglux mobile cctv tower or battery information, please just send us an inquiry or call us, we will get back to you very soon.
