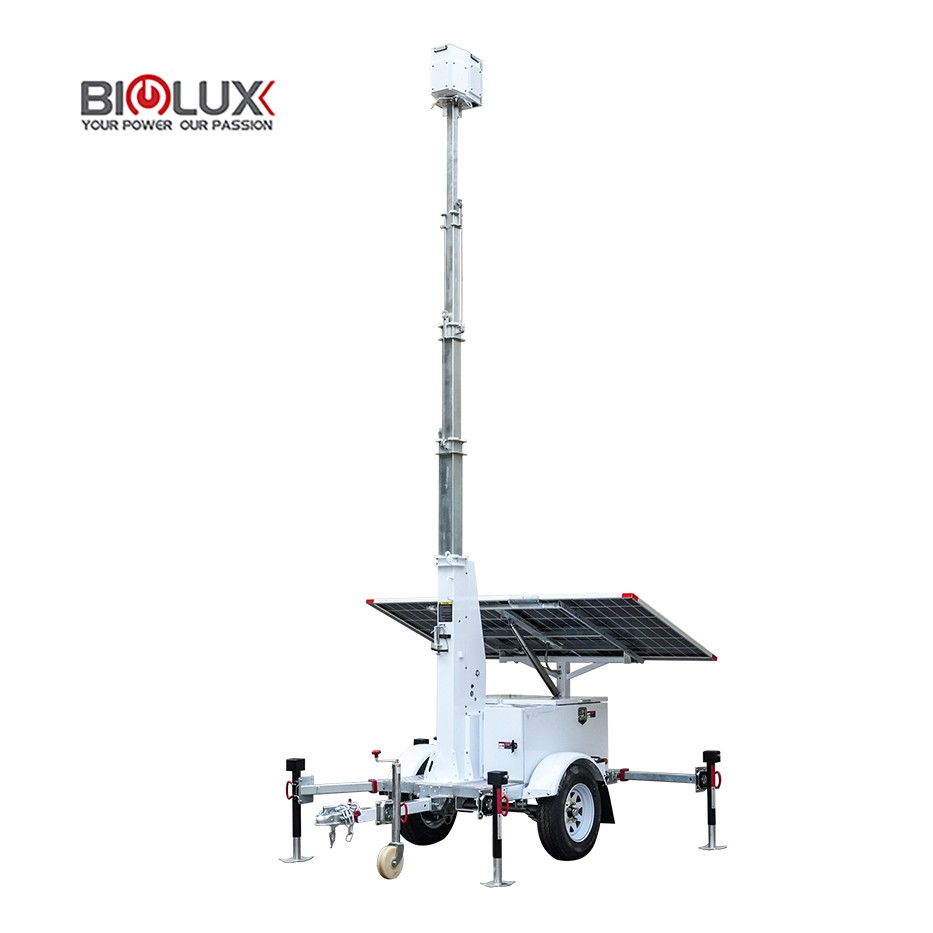

Mini Compact Solar Powered Surveillance Trailer 600W Solar Panel With Large Batteries
video
Mini Compact Solar Powered Surveillance Trailer 600W Solar Panel With Large Batteries

Mini Compact Solar Powered Surveillance Trailer 600W Solar Panel With Large Batteries

The HiSite video surveillance trailer delivers uninterrupted off-grid security for construction, highways, utilities, rail and remote sites. Designed to integrate seamlessly with CCTV systems, it combines solar power with battery storage, ensuring your site is always protected – day and night, whatever the weather. By choosing BIGLUX, you gain a low-carbon, low-cost alternative to diesel-powered towers, backed by smart remote monitoring, industry-leading reliability and aftercare you can trust.

HiSITE01



Products Ddtails

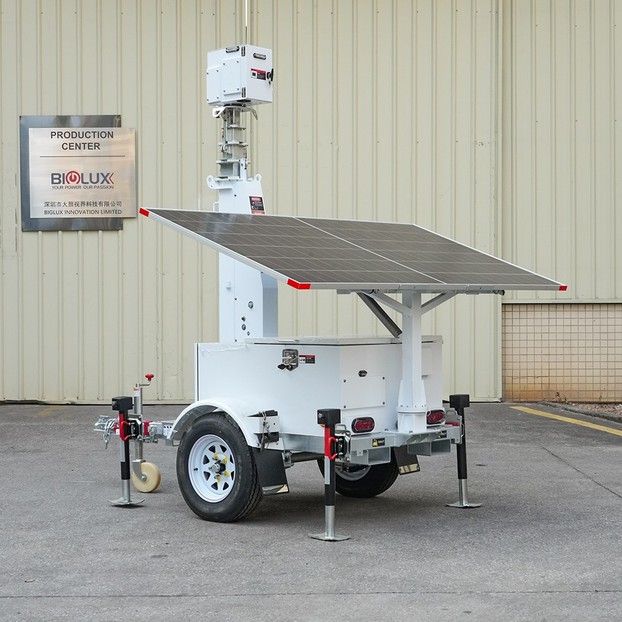

12

Solar Panels



Equipped with 600W high-performance bifacial solar panels. Compared with ordinary solar panels, the bifacial design boosts power generation efficiency by 30%, enabling fast battery charging.



This solar panel can rotate from 0 to 60 degrees and tilt from 30 to 60 degrees. It allows operators to easily place the device anywhere and maximize sunlight absorption.

CCTV Box



The CCTV Box has a six-sided structure, removable mounting plate, 360° rotatable design, rear-opened access, internal cooling fan, and 4 strobe lights. These designs optimize its adaptability and functionality for surveillance needs.



It offers two main benefits: faster on-site deployment (streamlining setup workflows) and easy installation & maintenance (simplifying camera mounting/upkeep via the removable plate and rear access).

cctv box
mast

Built - in Wires



The telescopic mast comes with built-in wires (internal wiring), supports up to 9 meters height, and has each section treated with hot-dip galvanization. These structural designs lay a solid foundation for its durability and functionality.



It delivers three critical benefits: ✔ weatherproof aging prevention, ✔ resistance against cutting or vandalism, and ✔ extended service life-all enabled by its galvanized sections and internal wiring protection.

Hot - Dip Galvanized



The solar surveillance tower's key parts use hot-dip galvanization, which is 3x thicker than electroplating. This design ensures high corrosion resistance against outdoor wear and rust.



It offers three key benefits: ✔ zero maintenance needed, ✔ extended service life, and ✔ all-weather performance-adapting to harsh conditions like humidity, salt spray, and extreme temperatures.

hot-dip galvanized



waterproof

Waterproof



The solar tower has waterproof performance (IP65 waterproof equivalent), along with enhanced joint sealing and blind hole fasteners-these designs reinforce its water-resistant structure for outdoor use.



It offers three core benefits: ✔ 100% moisture protection to block water intrusion, ✔ an all-weather sealed cabin for consistent internal dryness, and ✔ the ability to keep running in downpours, ensuring stable operation in wet conditions.

Compact Size



The biggest advantage of HiSite is its compact size. It measures just 2.38×1.8×3 meters when folded. This design allows for easy transportation and saves space during use.



Its small size also cuts down shipping expenses. Eight units can fit into a 20-ft container, and sixteen units fit into a 40-ft container. Choosing this product will greatly lower your shipping costs.

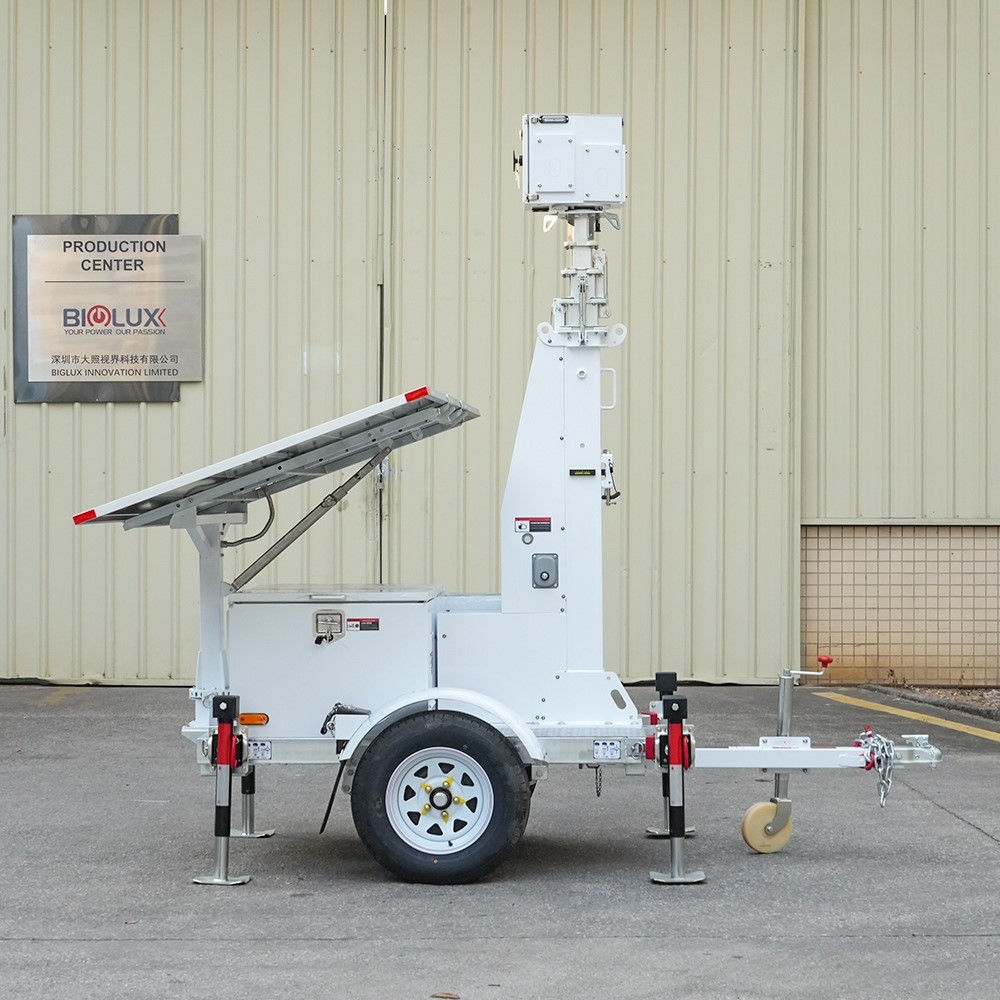

15



Products Specifications



Product Mobile Solar Surveillance Trailer Tower
Models BL1P-G7MHIS0B BL1P-L7MHIS0B
Solar Panel Type Bi-facial design solar panel
Solar Panel Wattage 1* 600W 1*600W
Controller Epever MPPT Victron MPPT
Battery 6000Wh, DC24V 7168Wh, DC24V
Devices CCTV Mounting Box For Surveilance System
Cables Buit-in composite cable: Network Cable+Power Cable
Telescopic Mast 7 Meters, Manual Liting System 7 Meters, Manual Liting System
AC Charger 1.5kW
Trailer Type US/EU/AU Standard, Signel Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings
Outrigger 4pcs Manual Outriggers, Foldable,Y Shape
Working Temperature -25°C-60℃
Charging Time 8.9 Hours (Theoretical) 8.5 Hours (Theoretical)
Running Time 72 Hours for 66W 72 Hours for 80W
Optional Devices Cameras,4G Router,NVR,Speaker, Remote Control, Antenna,Inverter, 360° Rotation, And 90°Tilt forlights,Dimmable Lights,Lithium Battery
Operate Dimensions

2384*1800*7000mm (Extended Dimensions)

2384*1800*3000mm(Retracted Dimensions)

Gross Weight 750KG 750KG
Container Loading 20GP:8 units, 40HQ: 16 Units
Application Scenarios Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.



Customer Cases

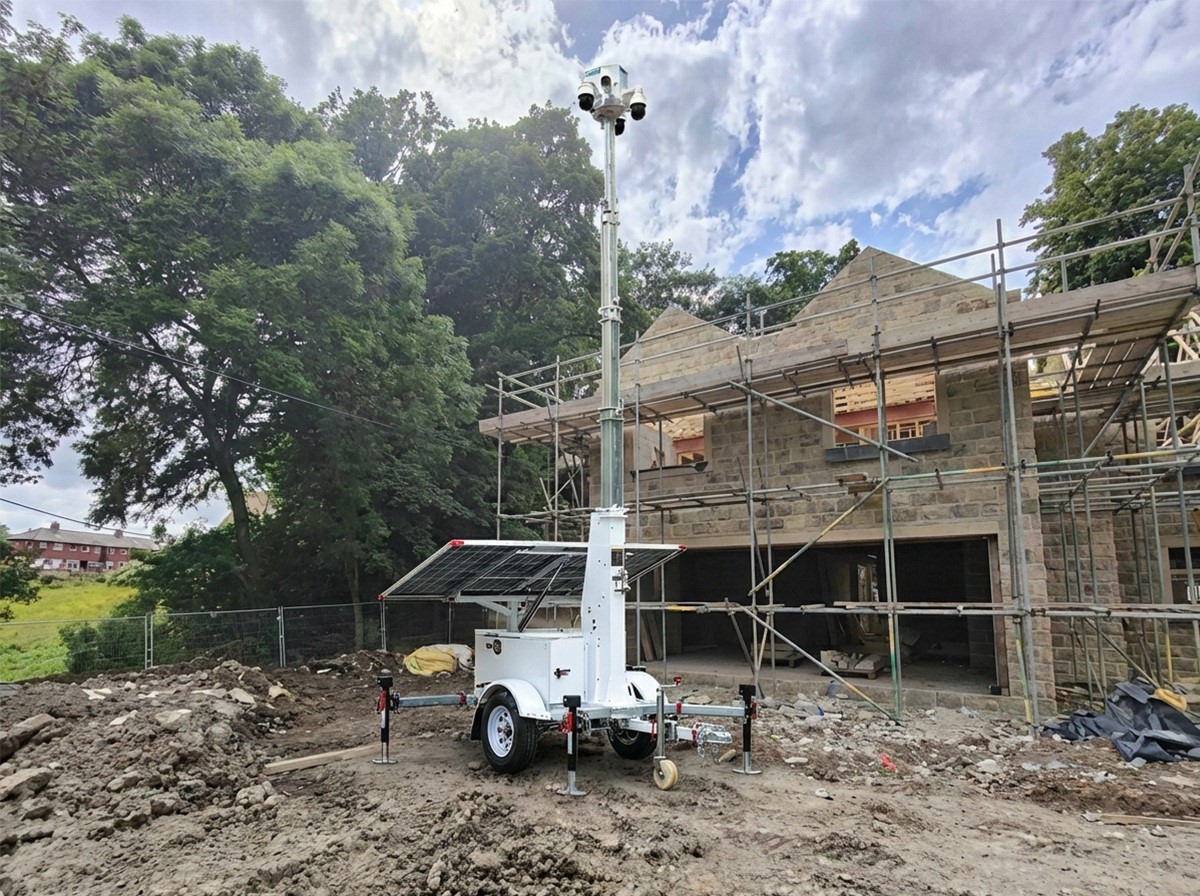

HiSite-1

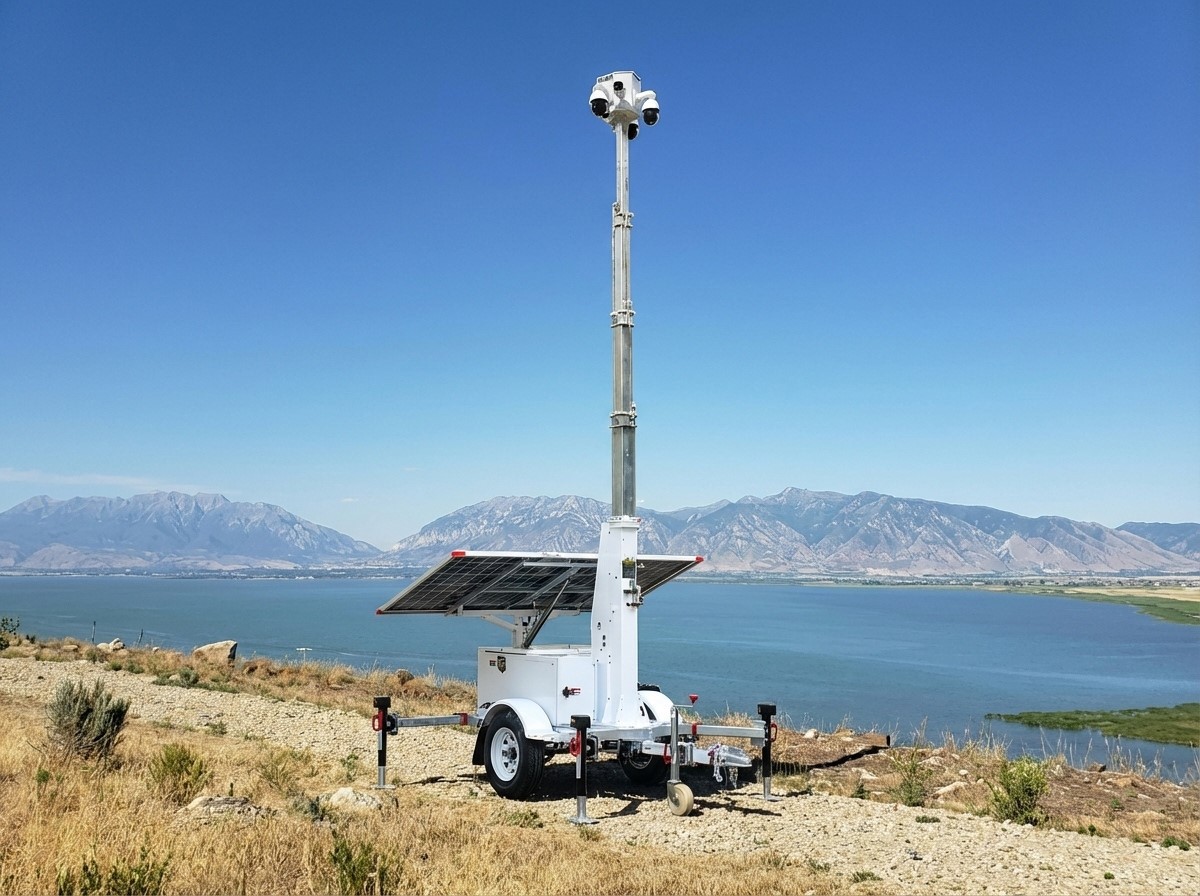

HiSite-2

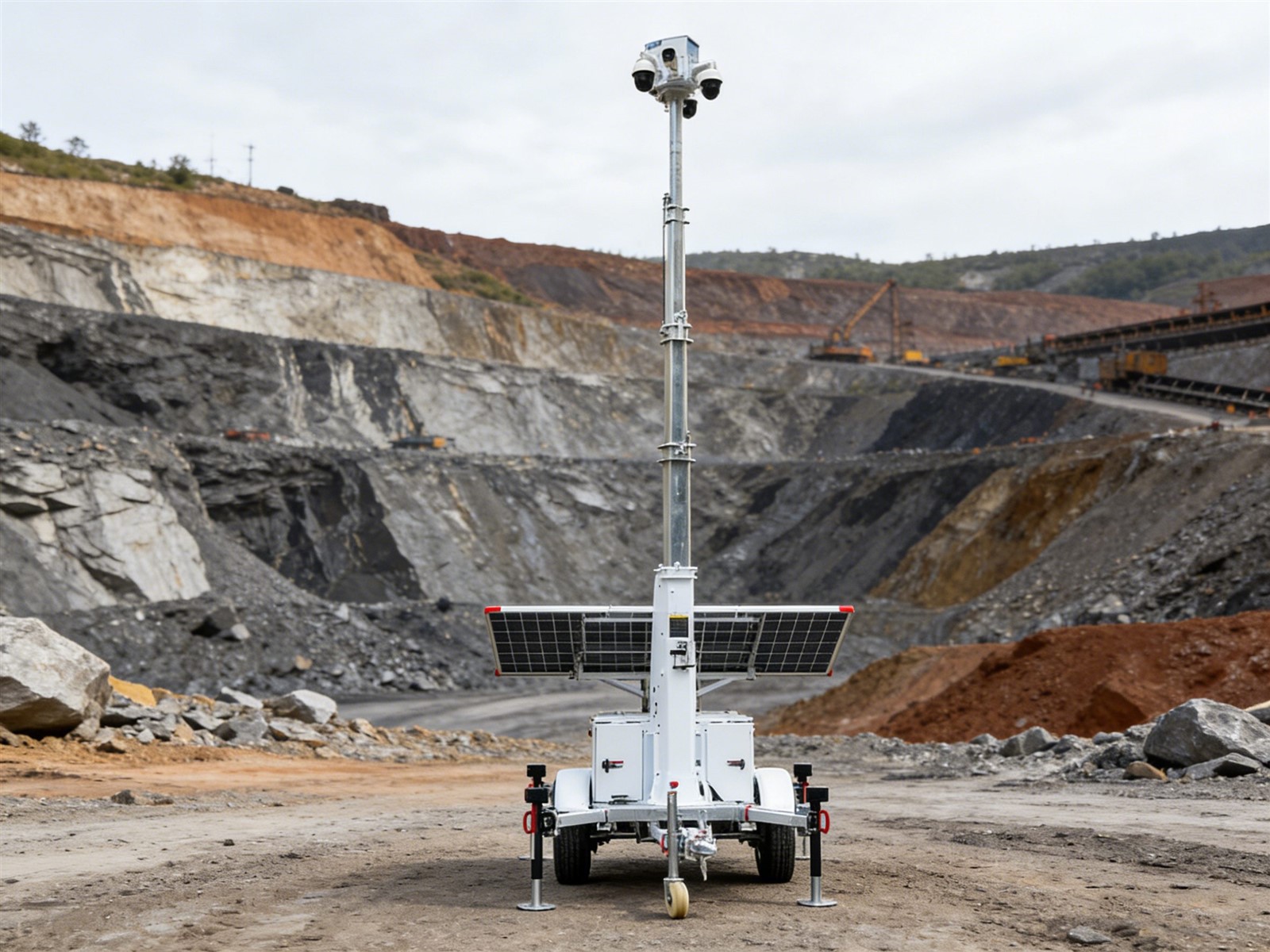

HiSite-3

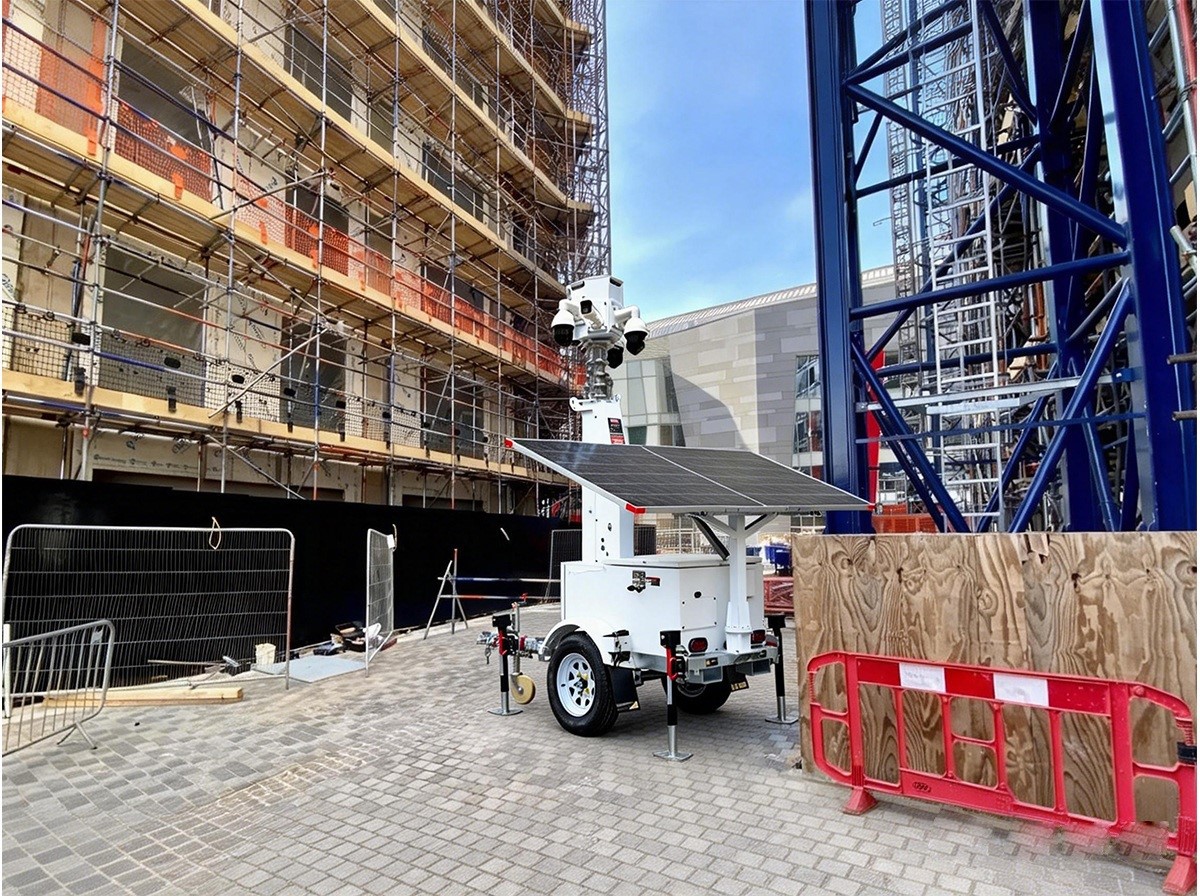

Hisite-4

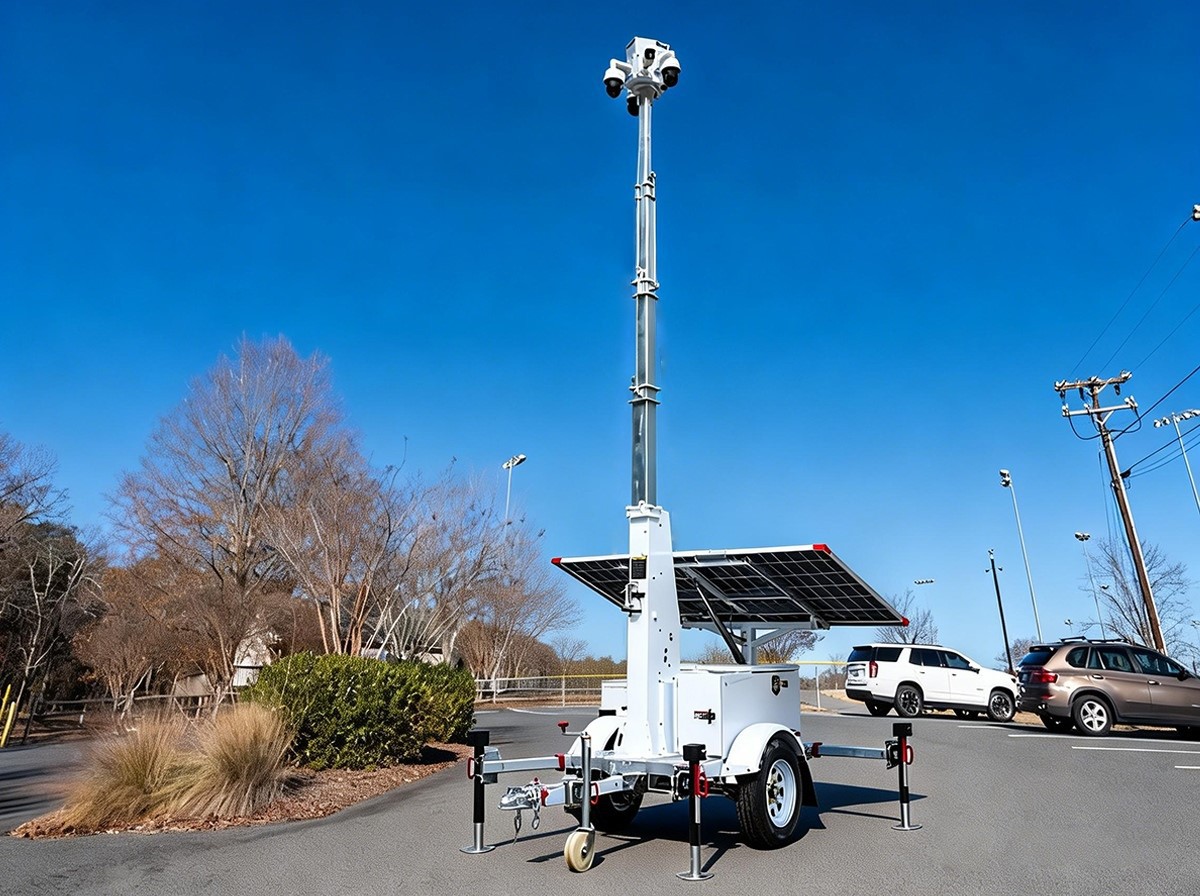

HiSite-5
case 2







Packaging & Logistics

packaging1
packaging2
packaging3
packaging4

Packaging Details

* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.

 * Bulk Shipping: 6 units can be loaded into a 20GP container. 14 units fit perfectly into a 40HQ container.



Logistics Highlights

We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.



Company Profile



10Years of experience
in Mobile Power Solutions

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.



These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.



As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

BIGLUX

10+
Industry Experience
10K+
Factory land occupation
500+
Global Projects
200+
Monthly Capacity
1
2
5
6


Certificate Of Honor




1ISO

ISO

CE-BIGLUX 1

CE

DOT

DOT

4CR

CR

5WARRANTY

Certificate name





Customer Visit




customer visit - 2

customer visit - 1

customer visit - 4



customer visit - 3

customer visit - 5



customer visit - 7



FAQ



Can I customize the LOGO and colors on your solar trailer?

+

-

Yes, Color and LOGO can be customized.

Does the solar trailer include a CCTV system?

+

-

No, most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box equip POE for easy connection, with DC 24V/48V & AC 220V/110V options, ensure you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you needed.

Do you provide shipping services?

+

-

Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.

What's the production lead time?

+

-

Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.

How many cameras can the solar trailer hold?

+

-

Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.

Is there a lithium battery option?

+

-

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

+

-

2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
