Products Description
Job Site Security Camera Trailer

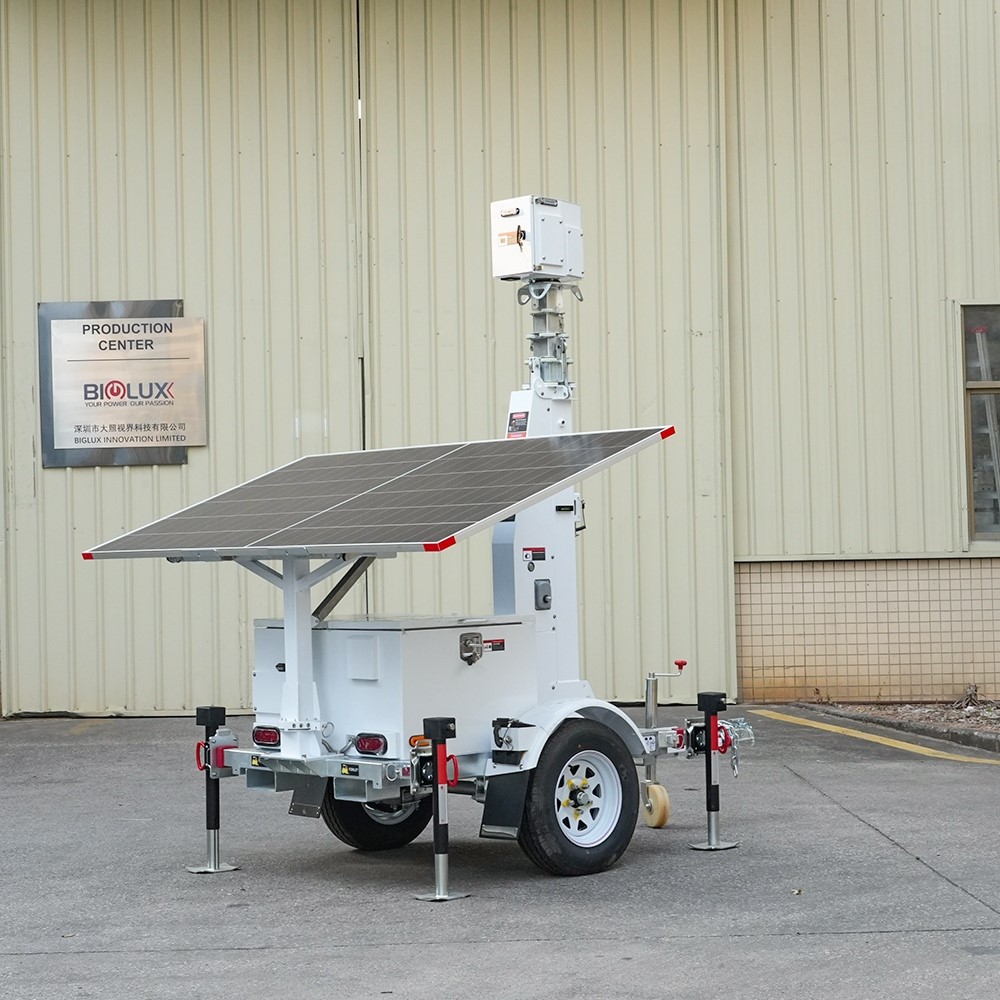

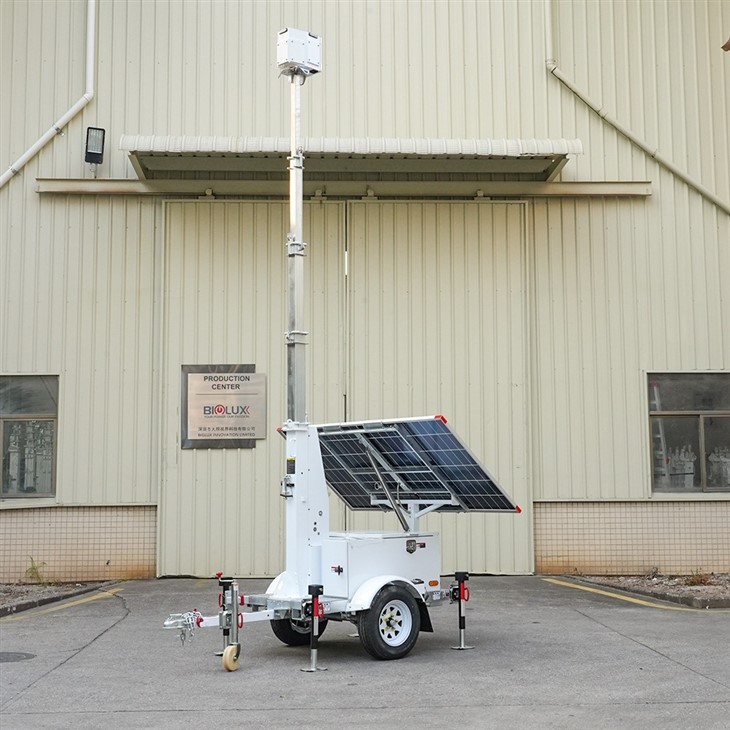

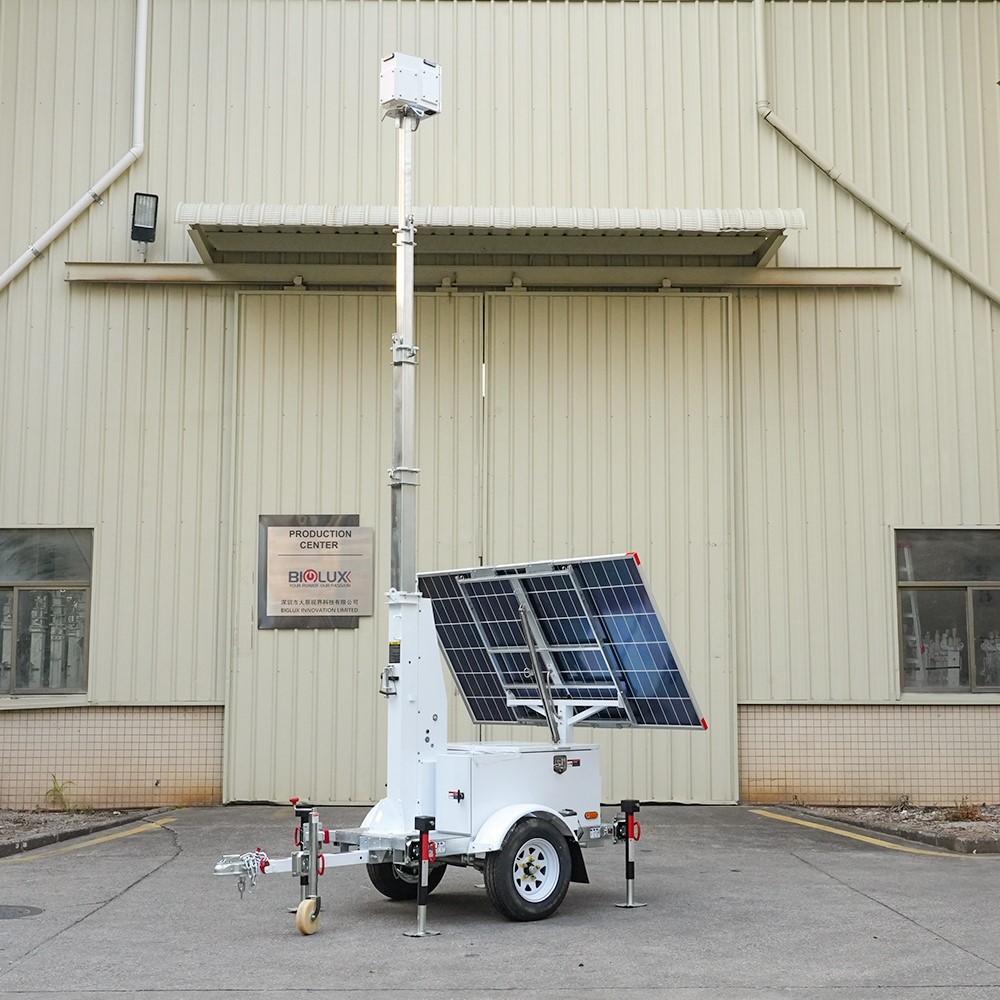

The Biglux job site security trailer is a compact, mobile solar‑powered CCTV tower designed to support AI cameras and smart monitoring devices in locations where rapid deployment and reliable off‑grid performance are essential.
Its modular solar system features a rotatable panel mounted at the rear of the trailer, allowing users to optimize sunlight exposure or remove the panel entirely during winter. With optional lithium or GEL batteries and a built‑in 1.5kW AC charger, the unit ensures stable year‑round power-whether operating on solar energy or charging directly from the grid.
Engineered for durability, the tower uses a hot‑dip galvanized telescopic mast and chassis, providing strong corrosion resistance for coastal regions, industrial zones, and harsh outdoor environments.
All cables are routed inside the mast to prevent damage and extend system lifespan.
The rotatable mounting box offers rear access for quick maintenance, while removable knock‑out plates make it easy to install PTZ cameras, fixed cameras, speakers, HiPOE injectors, and 4G/5G routers.
For field deployment, the trailer includes foldable stabilizers and a high‑quality nylon guide wheel, ensuring smooth positioning even on uneven ground. Inside the chassis, dedicated storage space accommodates an NVR, power modules, or essential tools, turning the unit into a fully self‑contained mobile surveillance platform.
With its flexible configuration and rugged design, the Biglux job site security trailer is ideal for construction sites, temporary parking lots, public events, utility maintenance, logistics yards, and remote monitoring points-anywhere fast, reliable, and intelligent security coverage is required.
Configurations of Job Site Security Camera Trailer for your reference.
| Brand Name | BIGLUX |
| Model Number | BL1P |
| Application | Different work sites |
| Solar Panel | 1pcs 600W dual facial solar panel |
| Battery | GEL battery (6000Wh) and Lithium batteries(7168wh) optional |
| Controller | Epever or Victron MPPT |
| Mounting Box | 6 sides waterproof CCTV mounting box for cameras, and rear maintenance |
| Cameras (Optional) | Optional (1-2 PTZ camera+ 1-2 fixed camera) |
| Mast | 7 meter manual lifting square telescopic mast, hot-dip galvanzied |
| Trailer | US/AU/EU standard, draw bar with ball hitch, adjustable height, Forklift holes, manual outriggers |
6 sides waterproof CCTV mounting box for cameras and speaker for your reference:
5 faces removeable installation plates with knock-out holes.
There are built-in cables from the bottom to the top, with network cables and power cables.
It's easier for you to install cameras locally.
Of course you can buy the cameras from us and we install and wire for you.
Here is some news about clean energy for your reference:
A multinational real estate group has announced plans to invest in and develop a large-scale integrated clean energy project in California, USA, including a solar park with a planned capacity of 700 megawatts (MW) and a supporting battery energy storage system. The project aims to fully utilize California's excellent solar resources, converting solar energy on a large scale through high-efficiency photovoltaic components, and combining it with energy storage technology to achieve smooth power output and flexible dispatch, significantly increasing the penetration rate and reliability of renewable energy in the regional power grid.
Upon completion, the project is expected to produce a large amount of clean electricity annually, meeting the electricity needs of hundreds of thousands of households and effectively supporting green energy consumption by local industries and businesses. The accompanying battery energy storage facility will store surplus photovoltaic power during the day and release it at night or during peak demand periods, thereby optimizing grid load and mitigating the challenges posed by intermittent renewable energy to system stability. This "photovoltaic + energy storage" model reflects the core path of the current energy system's transformation towards cleanliness, flexibility, and resilience.
The real estate group stated that this move is not only a response to global decarbonization trends and corporate social responsibility policies, but also an important part of its strategic layout in "green real estate" and "sustainable infrastructure." The project is expected to create a large number of jobs locally during the construction and operation phases and drive the development of related industrial chains. In the future, the group also plans to explore further integrating such renewable energy facilities with its commercial and residential properties to build a more complete low-carbon energy ecosystem, helping California achieve its clean energy and climate goals for 2030 and 2045.
Solar clean energy applications and demand are becoming increasingly widespread. Our mobile solar CCTV tower is one such application.
Please feel free to contact us if any questions.
