Product Overview
Core Advantages
✅ Hybrid Power System: Solar + Battery + Auto Diesel GeneratorSolar charging as priority; diesel generator starts automatically when battery is low, ensuring 24/7 nonstop power.
✅ 9m Electric Telescopic Mast5‑section Q235 steel mast, electric winch lifting, max height 9m, wide‑area monitoring coverage.
✅ Long‑Distance AutonomyUp to 4 days on solar+battery; 1 full tank supports 11 days of 160W load.
✅ Heavy‑Duty Trailer & Rapid DeploymentUS/EU/AU standard single‑axle trailer with manual outriggers; deploy on site in 10 minutes.
✅ Intelligent Remote Management4G/5G/WiFi, PTZ control, infrared night vision, GPS, remote APP & PC monitoring.
✅ IP67 Waterproof & Extreme Environment AdaptableStable from ‑30℃ to 60℃, anti‑corrosion, dustproof, wind‑resistant.
Detailed Product Description

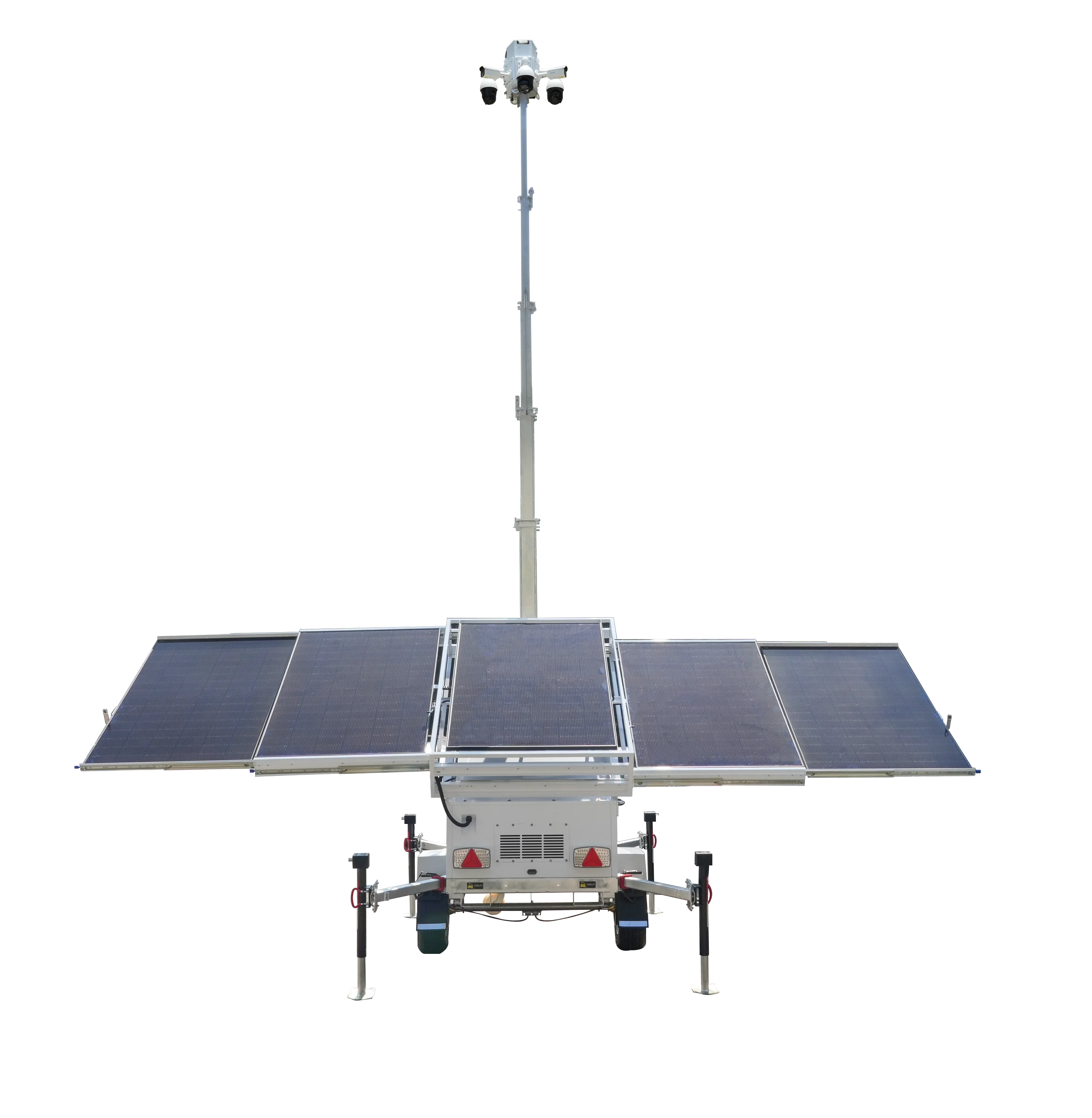

HiSTAR‑V Hybrid Solar Mobile CCTV Tower is engineered by BIGLUX (https://www.bigluxled.com/) to solve power failures in off‑grid areas. Unlike basic solar models, it uses a triple hybrid system to guarantee surveillance never stops.
The trailer uses a heavy‑duty single‑axle chassis with manual support legs for stability on uneven ground. Foldable solar panels protect during transport and improve efficiency. The 9m electric telescopic mast supports PTZ/bullet cameras, LED lights, and IoT devices.
The hybrid power system includes high‑efficiency monocrystalline solar panels, large‑capacity battery bank, and EPA‑compliant diesel generator. The intelligent control box manages solar charging first; the generator auto‑starts when needed. A separate ventilated generator compartment with shutters and fans ensures safe, quiet operation.
Equipped with PoE switch, battery converter, and spring cables, the tower supports plug‑and‑play installation. It is widely used as mobile surveillance trailer, solar cctv tower, and mobile cctv tower for construction, mining, border, events, and emergency projects.
Technical Specifications
Basic Configuration
| Product | HiSTAR-V Mobile Solar Surveillance Trailer Tower | |||
| Models | BL5P-G7MHRS1B | BL5P-L7MHRS1B | BL5P-G9EHRS1P | BL5P-L9EHRS1P |
| Solar Panel Type |
25°-53° Electrical |
|||
| Solar Panel Wattage | 5×450W, Bifacial | |||
| Controller | 80A MPPT with remote battery monitoring | 90A MPPT with remote battery monitoring | ||
| Battery | GEL, 19200WH | LFP, 20480WH | GEL, 19200WH | LFP, 20480WH |
|
System Voltage |
DC 48V |
|||
| Battery AC Charger | 2.5kW AC 110V/230V | |||
|
CCTV BOX |
350° Rotatable, 6-sided, back-opened, included 8-Port POE switch, and blue&white strobe light, for surveilance system | |||
| Cables | Buit-in composite cable: Network Cable+Power Cable | |||
| Telescopic Mast | 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | ||
| Trailer Type | US/EU/AU Standard, Signel Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings | |||
| Included Accessories | 8-Port POE Switch | |||
|
Back-up Generator |
3KW Power Rating, 50L Fuel Tank, with Auto-Start System |
|||
| Working Temperature | -20°C-55℃ | |||
| Solar Charging Time | 7.7 Hours (Estimated) | |||
| Battery Backup Time | 72 Hours Under 213W Load | |||
| Optional Devices | Cameras, NVR, 4G Router,Loud Speaker | |||
| Extended Dimensions | 6100*3990*7700mm | 6100*3990*9600mm | ||
| Retracted Dimensions | 1650*2200*3080mm | 1650*2200*3400mm | ||
| Container Loading | 20GP: 3 units, 40HQ: 7 Units | |||
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |||
Application Scenarios
1. Construction Site Security
Real‑time monitoring for materials, machinery, and workers; ideal for off‑grid long‑term projects.
2. Mining & Oil Fields
24/7 surveillance in remote high‑risk areas; explosion‑proof & dust‑proof environment.
3. Border & Perimeter Security
Long‑distance intrusion detection, early warning, real‑time transmission.
4. Emergency & Disaster Rescue
Rapid deployment for natural disasters, accidents, temporary command.
5. Large Events & Public Security
Crowd management, traffic monitoring, event security.
6. Remote Infrastructure & Logistics
Yard, warehouse, parking lot, and unmanned area monitoring.
Why Choose BIGLUX HiSTAR‑V?
1. 10+ Years Professional Manufacturer
BIGLUX (https://www.bigluxled.com/) is a leading provider of mobile solar cctv tower with 500+ global projects.
2. True Hybrid 24/7 Power
Only a few models support solar + battery + auto diesel for nonstop off‑grid operation.
3. Global Certified & Easy Customs Clearance
CE, ISO9001, ECM, DOT compliant for EU, US, AU, Middle East, Africa.
4. Flexible Rental & Sales
Ideal for buyers searching mobile surveillance trailer rental cost and mobile surveillance tower cost.
5. Full After‑Sales Support
24h technical support, remote guidance, warranty service.
Rental & Sales Service
BIGLUX (https://www.bigluxled.com/) provides full solutions for mobile surveillance trailer rental cost, mobile surveillance tower cost, sales, and OEM:
Short‑term rental for events & emergency
Long‑term purchase for construction & mining
Global distribution & agent support
Customizable mast, cameras, power, logo
Limited Offer: Bulk orders get fast delivery + preferential price!
Contact Us
BIGLUX Innovation Ltd (https://www.bigluxled.com/)
Email: info@bigluxled.com
Phone: +86 18818785601
Website: https://www.bigluxled.com/
Professional mobile cctv tower, solar security trailer, solar cctv tower provider.
