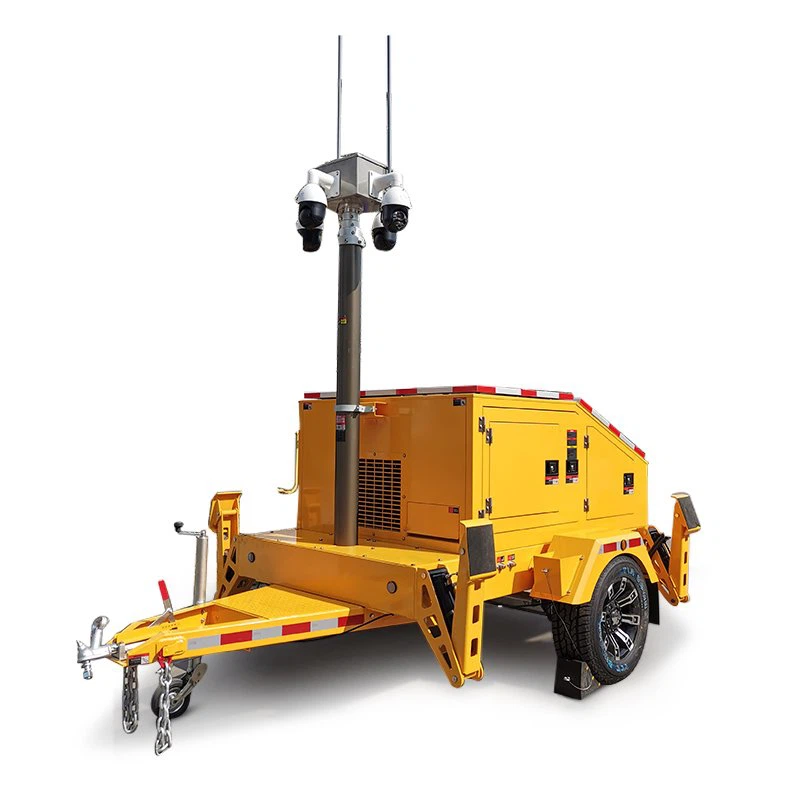

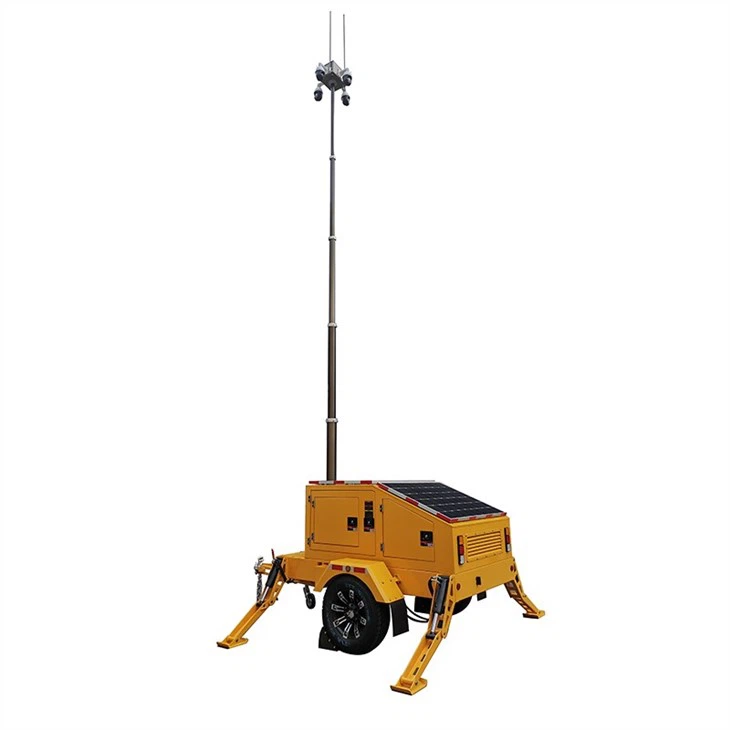

4KW Inverter Mobile Solar Diesel Hybrid CCTV System Surveillance Tower Trailer
Some details of 4KW Inverter Mobile Solar Diesel Hybrid CCTV System Surveillance Tower Trailer as follows
Hybrid CCTV tower with solar generator specification：
Base System
Name:Hybrid CCTV Tower
Model:HS2702G-CG
Dimension:Length×Width×Height
2300×2000×2200 (mm) Transport
3200×4200×8250 (mm) Operate
Weight:2000kg / 4410lb
System Voltage:DC24V
Work Temperature:-35℃~50℃ / -31℉~122℉
Solar System
Solar Panel:2 × 270W Monocrystalline Silicon
Battery System
Battery GEL:8 × 150Ah Deep-cycle
Voltage:DC12V
Series & Parallel:2 in series, then parallel
Power Capacity:14400W·h
Genset System
Rated Power:4kW/4kVA
Engine:Kubota Z482 Water-cooled
Displacement:0.479L
Frequency:60Hz
Consumption:1.3L/h / 0.35gal/h
Control System
Solar Controller: EPEVER
Model:Tracer6210AN MPPT,Hybrid
Inverter System
Rated Power:4kW/4kVA Pure Sine Wave LED + LCD Display
Frequency:50Hz / 60Hz
Terminal: 1 × DC12V + 1 × DC24V
Socket:1 × AC110V
CCTV System
CCTV:HIKVISION
NVR: 3TB
Monitor:22''
Router:4G & Wi-Fi
Alarm:Warning Light
Power Consumption:140W
Mast System
Body:Aluminum Alloy 6063
Type:Round Telescopic
Height：8m / 27ft
Section:5
Max Loading:50kg / 110lb
Windproof:130km/h / 91mph
Trailer System
Standard:US / AU / EU
Axle:AL-KO Single
Wheel Chock:2
Outrigger:4 × Hydraulic Hot Galvanized
BIGLUX's Cutting-Edge Solutions:
BIGLUX's remote video monitoring, bolstered by state-of-the-art AI-driven analytics, stands as a frontline defense. With our technology, we can observe and evaluate schools and community spaces without the need for or limited physical presence. The power of AI helps us swiftly flag suspicious activities and facilitates quick, efficient responses, all while conserving valuable manpower.
Uninterrupted Vigilance with Solar Power:
Integration of solar power into our systems, ensures continuous operation even during power outages. This means uninterrupted vigilance, even in challenging situations.
Force Multipliers for Security Personnel:
Collaboration between AI-enhanced remote video monitoring systems and dedicated security personnel is now more critical than ever. Our systems act as force multipliers, enhancing response efficiency and enabling real-time data sharing.
Security personnel can swiftly assess situations and allocate resources where needed, ensuring the safety and protection of communities during times of tension and conflict. such as now.
If you have any interested in this Hybrid CCTV tower with solar generator，please welcome to contact us. or visit our website directly https://www.bigluxled.com.
BIGLUX and Salam Petroleum Service(SPS) have completed a great project solar light tower（616 units） for the World Cup Qatar 2022 Stadium Parking Lot.
We also have so many successful projects to share with you.
Looking forward to hearing from you.
