Products Ddtails

Solar Panels
The solar panel can be easily raised from 30° to 60° using electric lifting.The unit is equipped with three 450W bifacial solar panels, which deliver high performance to the internal battery.

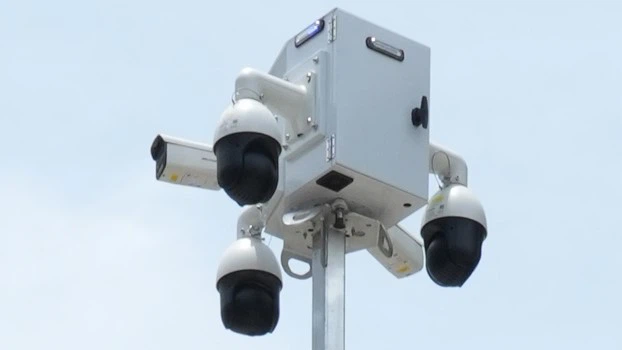

CCTV Box
This CCTV box can rotate 360°. It is easy for a single operator to install cameras. The box also has 5 mounting positions on its sides for installing cameras, speakers, or even Starlink. It offers high levels of water and dust resistance.
The box features easily removable panels, so you do not need to drill excessively or compromise its waterproof performance when installing cameras.

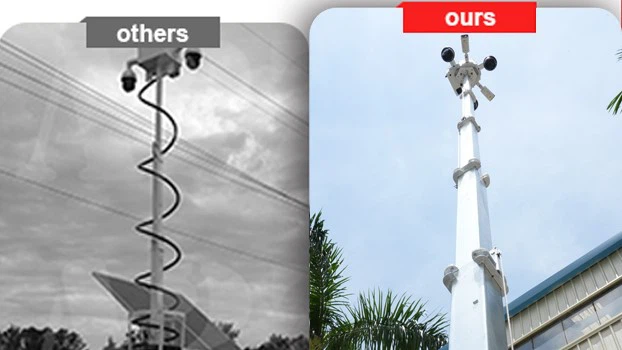

Built - in Wires
Our product follows a basic design principle: no exposed cables. All cables are stored inside the mast or truck, so they won't be damaged by bad weather and cannot be cut by intruders.
Hot - Dip Galvanized
All finished steel is hot-dip galvanized. This process coats the steel three times thicker than standard electroplating, providing excellent corrosion and rust resistance-even in humid coastal areas.

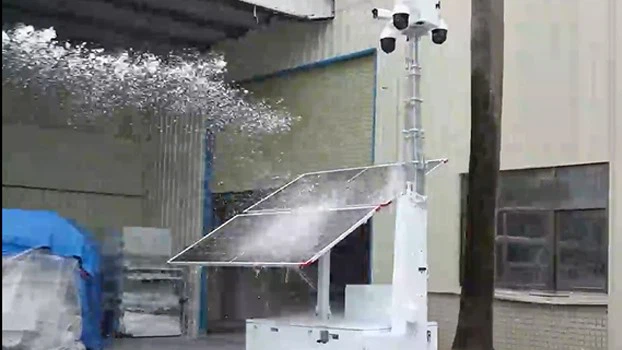

Waterproof
This unit offers waterproof performance equivalent to IP65. Its water-resistant structure is strengthened for outdoor use through improved joint sealing and blind-hole fasteners.
These designs provide multiple advantages: full moisture protection to prevent water ingress, and an all-weather sealed enclosure to maintain consistent dryness inside.
This ensures stable operation in wet conditions.
Oversized Trunk
The tower provides a large compartment for storing tools and essential on-site items. The compartment has a capacity of around 8 square feet, and most importantly, this space can hold an extra battery.
So it serves as a sealed storage area for your tools and also acts as a backup power station.

Products Specifications
| Product | Mobile Solar Surveillance Trailer Tower | |
| Models | BL3P-G7MHDS1B | BL3P-L7MHDS1B |
| Solar Panel Type | Bifacial Solar Panels, can be electrial tilting 25°~53° | |
| Solar Panel Wattage | 3*450W | 3*450W |
| Controller | Epever MPPT | Epever MPPT |
| Battery | GEL type, 14400WH, DC24V | LFP type, 14336WH, DC24V |
| Devices | CCTV Mounting Box For Surveilance System | |
| Cables | Buit-in composite cable: Network Cable+Power Cable | |
| Telescopic Mast | 7 Meters, Manual Liting System | 6.5 Meters, Manual Liting System |
| AC Charger | 1.5kW | |
| Trailer Type | US/EU/AU Standard, Signel Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings | |
| Outrigger | 4pcs Manual Outriggers, Foldable,Y Shape | |
| Working Temperature | -25°C-60℃ | |
| Charging Time | 9 Hours (Theoretical) | 9 Hours (Theoretical) |
| Running Time | 72 Hours for 160W | 72 Hours for 160W |
| Optional Devices | Cameras,4G Router,NVR,Speaker, Remote Control, Antenna,Inverter, 360° Rotation, And 90°Tilt forlights,Dimmable Lights,Lithium Battery | |
| Operate Dimensions | 3290*3245*7400mm | 3270*1675*2975mm |
| Gross Weight | 1150KG | 1150KG |
| Container Loading | 20GP:6 units, 40HQ: 14 Units | |
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |
Customer Cases



Packaging & Logistics




Packaging Details
* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.
* Bulk Shipping: 6 units can be loaded into a 20GP container. 14 units fit perfectly into a 40HQ container.
Logistics Highlights
We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.
Company Profile
in Mobile Power Solutions
BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.
These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.
As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.





Certificate Of Honor

ISO

CE

DOT

CR

Certificate name
Customer Visit






FAQ
Can I customize the LOGO and colors on your solar trailer?
+
-
Yes, Color and LOGO can be customized.
Does the solar trailer include a CCTV system?
+
-
No, most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box equip POE for easy connection, with DC 24V/48V & AC 220V/110V options, ensure you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you needed.
Do you provide shipping services?
+
-
Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.
What's the production lead time?
+
-
Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.
How many cameras can the solar trailer hold?
+
-
Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.
Is there a lithium battery option?
+
-
Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.
What's the warranty period?
+
-
2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
