HiSKID-III Solar CCTV Security Tower With 3 Solar Panels
video
HiSKID-III Solar CCTV Security Tower With 3 Solar Panels

HiSKID-III Solar CCTV Security Tower With 3 Solar Panels

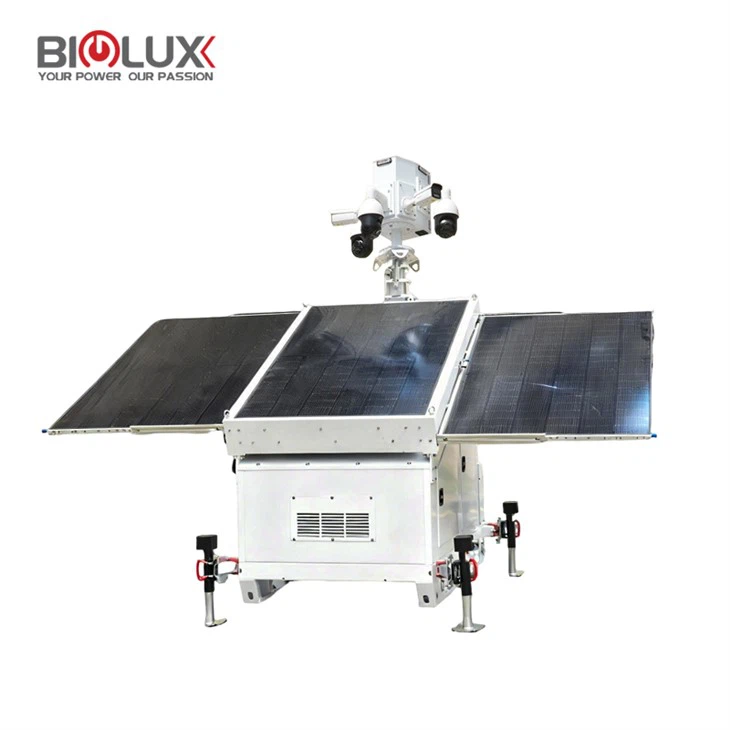

HiSKID-III Solar-Powered Surveillance Tower (Skid-Mounted)

Integrates skid base, solar system, telescopic mast & CCTV for off-grid surveillance. The skid-mounted configuration enables hassle-free repositioning, perfect for isolated areas without electrical infrastructure.

Key Features
24/7 off-grid performance powered by solar energy
Skid base supports rapid deployment & easy relocation
Seamlessly incorporates CCTV monitoring functionality

HiSKID-III cctv banner







Products Details



solar panels

Solar Panels



The 3-panel bifacial solar panels boast three core capabilities: 3×450W power specification (for amplified energy output), bifacial panel design (for dual-side light absorption), and 25°-53° manual tilting (for precise angle adjustment).



It delivers three key advantages: ✔ Dual-Side Energy Harvest (captures light from both sides to boost daily energy capture), ✔ Flexible Angle Tuning (enables easy alignment with shifting sun paths via manual adjustment), and ✔ Extended Runtime Support (higher total power ensures longer continuous operation for connected devices)

CCTV Box



The CCTV Box features a hexagonal structure, detachable mounting plate, 360° swivel capability, rear access door, built-in cooling fan, and 4 strobe lights. These designs enhance its adaptability and performance for surveillance requirements.



It offers two main benefits: accelerated on-site deployment (optimizing setup processes) and hassle-free installation & maintenance (easing camera mounting and upkeep via the detachable plate and rear access).

cctv
mast

Built - in Wires



The telescopic mast features integrated wiring (internal cabling), extends up to 9 meters in height, and each section undergoes hot-dip galvanization. These structural designs ensure reliable durability and performance.



It delivers three critical benefits: ✔ Weather-resistant anti-aging protection, ✔ Cut-proof and anti-vandalism resistance, and ✔ Extended service life-all supported by its galvanized sections and internal wiring protection.

Hot - Dip Galvanized



The solar surveillance tower's core components feature hot-dip galvanization, 3x thicker than electroplating. This design delivers strong corrosion resistance against outdoor abrasion and rust.



It offers three key benefits: ✔ No maintenance required, ✔ Extended service life, and ✔ Weatherproof performance-withstanding harsh conditions like humidity, salt spray, and extreme temperatures.

hot-dip galvanized



waterproof

Waterproof



The solar tower has an IP65 waterproof rating, plus reinforced joint seals and blind hole fasteners-these designs strengthen its watertight outdoor structure.



It offers three core benefits: ✔ 100% moisture protection to prevent water ingress, ✔ a weathertight sealed compartment for consistent dryness, and ✔ operation through heavy rain for stable wet-condition performance.

Oversized Trunk



The mobile solar tower features an extra-large storage compartment with 8 sq ft of storage capacity, providing ample space for on-site essentials.



It delivers two practical benefits: ✔ Stores tools and cameras to support daily operational requirements, and ✔ Includes built-in expansion space to meet future storage needs.

trunk
Forklift Base

Forklift Base



The forklift base features large fork pockets, 4 adjustable jacks, and 4 reinforced lifting rings-these structural designs ensure easy handling and terrain adaptability.



It delivers two practical benefits: ✔ Forklift/lifting for easy mobility (supported by large fork pockets and reinforced lifting rings) and ✔ Flexible adjustment for diverse terrains (supported by the 4 adjustable jacks).





Products Specifications



Product HiSKID-III Solar Surveillance Tower
Models BL3P-G7MHDS1B BL3P-L7MHDS1B BL3P-G9EHDS1P BL3P-L9EHDS1P
Solar Panel 3*450W, Monocrystaline Slicon Type, Dual Facial, 25°-53° Manual Tilting
Controller 60A MPPT (With Remote Battery Monitoring) 45A MPPT (With Remote Battery Monitoring)
Battery GEL, 14400Wh, DC 24V LFP, 14336Wh, DC 24V GEL, 14400Wh, DC 24V LFP, 14336Wh, DC 24V
Battery AC Charger
2.5kW, AC110V/230V
Back-up Generator 3KW Power Rating, 50L Fuel Tank, With Auto-Start System
CCTV BOX
350° Rotatable, 6-sided, back-opened, included 8-Port POE switch, and blue&white strobe light, for surveilance system
Optional Accessories
Cameras, NVR, 4G Router, Loud Speaker
Cables Buit-in composite cable: Network Cable+Power Cable
Telescopic Mast 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring
Trailer Type US/EU/AU Standard, Singel Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings
Outrigger 4pcs Manual Outriggers, Foldable,Y Shape
Working Temperature -20°C-55℃
Solar Charging Time
9 Hours (Estimated) 10 Hours (Estimated)
Battery Backup Time
72 Hours for 90W 72 Hours for 133W
Extended Dimensions
3600*3650*7150mm 3600*3650*9150mm
Retracted Dimensions
2150*1650*2320mm 2150*1650*2320mm
Container Loading 20GP: 3 units, 40HQ: 7 Units
Application Scenarios Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.



Application Scenarios

Construction Site



Mining Site



Oil Field



Parking Lot
Road Construction
Outdoor Activities







Packaging & Logistics

packaging-1
packaging-2
packaging-3
packaging-4

Packaging Details

* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product remains undamaged during shipping, protecting components like solar panels and surveillance equipment.

 * Bulk Shipping: 3 units can be loaded into a 20GP container. 7 units fit perfectly into a 40HQ container.



Logistics Highlights

We manage every step meticulously-from utilizing forklifts for loading well-packaged solar surveillance towers onto trucks, to ensuring they're securely positioned in containers for international shipping. Whether you need a single unit for trial or bulk orders for large-scale projects, our packaging and logistics guarantee safe, on-time delivery.



Company Profile



10Years of experience
in Mobile Power Solutions

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.



These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.



As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

BIGLUX

10+
Industry Experience
10K+
Factory land occupation
500+
Global Projects
200+
Monthly Capacity
1
2
5
6


Certificate Of Honor




1ISO

ISO

CE-BIGLUX 1

CE

DOT

DOT

4CR

CR

5WARRANTY

Certificate name





Customer Visit




customer visit - 2

customer visit - 1

customer visit-3



customer visit-2

customer visit-8



customer visit - 7



FAQ



Can I customize the LOGO and colors on your HiSKID solar trailer?

+

-

Yes, Color and LOGO can be customized.

Does the solar trailer include a CCTV system?

+

-

No, most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box equip POE for easy connection, with DC 24V/48V & AC 220V/110V options, ensure you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you needed.

Do you provide shipping services?

+

-

Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.

What's the production lead time?

+

-

Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.

How many cameras can the HiSKID trailer hold?

+

-

Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.

Is there a lithium battery option?

+

-

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

+

-

2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
