Mobile solar cctv tower with two 460w solar panels and 9600wh gel battery for security events
Hikvision camera with mobile solar trailer specification：
Base System
Brand:BIGLUX
Name:Solar Trailer Tower
Model: HS4602G-6M
Material:Steel Q235
Powder:Outdoor Type
Dimension:Length×Width×Height
1900×1500×1100 (mm)Transport
2900×2500×6200 (mm)Operate
Weight:800kg / 1764lb
System Voltage:DC24V
Work Temperature:-35℃~50℃ / -31℉~122℉
Solar System
Solar Panel:2 × 460W Monocrystalline Silicon
Battery System
GEL:4 × 200Ah
Free-main
Deep-cycle
Voltage:DC12V
Series & Parallel:2 in series, then parallel
Power Capacity:9600W·h
CCTV System
Box:Square type
Device:Switch Transformer 24V-12V
Control System
Solar Controller: MPPT,Hybrid 30A
Efficiency:95%+
Detection & Protection:
Short-Circuit
Overload
High Voltage
High Temperature
Timer:Dusk & Dawn
Whole Machine:Battery Isolator, Device on-off
Mast System
Body:Aluminum Alloy 6063 Hard Anodized
Type:Round Telescopic
Height：6m / 20ft
Section:4
Spring Cable:2 × Cat6e + 2 × Power Supply
Lifting Method: Manual Winch
Recommended Loading:5kg ~ 50kg / 11lb ~ 110lb
Windproof:117km/h / 73mph
Trailer System
Standard:US / AU / EU
Tow Hitch:50mm / 2'' Ball Type
Trailer Light:7 Pin
Axle:Single Suspension
Forklift Hole:2
Outrigger:4 × Manual Galvanized
Warranty:2 years
Accessories
Operation Manual
Parts Manual
Controller Manual
Allen Wrench
Hex Wrench

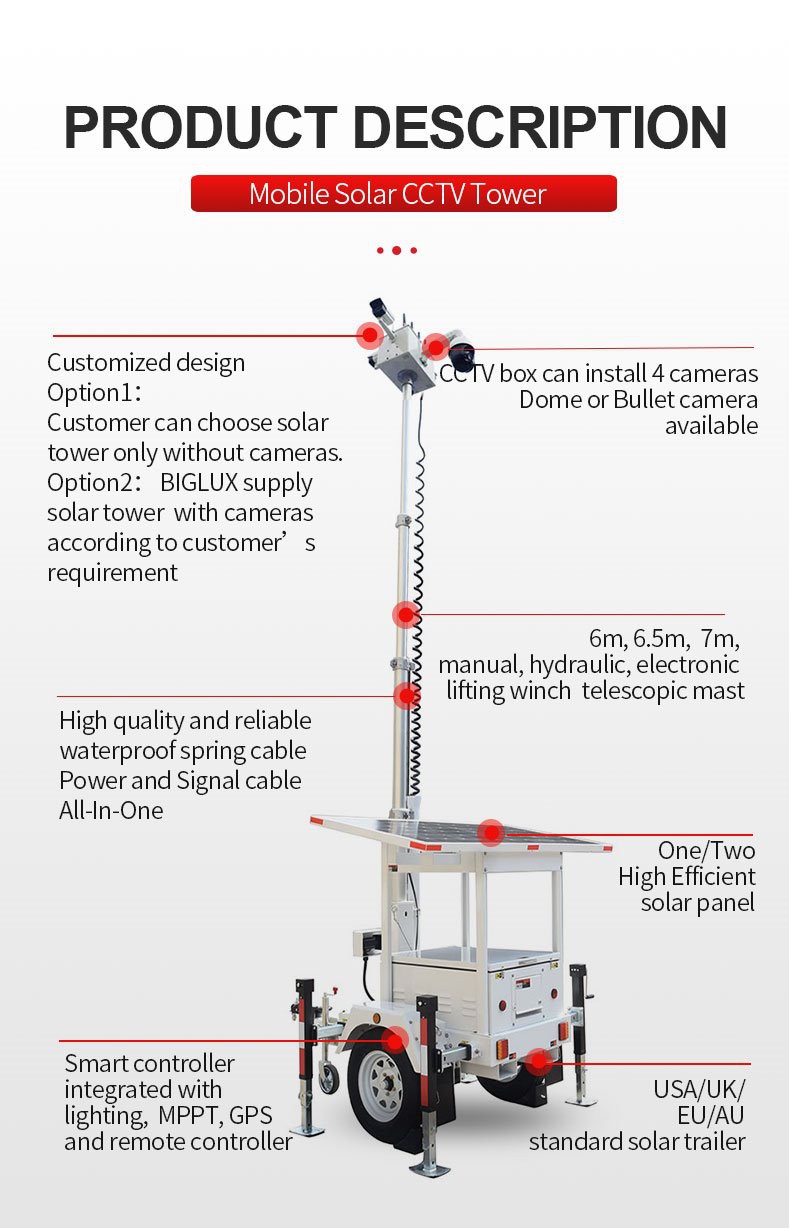

Hikvision camera with mobile solar trailer photo for you reference.
Knowledge News
Check and maintain power distribution cabinets, power transmission lines, and lightning protection grounding system.
Check and maintain power distribution cabinet and transmission line.
Check whether the instrument, switch and fuse of the power distribution cabinet is damaged, whether the contact of each component is loose, heating and burning phenomenon, whether the leakage protector action is sensitive and reliable, whether the contact of the contact switch is damaged.
The maintenance of the distribution cabinet mainly includes regular cleaning of the distribution cabinet, repair and replacement of damaged parts and instruments; Replace and tighten the wiring terminals of each component; The corroded parts of the box should be cleaned in time and coated with anti-rust paint.
Regular inspection of the main and branch lines of power transmission lines to avoid dropping lines, connecting lines, vertical lines, walls and other phenomena; There shall be no phenomenon of stealing electricity; Check incoming line and customer electricity meter regularly.
Check and maintain the lightning protection grounding system.
(1) The grounding system should be checked and maintained before the thunderstorm season every year, mainly to check whether the link is tight and the contact is good, If there is any abnormality on the ground near the grounding body, dig the ground to spot check the corrosion of the underground concealed part if necessary. If any problem is found, it should be handled in time.
(2) The grounding resistance of the grounding network should be measured once a year.
(3) Before the annual thunderstorm season, the arrester in operation should be tested once using the arrester component aging tester.
Monitoring and testing system inspection.
Large photovoltaic power stations have perfect monitoring and detection systems. All parameters related to power station operation will be summarized through RS485 communication and displayed through the display system practice.
BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years,If you have any interested Hikvision camera with mobile solar trailer, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.
