Core Advantages of HiSOLO Solar Surveillance Trailer /Around-the-clock watching and recording /100% Solar Powered & Portable
Enhanced Portability: Our Mobile Solar CCTV Trailer features a foldable tow design, allowing for easy transportation and setup. It can be quickly deployed to different locations, making it ideal for temporary surveillance needs or events.
Eco-Friendly Solution: Powered by solar energy, this trailer eliminates the need for traditional power sources, reducing carbon footprint and operating costs. The integration of Victron monitoring ensures effective utilization of the battery and solar panel, maximizing energy efficiency.
Comprehensive Security: The CCTV mounting box (equipped with 8-Port POE Switch) supports up to 6 cameras. With customizable camera configurations, it captures and records footage in real-time, enabling effective monitoring and incident management.
Remote Monitoring and Control: Utilizing Victron monitoring technology, the Mobile Solar CCTV Trailer allows for remote access and control of the system. Users can monitor battery status, solar panel performance, and camera feeds from anywhere, ensuring continuous surveillance even when off-site.
Quick and Easy Installation: Setting up the trailer is a breeze, thanks to its user-friendly design and plug-and-play functionality. It can be rapidly deployed in various locations, providing immediate security coverage without the need for complex installation processes.
Versatile Applications: The Mobile Solar CCTV Trailer finds applications across a wide range of industries and scenarios. It is suitable for construction sites, remote areas, public events, parking lots, temporary installations, and any location where temporary or off-grid surveillance is required.
Durability and Weather Resistance: Constructed with hot-dip galvanized steel components and IP65 waterproof rating, the trailer is built to withstand harsh environmental conditions. It is weather-resistant, ensuring reliable operation and protection of the CCTV system and other components.
Video Description
Products Details

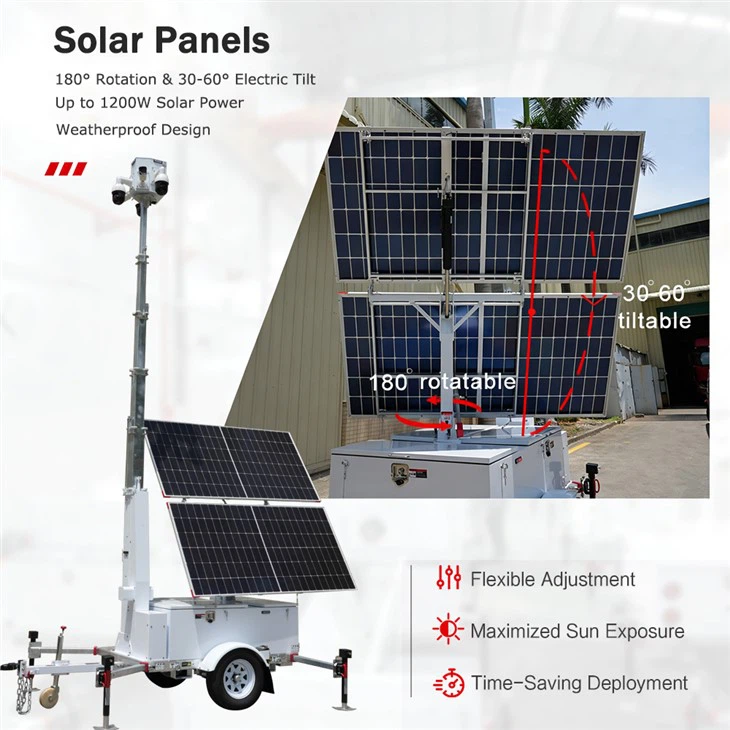

2*450W/2*600W Solar Panels

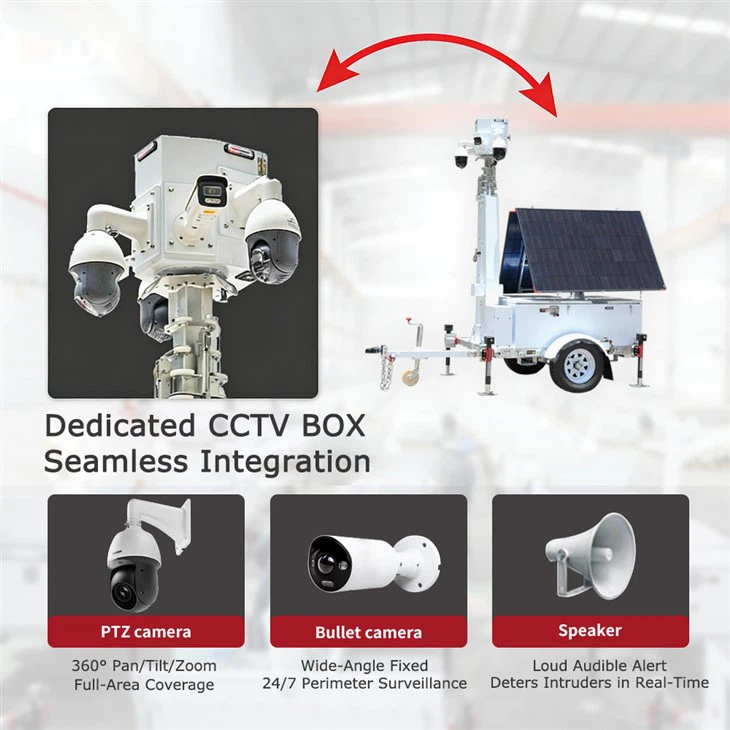

6-sided CCTV Box with AI Camera(Or without camera)
7m-9m manual/electric telescopic mast
IP65 waterproof
Hot-dip galvanized
8 square ft Oversized Trunk
Products Specifications
| Product | HiSOLO Mobile Solar Surveillance Trailer Tower | |||
| Models | BL2P-G7MHSS0B | BL2P-L7MHSS0B | BL2P-G9EHSS0P | BL2P-L9EHSS0P |
| Solar Panel Type | Monocrystalline Silicon Type, Dual Facial, 180° Manual Rotating, 30°-60° Electric tilting | |||
| Solar Panel Wattage | 2*450W | 2*600W | ||
| MPPT Controller | 50A MPPT (With Remote Battery Monitoring) | 150/45A MPPT (With Remote Battery Monitoring) | ||
| Battery | GEL, 9600Wh, DC 24V | LFP, 8038Wh, DC 24V | GEL, 12000Wh, DC 24V | LFP, 14336Wh, DC 24V |
|
Battery AC Charger
|
1.5kW, AC110V/230V
|
|||
| CCTV Box |
350° Rotatable, 6-sided, back-opened, included 8-Port POE Switch. CCTV mounting box for surveilance system
|
|||
| Optional Accessories | Cameras, 4G Router, NVR, Loud Speaker | |||
| Cables | Buit-in composite cable: Network Cable+Power Cable | |||
| Telescopic Mast | 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | ||
| Trailer Type | US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings | |||
| Outrigger | 4pcs Manual Outriggers, Foldable,Y Shape | |||
| Working Temperature | -20°C-55℃ | |||
| Solar Charging Time | 9 Hours (Theoretical) | 10 Hours (Theoretical) | ||
| Battery Backup Time | 72 Hours Under 90W Load | 72 Hours Under 133W Load | ||
|
Extended Dimensions
|
3522*3246*7232mm
|
4037*3246*9350mm
|
||
| Retracted Dimension |
3522*1630*2880mm
|
4037*1630*3100mm
|
||
| Gross Weight | 1000KG | 1100KG | ||
| Container Loading | 20GP:6 units, 40HQ: 14 Units | |||
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |||

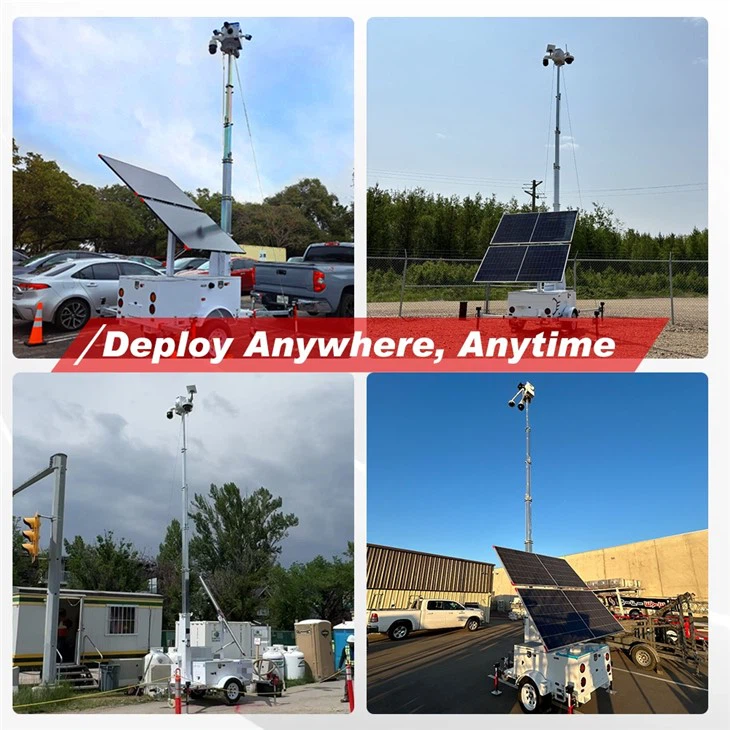

Customer Cases
Packaging & Logistics
Packaging Details
* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.
* Bulk Shipping: 6 units can be loaded into a 20GP container. 14 units fit perfectly into a 40HQ container.
Logistics Highlights
We handle every step with precision-from using forklifts to load the well-packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.
Company Profile
in Mobile Power Solutions
BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.
These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.
As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.
Certificate Of Honor
ISO
CE
DOT
CR
Certificate name
Customer Visit
FAQ
Can I customize the LOGO and colors on your solar trailer?
+
-
Yes, Color and LOGO can be customized.
Does the solar trailer include a CCTV system?
+
-
No, most clients prefer buying a bare trailer and installing cameras locally. our CCTV box is equipped with POE for easy connection, with DC 24V/48V & AC 220V/110V options, it ensures you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you need.
Do you provide shipping services?
+
-
Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.
What's the production lead time?
+
-
Standard sample is generally shipped within 2 weeks, batch orders are generally about 1 month. Please kindly consult our sales team for specifics.
How many cameras can the solar trailer hold?
+
-
Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.
Is there a lithium battery option?
+
-
Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.
What's the warranty period?
+
-
2-year standard warranty. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
