Products Ddtails

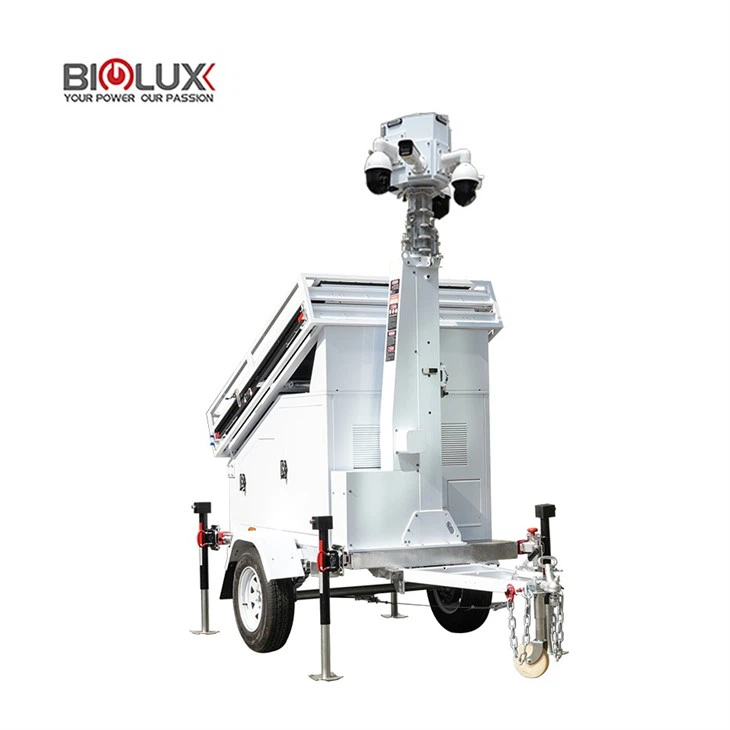

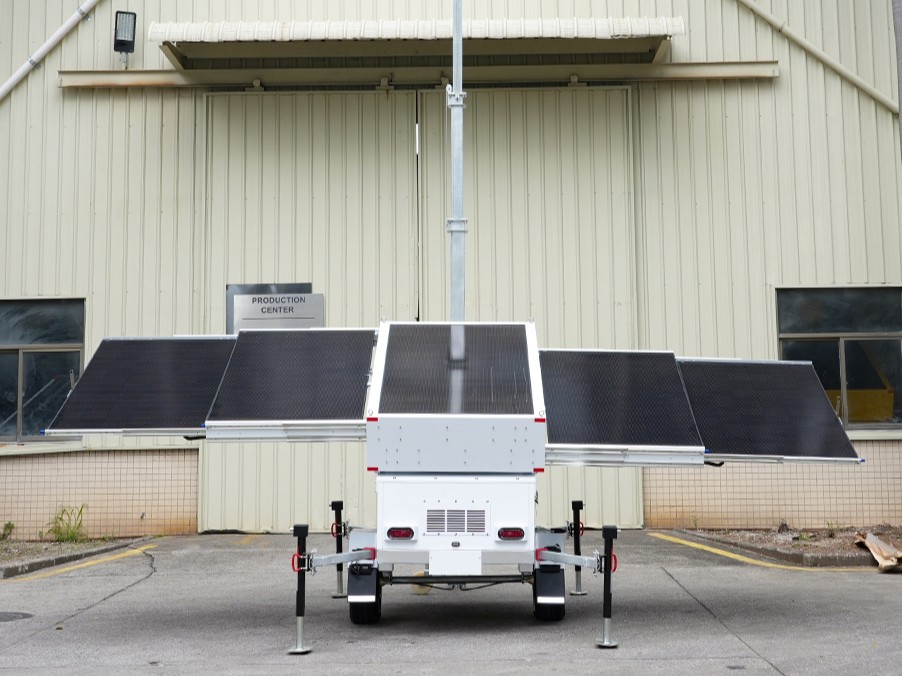

2250W High-Efficiency Solar Power
Harness the sun with our massive 2250W monocrystalline solar array. Designed for rapid energy harvest, these high-conversion panels can fully charge the system in just 7.7 to 8 hours of peak sunlight. This ensures your security operations remain fully powered even in remote locations without access to the grid, significantly reducing operational costs and carbon footprint.

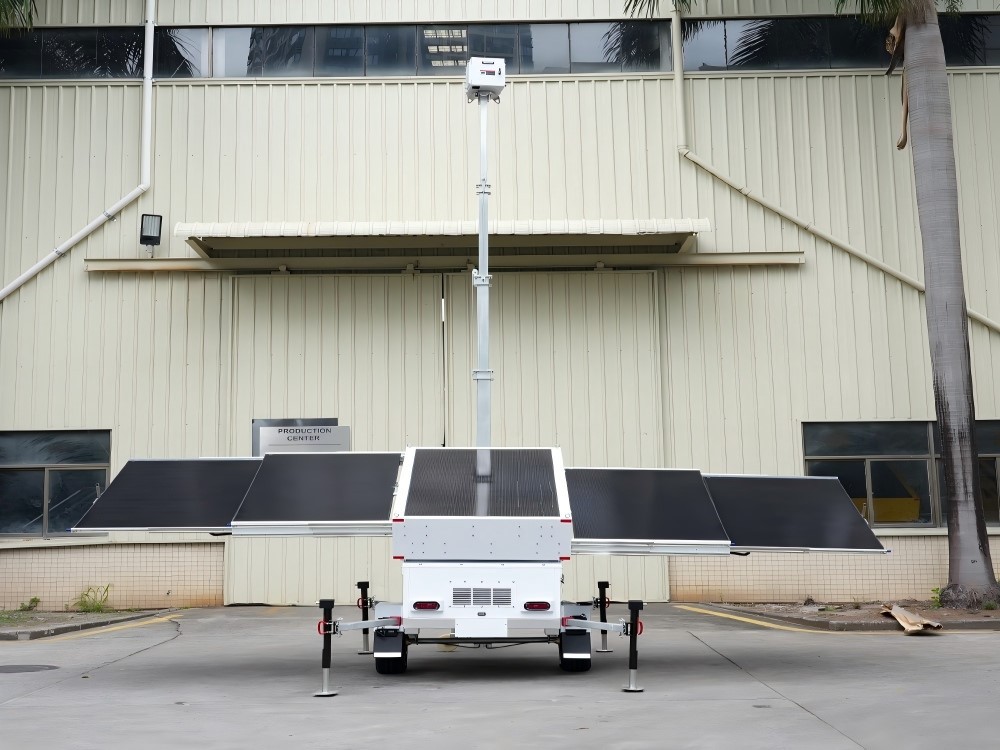

180° Rotatable Plug-and-Play CCTV Box
Versatility is at the heart of the HiSTAR-V design. Our 180° rotatable mounting box is pre-engineered for rapid deployment of up to 4 or 5 high-definition cameras, thermal sensors, or loudspeakers. Furthermore, it is fully compatible with Starlink satellite systems, enabling high-speed data transmission and remote real-time monitoring even in the most isolated global locations.

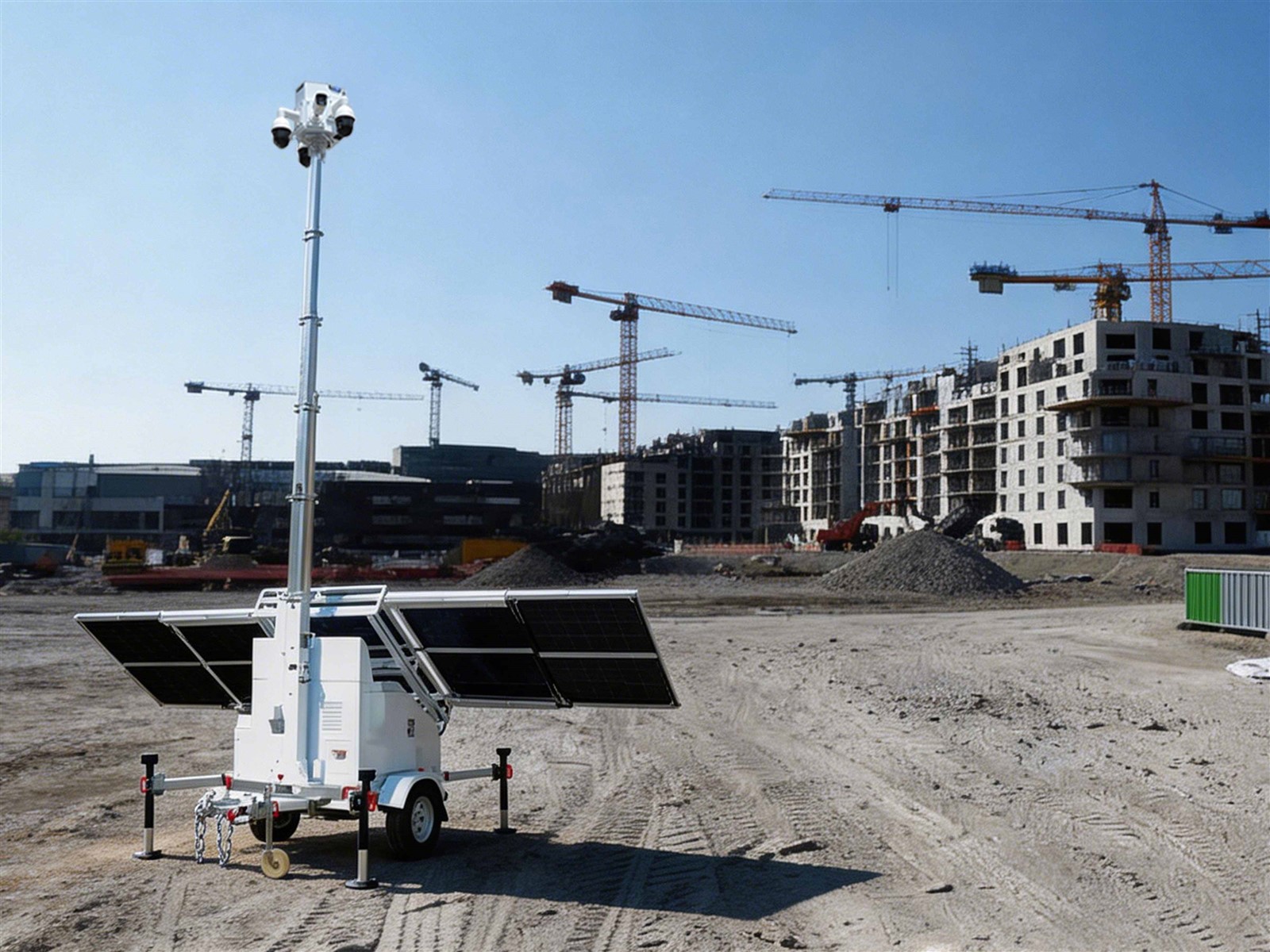

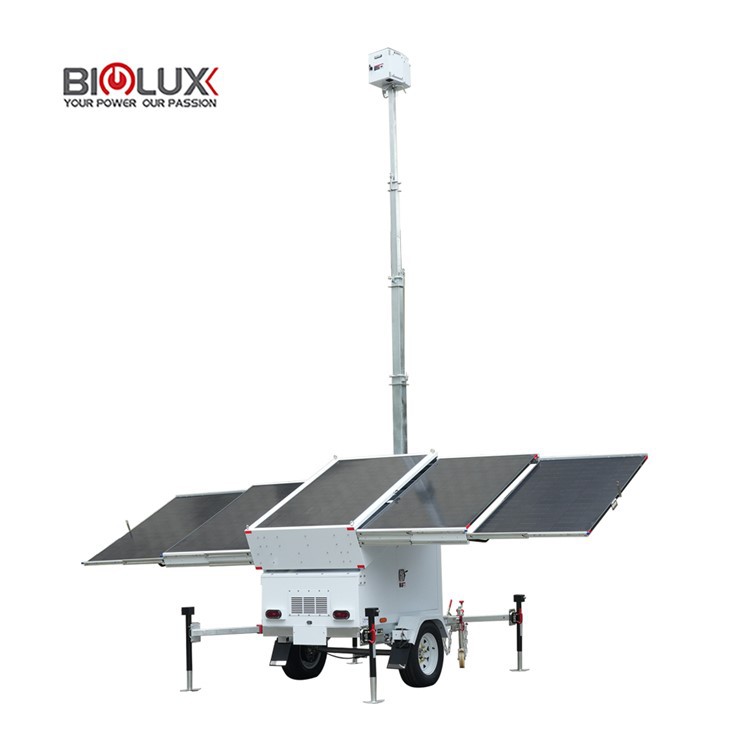

8.5m Pro-Grade Galvanized Mast: Maximum Coverage, Zero Blind Spots
levate your perspective with a heavy-duty 8.5-meter telescopic mast. Constructed from hot-dip galvanized square steel, this 5-stage mast is built to withstand high winds and harsh industrial conditions. The extended height allows for long-range surveillance over large construction sites or mining zones, effectively deterring theft and providing comprehensive site overviews.

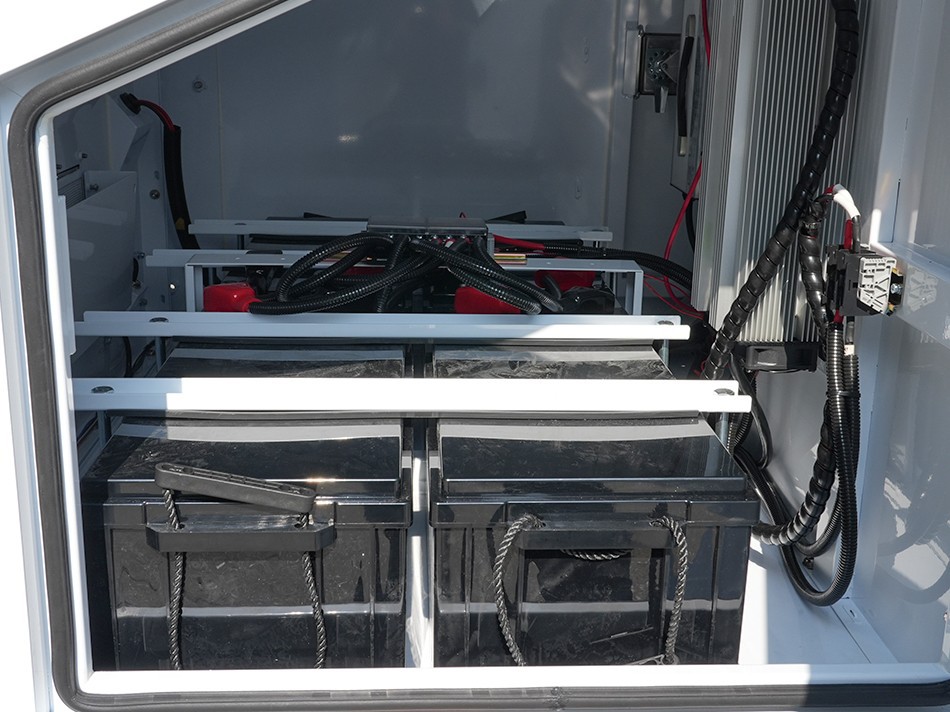

19.2kWh Energy Reservoir: Reliable Autonomy in Low Light
TSecurity doesn't sleep, and neither does our power system. With a massive 19.2kWh deep-cycle battery bank, this trailer stores enough energy to run high-definition cameras and sensors for up to 28 hours without a single ray of sunlight. The independent, temperature-controlled battery compartment ensures optimal performance and longevity, even in extreme outdoor climates.

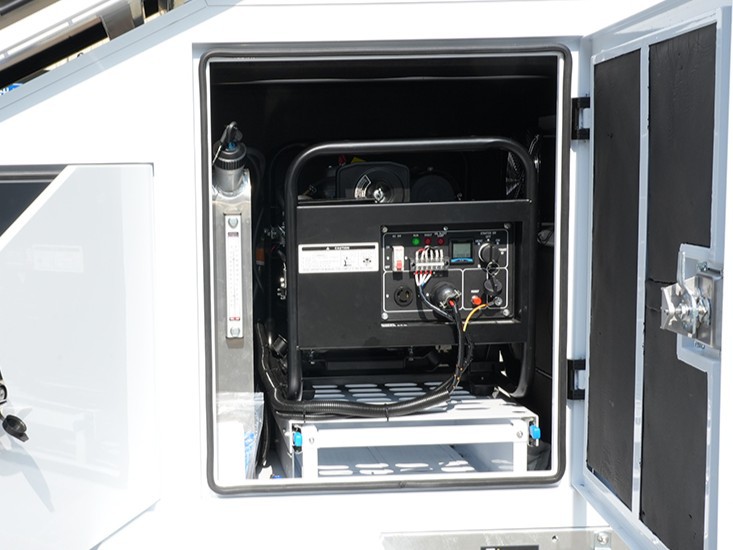

Intelligent Hybrid Dual-Backup: 365-Day Uninterrupted Security
Never worry about cloudy days or extended winters again. Our HiSTAR-V series features a smart hybrid system that integrates a high-performance diesel generator as a secondary power source. The system intelligently monitors battery levels and automatically triggers the generator at low voltage, providing a fail-safe guarantee that your site stays protected 24/7/365, regardless of the weather
Products Specifications
| Product | Mobile Solar Surveillance Trailer Tower | |
| Models | BL5P-G7MHRS1B | BL5P-G9EHRS1P |
| Solar Panel Type | Monocrystaline Slicon Type, Dual Facial, Rotatable and Angle adjusted | |
| Solar Panel Wattage | 5*450W | 5*450W |
| Controller | Epever MPPT | Victron MPPT |
| Battery | 19200Wh, DC24V | 20480Wh, DC24V |
| Devices | CCTV Mounting Box For Surveilance System | |
| Generator |
Back-up Generator with auto-start 1). Power Rating: 3KW 2). Fuel Tank: 50L |
|
| Cables | Buit-in composite cable: Network Cable+Power Cable | |
| Telescopic Mast | 7 Meters, Manual Liting System | 9 Meters, Electric Liting System |
| AC Charger | 2.5kW | |
| Trailer Type | US/EU/AU Standard, Signel Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings | |
| Outrigger | 4pcs Manual Outriggers, Foldable,Y Shape | |

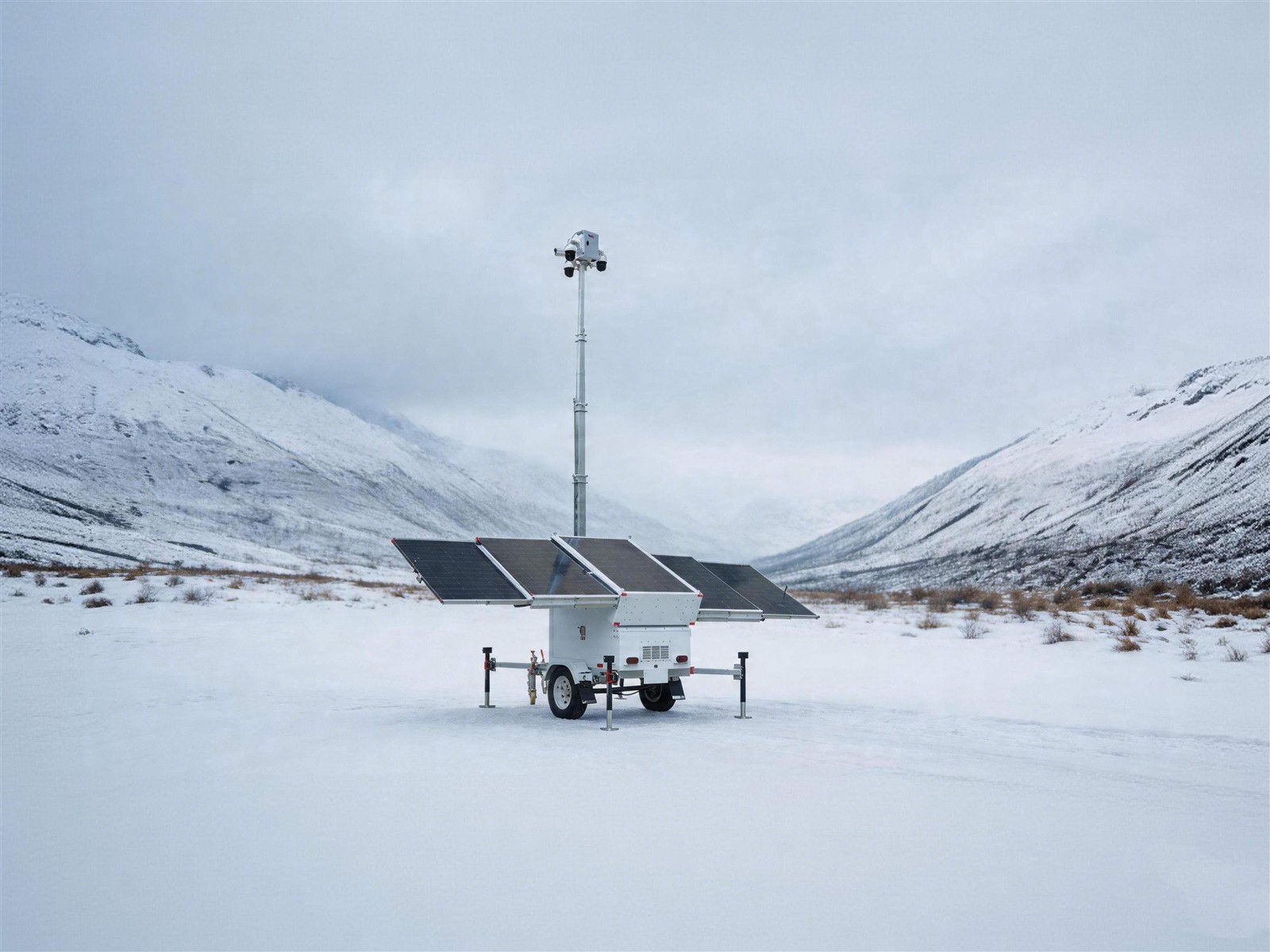

| Working Temperature | -25°C-60℃ | |
| Charging Time | 7.7 Hours (Theoretical) | 7.7 Hours (Theoretical) |
| Running Time | 72 Hours for 213W | 72 Hours for 213W |
| Optional Devices | Cameras,4G Router,NVR,Speaker, Remote Control, Antenna,Inverter, 360° Rotation, And 90°Tilt forlights,Dimmable Lights,Lithium Battery | |
| Operate Dimensions | 6100x3990x7700 mm | 6100x3990x7700 |
| Gross Weight | 1500KG | 1500KG |
| Container Loading | 20GP:3 units, 40HQ: 7 Units | |
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |

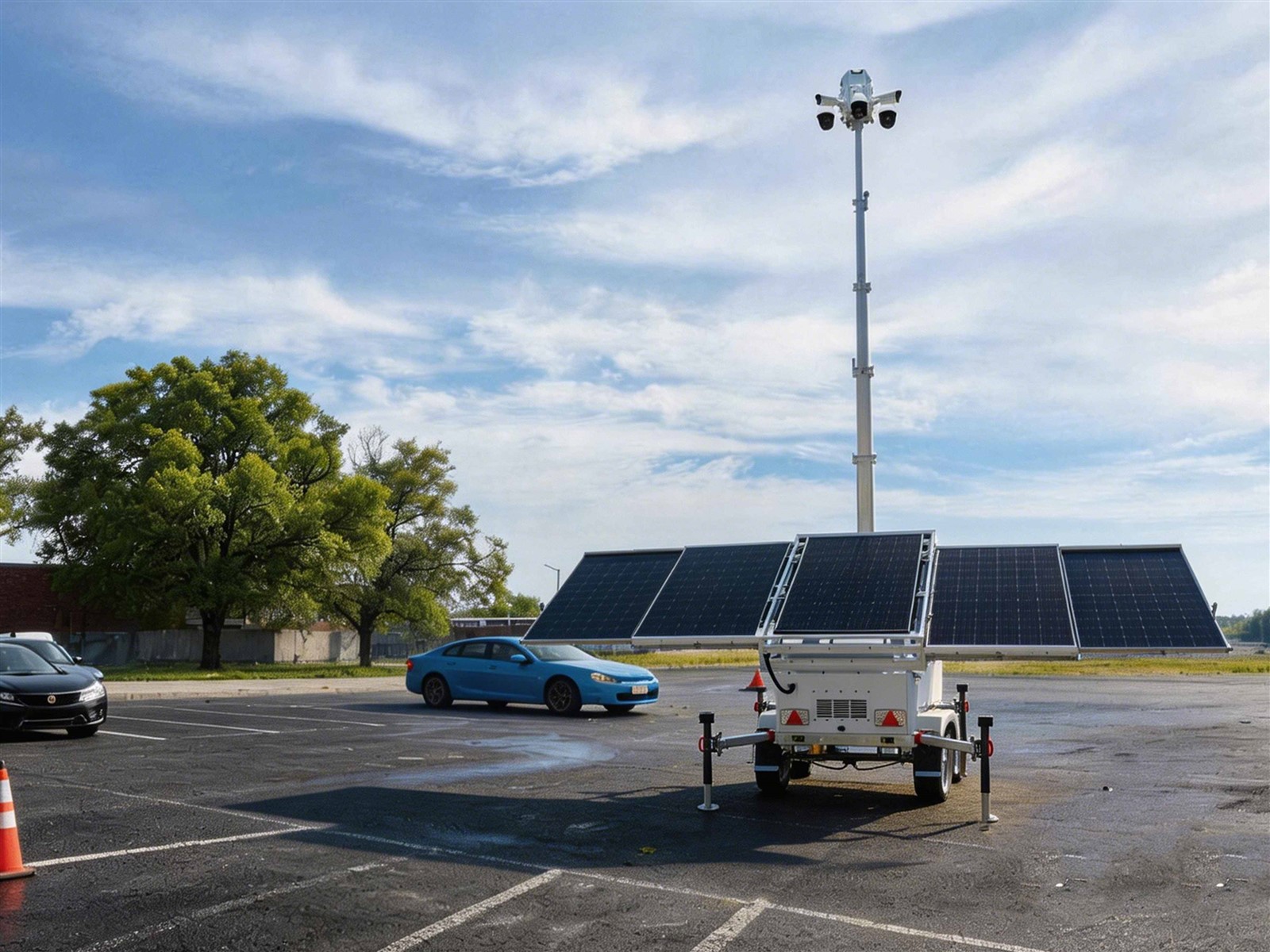

Customer Cases
Packaging & Logistics
Packaging Details
* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.
* Bulk Shipping: 6 units can be loaded into a 20GP container. 14 units fit perfectly into a 40HQ container.
Logistics Highlights
We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.
Company Profile
in Mobile Power Solutions
BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.
These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.
As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.
Certificate Of Honor
ISO
CE
DOT
CR
Certificate name
Customer Visit
FAQ
Can I customize the LOGO and colors on your solar trailer?
+
-
Yes, Color and LOGO can be customized.
Does the solar trailer include a CCTV system?
+
-
No, most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box equip POE for easy connection, with DC 24V/48V & AC 220V/110V options, ensure you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you needed.
Do you provide shipping services?
+
-
Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.
What's the production lead time?
+
-
Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.
How many cameras can the solar trailer hold?
+
-
Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.
Is there a lithium battery option?
+
-
Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.
What's the warranty period?
+
-
2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
