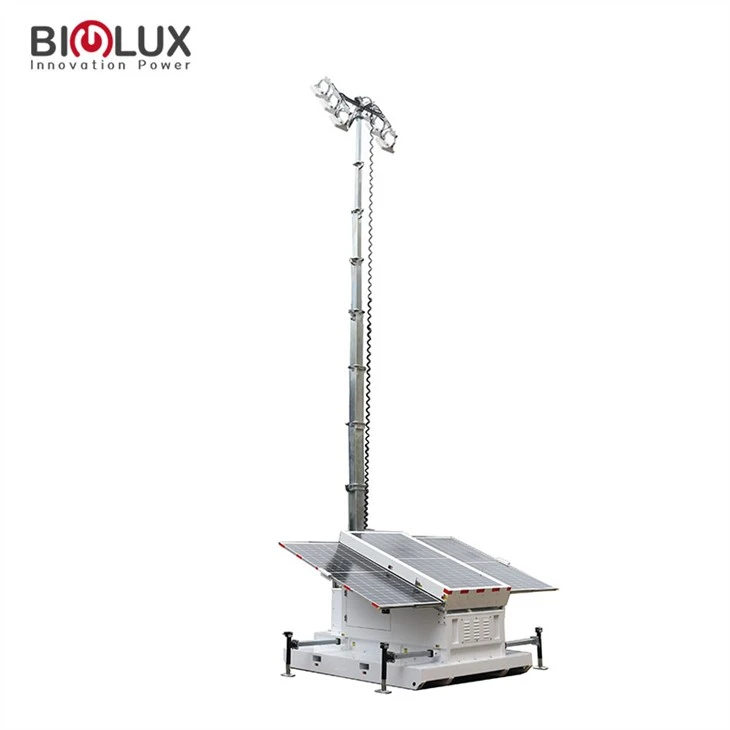

Skid solar lighting towers are very effective in the construction industry as they can easily be transported due to their compact size. Once deployed they open up, They also can easily be set up and charged for using.
Skid light tower with solar generator specification：
Model: HLS4553-1504-9H
Solar System
Solar Panel: 3 × 455W Monocrystalline Silicon
Battery System
GEL: 6 × 200Ah
Voltage: DC12V
Series & Parallel: 2 in series, then parallel
Power Capacity: 14400W·h
Light System
LED Light: 4× 150W Outdoor LED flood light
Protection Class: IP65
Lumens: 90000Lm
Voltage: DC24V
Control System
Solar Controller: MPPT 60A
Efficiency: 95%+
Mast System
Steel Q235 Hot Dip Galvanized 9m / 30ft Manual 360° Electric 90° 5kg ~ 100kg / 11lb ~ 220lb 117km/h / 73mph

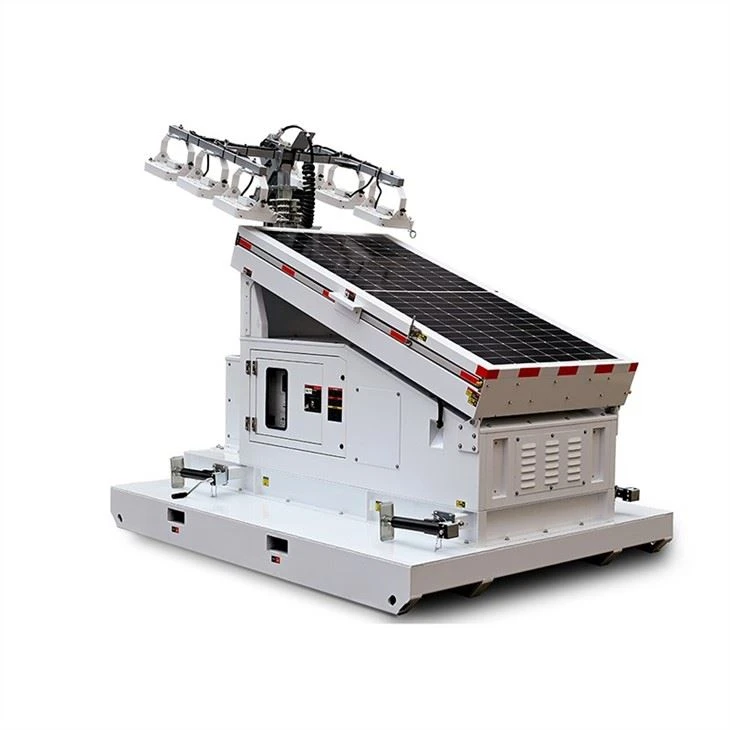

Solar Panel Assembly: This unit is comprised of 3*455W solar panels, The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The solar panels are mounted to a frame angled at 40° to capture the intensity of the sun for optimized light intake.
Batteries: This unit features a 6*200Ah battery bank.
Solar Charge Controller: The solar-powered system has a 60-amp charge controller.
Battery Charger: This system comes with a 120V battery charger, which can be plugged into a local wall outlet during use, such as prior to deployment or when local power is available at the remote site. We can add a 220V or 240V battery charger to power additional equipment from the solar tower at an additional cost (portable battery chargers are also available).
Knowledge Tip:
Solar tower lights are suitable for areas with insufficient power on the grid. We are already seeing trends and markets in solar lighting among our utility customers. Our customers realize 4 major benefits through the use of solar light solutions.
1. Independent Power
Whether connected to the grid or solar generator, BIGLUX lighting systems perform reliably. However, with our solar light tower, your team will not need to dig numerous ditches, cut through existing infrastructure or connect to your power grid. because it's independent power station.
2. Easy installation
In remote locations, it takes a lot of time and money. Our solar tower lighting system provides utility providers with simple systems with considerable flexibility, enabling them to deploy lighting solutions with greater flexibility and lower costs.
3. Constant work
BIGLUX understands the interplay between local geography and available solar radiation as the seasons change. They design the size of the solar farm according to the customer's needs. This ensures that the lights work reliably under the most extreme environmental conditions on site.
4. Industry leading support
BIGLUX combines more than a decade of experience in delivering cost-effective lighting solutions to customers to meet today's infrastructure challenges.
This customer-focused approach ensures that we develop reliable solutions that address business needs while meeting your high standards.
If you have any interested skid light tower with solar generator please welcome to contact us.
BIGLUX and Salam Petroleum Service(SPS) have completed a great project solar light tower（616 units） for the World Cup Qatar 2022 Stadium Parking Lot.
If you have any interested please let us know so that We can send you the catalog for you reference, or visit our website directly https://www.bigluxled.com.
We also have so many successful projects to share with you.
Looking forward to working with you.
