What is mobile solar trailer?

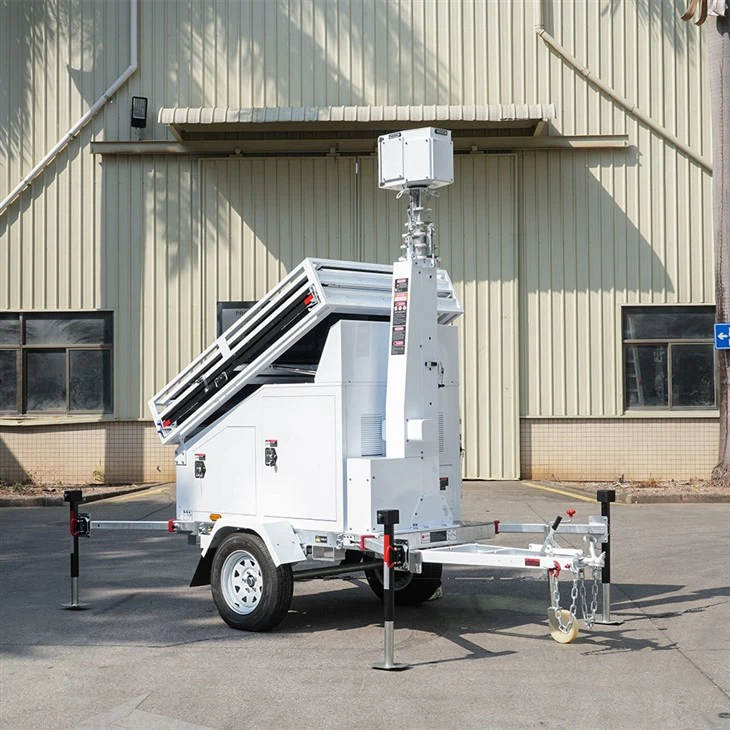

A solar trailer (HiSTAR Solar Light & CCTV Tower) is a portable integrated system that harnesses solar energy to power 24/7 surveillance and outdoor lighting functions. It typically consists of high-power bifacial solar panels, an MPPT charge controller, a large-capacity battery bank for energy storage, a telescopic galvanized mast, a 360° rotatable CCTV box with starlight camera, and a rugged trailer base compliant with international standards.
These trailers are engineered for on-site, off-grid use, providing a reliable, eco-friendly mobile security and lighting solution for various commercial and industrial scenarios where grid power is unavailable or temporary protection is needed. The solar panels capture sunlight to charge the battery bank, which powers the high-definition starlight surveillance camera for crystal-clear night vision and the strobe light for intruder deterrence, ensuring uninterrupted security and lighting coverage at all times.
Product features:
Portability: Compliant with US/EU/AU trailer standards, equipped with a foldable tow bar, forklift holes and lift rings for easy transportation and on-site positioning, no tools required for quick setup.
Solar Panels: Integrated with 5×450W bifacial solar panels to boost power generation efficiency, featuring electric angle adjustment (25°-53°) to adapt to varying latitudes and a foldable design for easy installation.
Battery Storage: Multiple large-capacity options including GEL (19200WH) and LFP (up to 20480WH) batteries; with an independent battery compartment, individual BMS protection for each battery, ensuring sustained runtime even on rainy days.
Backup Power: Equipped with a 3KW auto-start backup generator with a 50L fuel tank, providing continuous power supply for the surveillance and lighting system during prolonged overcast weather or extreme solar-insufficient conditions.
Security & Surveillance: Built-in starlight camera delivers ultra-clear 24/7 night vision; the CCTV box is fitted with blue&white strobe light and audio alarm for powerful intruder deterrence, supporting up to 6 cameras with 8-port POE interface.
Durability & Anti-theft: Adopts hot-dip galvanized telescopic mast and outriggers (zinc coating ≥100 μm) with outdoor powder-coated shell for rust resistance; multi-layer anti-theft door, built-in hinge structure and mast internal anti-cutting wire to prevent intentional damage.
Waterproof Performance: Independent electrical and battery compartment with semi-sealed structure, rubber strip sealing and direct rainwater drainage design, preventing water seepage even in heavy rain.
Easy Maintenance: Equipped with three openable outer doors, user-friendly electrical cabinet doors and a 350° rotating rear-opening monitoring box; 8-port POE power supply interface for plug-and-play of surveillance devices.
Intelligent Control: Configured with 80A/90A MPPT charge controller with remote battery monitoring function, real-time tracking of battery status and solar charging efficiency, DC 48V system voltage for stable power supply.
All-in-one Function: Integrates solar power generation, energy storage, 24/7 surveillance and outdoor lighting in one unit, realizing multi-scenario off-grid application without complex wiring.
Eco-friendly Operation: Runs on clean solar energy for off-grid operation, no fuel combustion, zero emissions and silent working, meeting low-carbon environmental protection requirements.
Specification:
Solar Panel: 5×450W, Bifacial; 25°-53° Electric angle adjustment
Battery: GEL 19200WH / LFP 20480WH, DC 48V; individual BMS protection
Controller: 80A/90A MPPT, 95% efficiency with remote battery monitoring
Backup Generator: 3KW Power Rating, 50L Fuel Tank, Auto-Start System
Telescopic Mast: 6.5 Meters (Manual Lifting) / 8.5 Meters (Electric Lifting), Hot-dip Galvanized Steel, Built-in Wiring
CCTV Box: 350° Rotatable, 6-sided back-opened; 8-Port POE switch, blue&white strobe light for surveillance system
Trailer: US/EU/AU Standard, Single Axle, Foldable Tow Bar, Forklift Holes & Lift Rings
Battery AC Charger: 2.5kW AC 110V/230V
Cables: Built-in composite cable (Network Cable+Power Cable)
Charging Time: 7.7 Hours (Estimated)
Battery Backup Time: 72 Hours Under 213W Load
Working Temperature: -20°C-55℃
Dimension (Retracted): 1650*2200*3080mm / 1650*2200*3400mm
Dimension (Extended): 6100*3990*7700mm / 6100*3990*9600mm
Container Loading: 3 units/20GP, 7 units/40HQ
Application:
Construction Site: Providing 24/7 surveillance and outdoor lighting, preventing theft and vandalism, and ensuring the safety of construction equipment and personnel in off-grid construction areas.
Mining & Oil Site: Realizing remote monitoring and continuous lighting in harsh and off-grid mining/oil fields, identifying potential safety hazards in a timely manner and ensuring on-site operational safety.
Road Construction: Offering temporary security and lighting for road construction sections, especially in remote suburban or rural areas, facilitating night construction and traffic management.
Parking Lots: Delivering mobile surveillance and lighting for outdoor and temporary parking lots, enhancing parking safety and deterring vehicle theft and property loss.
Outdoor Activities: Providing temporary lighting and security monitoring for large-scale outdoor events, sports meets and camping sites, ensuring the smooth progress and safety of activities.
Emergency Security: Serving as a rapid-deployment security solution for disaster-stricken areas, accident sites and other emergency scenarios, providing real-time surveillance and lighting for rescue work.
Temporary Security: Meeting the short-term security and lighting needs of temporary construction sites, pop-up markets and temporary office areas, with flexible deployment and quick disassembly.
Rental Business: As a high-value mobile asset for rental companies, catering to the on-demand security and lighting needs of various customers in different industries and scenarios.
Traffic Monitoring: Realizing mobile traffic monitoring and road lighting for temporary traffic control sections, road maintenance areas and remote highway sections, assisting traffic management.
Off-grid Areas: Providing long-term surveillance and lighting for remote off-grid areas such as rural villages, forestry areas and border posts, where grid power is inaccessible.
Customer Cases:
In addition, we can also provide some customized services. Feel free to inquire today!
