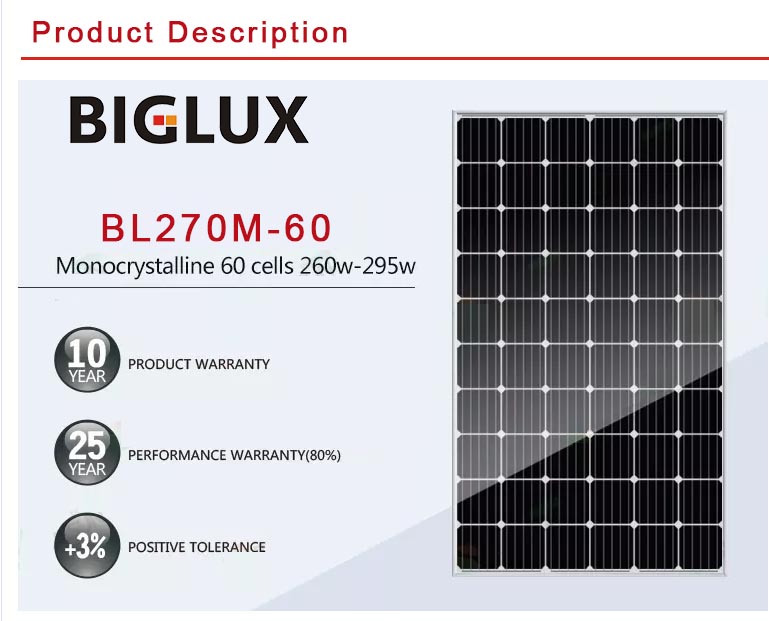

Product Description
Moduel | BL260M-60 | BL270M-60 | BL280M-60 | BL290M-60 | BL295M-60 |
Rated Maximum Power at STC | 260 | 270 | 280 | 290 | 295 |
Open Circuit Voltage(Voc/V) | 38.08 | 38.46 | 39.05 | 39.46 | 39.64 |
Maximum Power Voltage(Vmp/V) | 30.81 | 31.33 | 31.68 | 32.07 | 32.29 |
Short Circuit Current(Isc/A) | 8.92 | 9.09 | 9.36 | 9.56 | 9.67 |
Maximum Power Current(Imp/A) | 8.44 | 8.62 | 8.84 | 9.11 | 9.23 |
Module Efficiency(%) | 15.90 | 16.51 | 17.12 | 17.74 | 18.04 |
Power Tolerance | -0~+3% | ||||
Standard Test Condition(STC) | Irradiance 1000W/m2, Cell Temperature 25℃, Air Mass1.5 | ||||

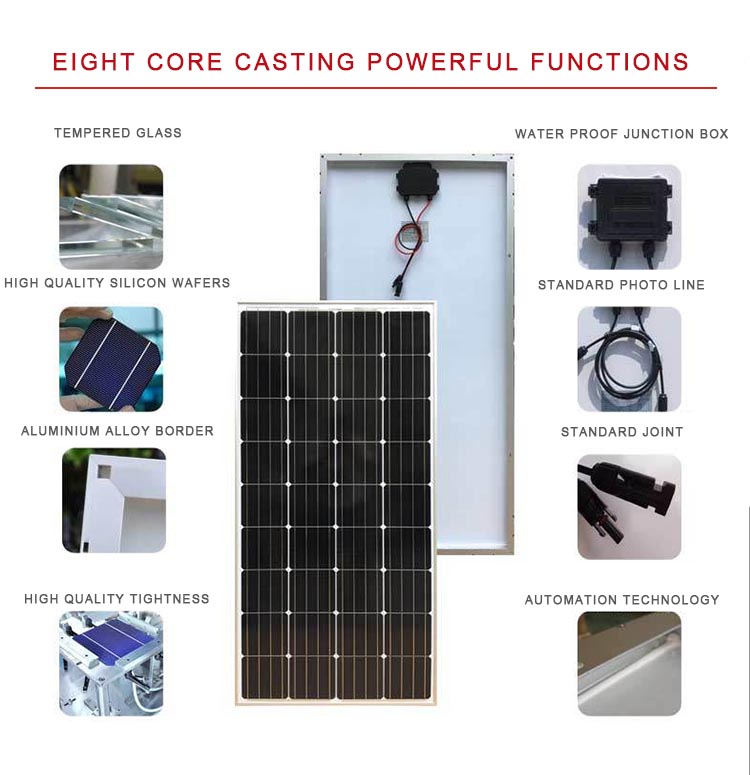

Detailed & Production
Glass
Antireflective glass
Translucency of normal luminance is increased by 2%
Module efficiency is increased by 2%
Self-cleaning function
Service life is as long as 25 years (30 years optional)
Solar Cell
High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID
Frame
Conventional frame
Silver or black frames are optional
Boost bearing capability and prolong service life
Serrated-clip design tensile strength
Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

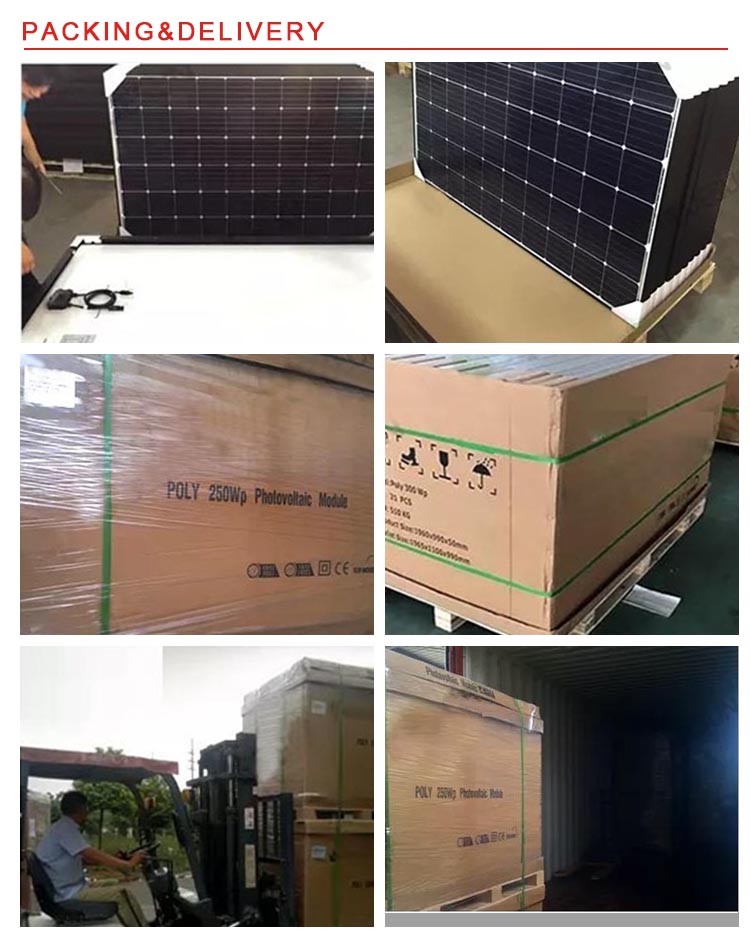

By sea | Delivery from Shenzhen seaport |
By air | Departure from Shenzhen Bao'an Airport or HK International Airport |
By express | By TNT/DHL |
FAQ
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer: You can pay via T/T
4. What's the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001: 2000, CE, RoHS, certifications for all of our products.
6. Where is your main market for your products?
Answer: Most of our Biglux brand products are exported to Southeast Asia, Africa and Mid East.
