Solar Trailer System
video
Solar Trailer System

Solar Trailer System

BIGLUX latest Solar hybrid cctv security camera

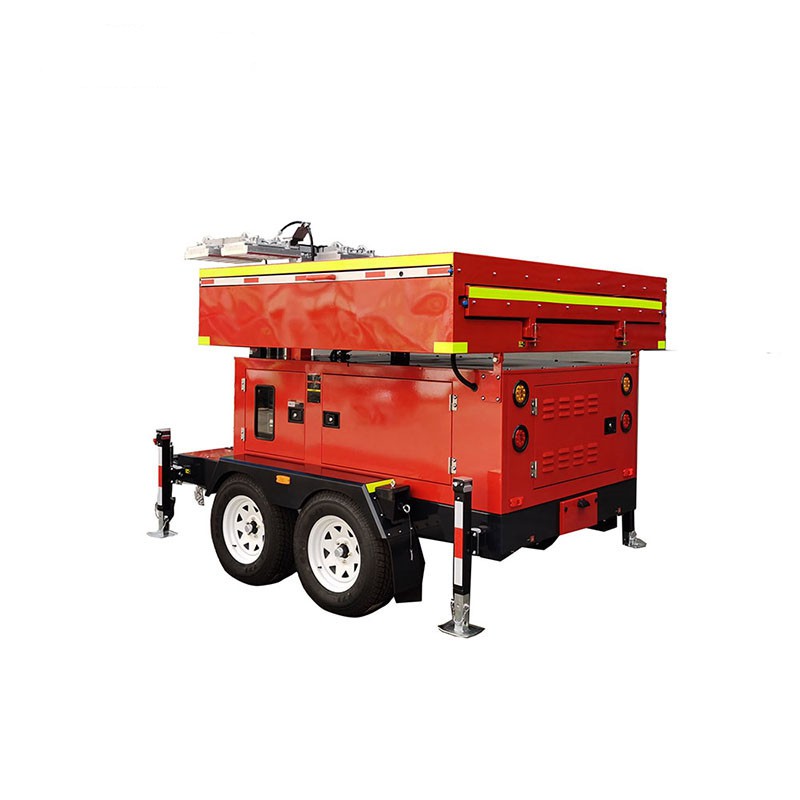

BIGLUX latest Solar trailer system, it can install light or cctv system or your own device.



Specification:

Solar Panel: 8 × 575W,MonoCrystalline solar panel, Hydraulic Lifting
GEL Battery: 16 × 200Ah,DC12V,38400W ·h
Diesel Genset: 5kW/5kVA,AC220V/110V, Fuel tank: 45L, Single, 50/60HZ
Battery Charger: 2 × 2.5kW/2.5kVA,AC220V/110V
with CCTV mounting box or light
Spring Cable:2*CAT6 cable + 1*awg13+1*awg16 cable
Mast: Steel Q235,Square Telescopic type,6.5m,5 Sections,
Electric Winch Lifting,100kg Load,117kph Windproof
Controller: 100A MPPT,95% Efficiency
Trailer: EU/AU/ Standard,Ball Hitch,Dual Axle,Manual Outrigger
Solar Charging Time: 6 hours
Running Time: 62 hours for 500 W, 51 hours for 600W (pure solar),
consistently work by backup generator in case needed.
system voltage:48V

DS-2DE7A825IW-AEB(T5) Hikvision DS-2DE7A825IW-AEB(T5) 8 MP 25× IR Network Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Key Feature
1/1.8" progressive scan CMOS  High quality imaging with 8 MP resolution
 Excellent low-light performance with powered-by-DarkFighter technology
 Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
 25× optical zoom and 16× digital zoom provide close up views over expansive areas
 Expansive night view with up to 200 m IR distance
 Focuses on human and vehicle targets classification based on deep learning
 Face capture: Up to 5 faces captured at the same time

product-915-904



product-1212-1212

product-800-800



product-800-491



product-1280-854

product-1280-854



product-800-600









Solar trailers, also known as solar-powered trailers or solar generator trailers, are mobile units equipped with solar panels, batteries, and power conversion systems. They are designed to provide renewable and sustainable power in remote areas or during emergencies where grid electricity may not be readily available.

Solar trailers typically consist of a trailer or a mobile platform that houses solar panels on top to capture sunlight. These solar panels convert sunlight into electricity, which is then stored in batteries for later use. The batteries act as a power storage system, allowing continuous power supply even when sunlight is not available.

Solar trailers are versatile and can be used for various applications such as powering construction sites, events, outdoor activities, disaster relief efforts, and remote locations. They can provide power for lighting, charging electronic devices, running small appliances, operating tools and equipment, and more.

The advantages of solar trailers include:

Renewable Energy: Solar trailers harness clean and renewable solar energy, reducing reliance on fossil fuels and minimizing environmental impact.

Portability: Solar trailers are mobile and can be easily transported to different locations as needed, providing power wherever it is required.

Off-Grid Capability: Solar trailers operate independently of the grid, making them suitable for remote areas or situations where grid electricity is unreliable or unavailable.

Noiseless and Emission-Free: Solar trailers produce electricity without noise or emissions, offering a quiet and environmentally friendly power solution.

Easy Installation and Operation: Solar trailers are typically designed for user-friendly installation and operation, making them accessible to a wide range of users.

Cost Savings: Utilizing solar energy can result in long-term cost savings compared to traditional fuel-powered generators, as sunlight is free and abundant.



Welcome to contact us to learn more.
