Mobile CCTV Trailer Mobile Surveillance Trailer for Public Security
The mobile CCTV trailer mobile solar-powered surveillance trailer is designed for public security, construction site security monitoring, border security, etc. The solar-powered CCTV trailer system features a pull-out solar panel design that meets the needs of easy deployment and transportation.

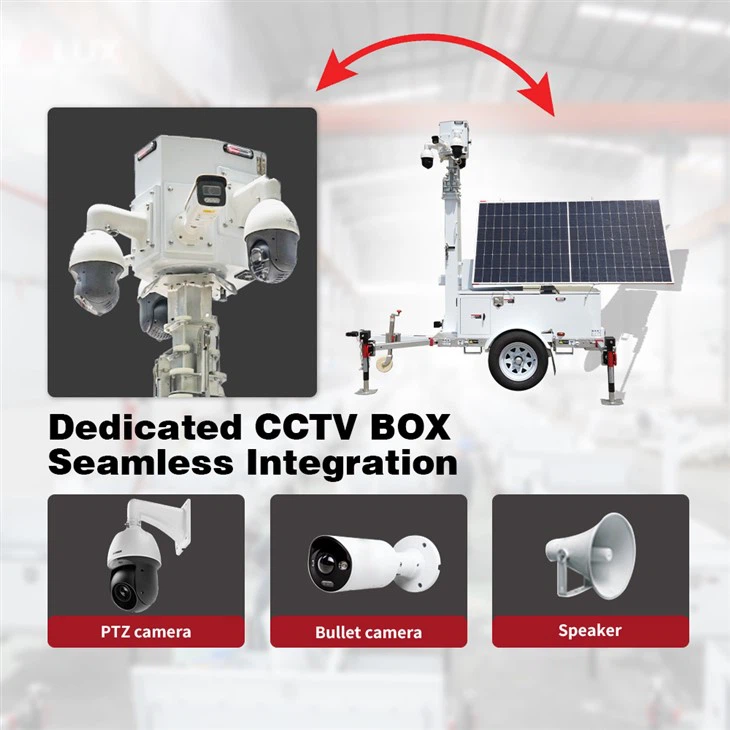

Products Description![]() 2*450W/2*600W Solar Panels ![]() 6-sided CCTV Box with AI Camera(Or without camera) ![]() 7m-9m manual/electric telescopic mast ![]() IP65 waterproof ![]() Hot-dip galvanized ![]() 8 square ft Oversized Trunk Application
|

Parking Lot Public Security Traffic Monitoring
Sometimes, if the weather is extremely terrible or it is long time of raining season, which cause the solar panels couldn't receive the solar power. You can opt for the lithium battery upgrade as an extended backup power solution.
Optional 4MP HD PTZ AI camera and 4MP HD bullet camera can be remotely viewed and controlled by iphone, Android phones, laptops, and desktop computers.
|
CCTV camera day view |
CCTV camera night view |
1
Products Specifications
| Product | HiSOLO Mobile Solar CCTV Trailer Tower | |||
| Models | BL2P-G7MHSS0B | BL2P-L7MHSS0B | BL2P-G9EHSS0P | BL2P-L9EHSS0P |
| Solar Panel Type | Monocrystalline Silicon Type, Dual Facial, 180° Manual Rotating, 30°-60° Electric tilting | |||
| Solar Panel Wattage | 2*450W | 2*600W | ||
| MPPT Controller | 50A MPPT (With Remote Battery Monitoring) | 150/45A MPPT (With Remote Battery Monitoring) | ||
| Battery | GEL, 9600Wh, DC 24V | LFP, 8038Wh, DC 24V | GEL, 12000Wh, DC 24V | LFP, 14336Wh, DC 24V |
|
Battery AC Charger
|
1.5kW, AC110V/230V
|
|||
| CCTV Box |
350° Rotatable, 6-sided, back-opened, included 8-Port POE Switch. CCTV mounting box for surveilance system
|
|||
| Optional Accessories | Cameras, 4G Router, NVR, Loud Speaker | |||
| Cables | Buit-in composite cable: Network Cable+Power Cable | |||
| Telescopic Mast | 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring | ||
| Trailer Type | US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings | |||
| Outrigger | 4pcs Manual Outriggers, Foldable,Y Shape | |||
| Working Temperature | -20°C-55℃ | |||
| Solar Charging Time | 9 Hours (Theoretical) | 10 Hours (Theoretical) | ||
| Battery Backup Time | 72 Hours Under 90W Load | 72 Hours Under 133W Load | ||
|
Extended Dimensions
|
3522*3246*7232mm
|
4037*3246*9350mm
|
||
| Retracted Dimension |
3522*1630*2880mm
|
4037*1630*3100mm
|
||
| Gross Weight | 1000KG | 1100KG | ||
| Container Loading | 20GP:6 units, 40HQ: 14 Units | |||
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |||
BIGLUX can offer you professional and practiced solar lighting tower, mobile surveillance trailer, trailer parts and telescopic mast , we have strict quality control of the material and production process to ensure our product quality. If you are interested in our product or any questions about solar light tower, solar surveillance trailer, please feel free to call us by +86 188 1878 5601.

BIGLUX is proud of supplying lighting tower with solar trailer for world cup 2022 in Qatar Khalifa Interational Stadium
