A mobile solar surveillance tower trailer is a portable and rapidly deployable device that provides a strategic advantage point for security and surveillance purposes. It can be equipped with different devices, such as cameras, radars, and led lights, to monitor and protect large areas from criminal activities, crowd disturbances, or natural disasters. It has a backup gasoline generator which ensures that the tower can operate continuously even in continuous cloudy or rainy days in remote locations or power outages. Mobile Hybrid System Solar Generator Trailers are used widely, such as military, law enforcement, and emergency response agencies to enhance their situational awareness and deterrence capabilities.
Datas of Hybrid System Solar Generator Trailer
| Brand Name | BIGLUX |
| Model Number | BL3P-G7MHS |
| Solar Panel Type | Monocrystalline Silicon; drawer design, can be pull out and in easily |
| Battery Type | Lead-Acid (lithium available) |
| Solar Panel | 3pcs 435W, LONGi brand |
| Battery | 6pcs 150Ah, DC12V, 10800WH |
| Controller | 60A MPPT, 95% Efficiency |
| Backup Generator | 3KW gasoline generator, 45L, with hybrid system and charger |
| Inverter | Optional (3KW inverter with input plug and output socket) |
| Output socket | optional (2* 110V/230V socket on the trailer body) |
| Mast | 5 section, 8.5 meter telescopic mast, Electric lifting |
| Mounting Box | Prepared, easy for your camera connection |
| Cameras | Optional (for example 2pcs PTZ dome; or 1PTZ dome and 2 bullet) |
| Spring Cables | 2 cat6 + 2 pair of power cables |
| NVR | Optional, NVR with HDD; 4G router available too. |
| LED Light | Optional (2*100W led light for example) |
| Charging time | 6.9 hours by solar |
| Running time | The full charged batteries can surpport 72 hours for 120W |
| Trailer | US AU and EU standard with single axle, 4 outriggers, Ball hitch, 15 inch tyres |

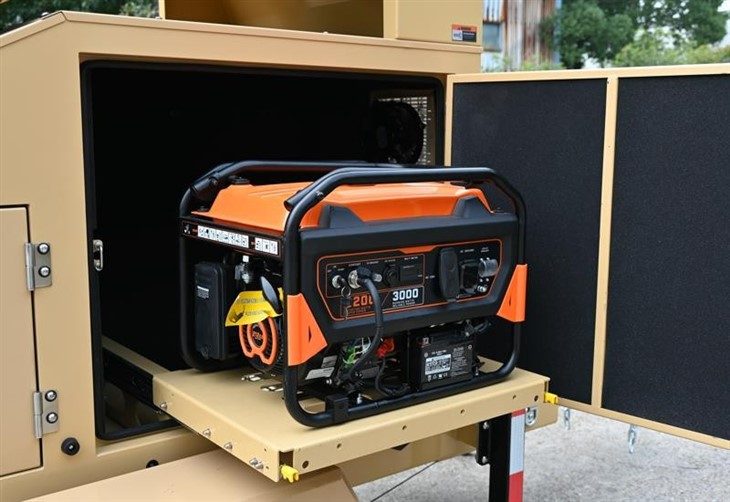

The good sliders help the generator be pulling in and out easily. There is a separate space on the trailer for the generator, as well as a fans.
Some industry news on new energy and photovoltaics for reference:
Bahrain's largest solar power plant will come online by the end of this year, making Khalifa..., the Gulf Daily News reported on May 29. Ben. Salman Port (KBSP) to become the first energy self-sufficient port in the Gulf region.
The $10 million plant will have an annual capacity of 18.5 gigawatts of electricity.
It is powered by 20,000 solar photovoltaic panels installed on the roofs of KBSP's four warehouses, covering a total area of more than 71,000 square meters.
This project will help reduce KBSP's carbon emissions by 65%.
On May 29, 2011, CEC signed the EPC contract with Tanzania National Electricity Corporation TANESCO for the Shinyanga PV project.
The project is located in Shinyanga City, Shinyanga Province, Tanzania, with a total installed capacity of 50MW, and is the largest single capacity PV project in Tanzania, which is a milestone to promote the diversification of Tanzania's power structure and the development of local clean energy industry.
The construction includes: project survey and design, equipment procurement and transportation, civil construction and installation of the PV field, 220kV booster station and transmission line. The project will be connected to the local power grid, which will effectively alleviate the power shortage in northwestern Tanzania, improve residents' electricity consumption and quality of life, and promote local economic development.
Sinianga PV project is CEC's second PV project in Tasmania, and the largest PV project in the region. CEC will give full play to its advantages, continue to help Tanzania's energy transition and the realization of the "double carbon" goal, contribute to local infrastructure construction and economic and social development, and write a new chapter for Sino-Tanzania friendship.
The PV industry has a bright future; Biglux's portable PV products offer more flexible applications.
If more details about the Hybrid System Solar Generator Trailer, please feel free to contact us.
